Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20271AC20

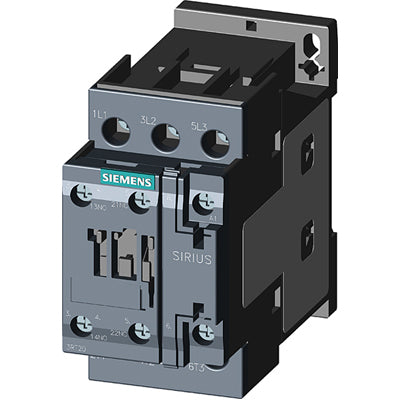

3RT20271AC20 is a Siemens 3-pole IEC motor contactor designed for motor control applications with a 32 ampere rating and 24V AC coil voltage.This Siemens Sirius contactor features a 3-phase design with a 32A operational current rating, suitable for switching motors up to 15 kW at 400V. It has a compact S0 frame size, screw terminal connections, and includes auxiliary contacts (1 NO + 1 NC). The contactor is IEC, UL, and CSA certified, ensuring reliable performance and safety compliance.
- Amperage: 32 A
- Voltage: 24 V AC coil voltage
- Poles: 3-pole
- Frame Size: S0
- Power Rating: 15 kW at 400 V
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting Type: Screw terminal
- Certifications: IEC, UL, CSA
- Application: Motor control
- Operating Frequency: 50/60 Hz
Specifications
- Part Number: 3RT20271AC20
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
- Family : 3RT2
Product Data
- UPC : 066264391567
- GTIN : 00662643915679
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.154 inch
- Weight : 0.917 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
