Description
3RT20261AM20

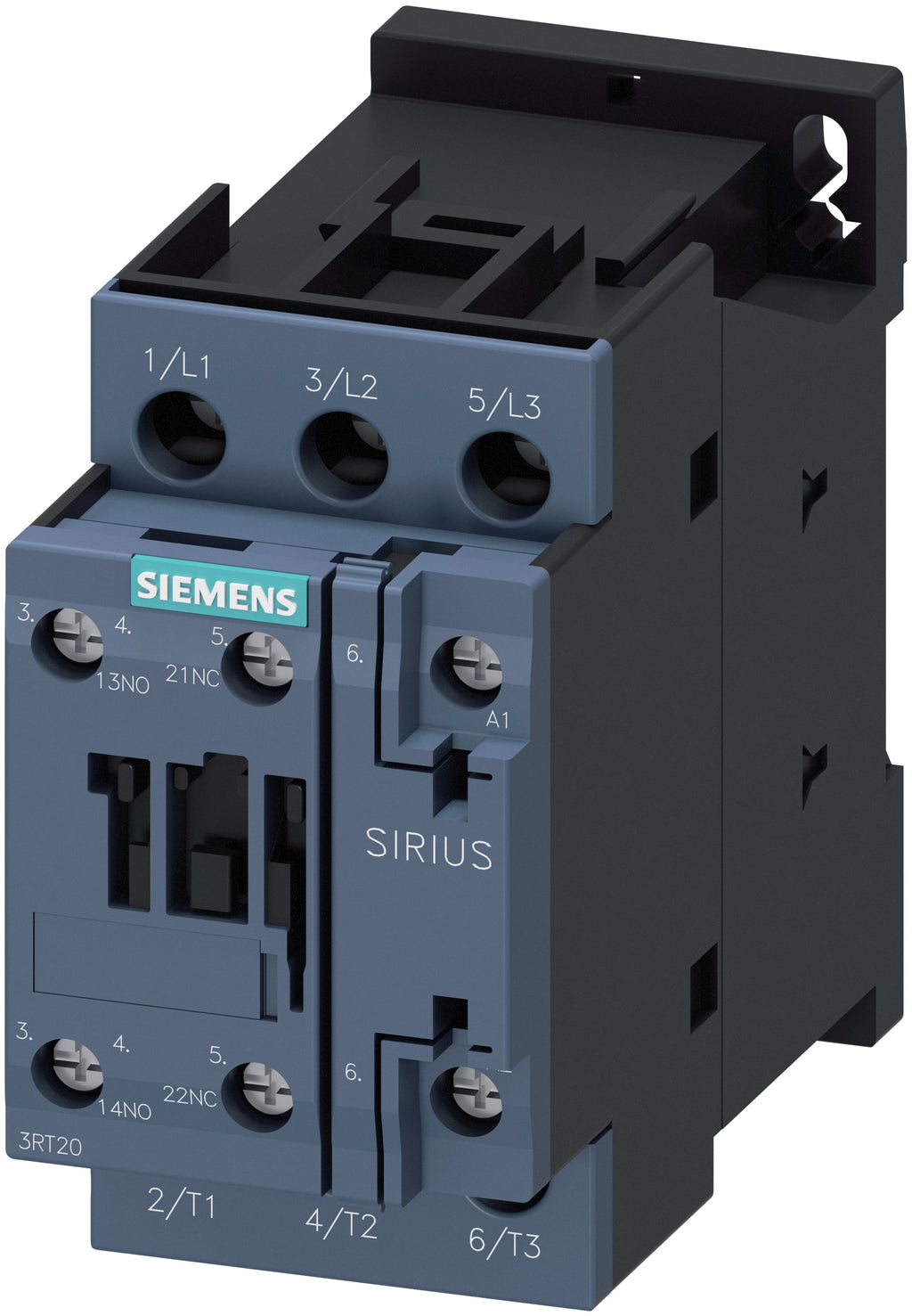

3RT20261AM20 is a Siemens SIRIUS power contactor designed for motor control applications with a 208 V AC coil and 25 A maximum load current.
This 3-pole contactor features a size S0 frame, supports up to 11 kW at 400 V, and operates at 50/60 Hz frequency. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, screw terminal connections, and is suitable for DIN rail or vertical mounting. The contactor offers a coil power rating of 8.5/10.5/79/81 VA and is rated for AC-3 utilization category. It is built for durability with 10,000,000 operating cycles and an operating temperature range from -25 to 60 degrees Celsius.
- Manufacturer: Siemens
- Part Number: 3RT20261AM20
- Poles: 3
- Frame Size: S0
- Rated Current: 25 A
- Coil Voltage: 208 V AC, 50/60 Hz
- Power Rating: 11 kW at 400 V
- Auxiliary Contacts: 1 NO + 1 NC
- Terminal Type: Screw Terminal
- Mounting: DIN Rail / Vertical Mount
- Operating Cycles: 10,000,000
- Operating Temperature: -25 to 60 °C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT20261AM20
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
Product Data
- UPC : 887621774035
- GTIN : 00887621774035
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.154 inch
- Weight : 0.919
