Description
3RT20261AG20

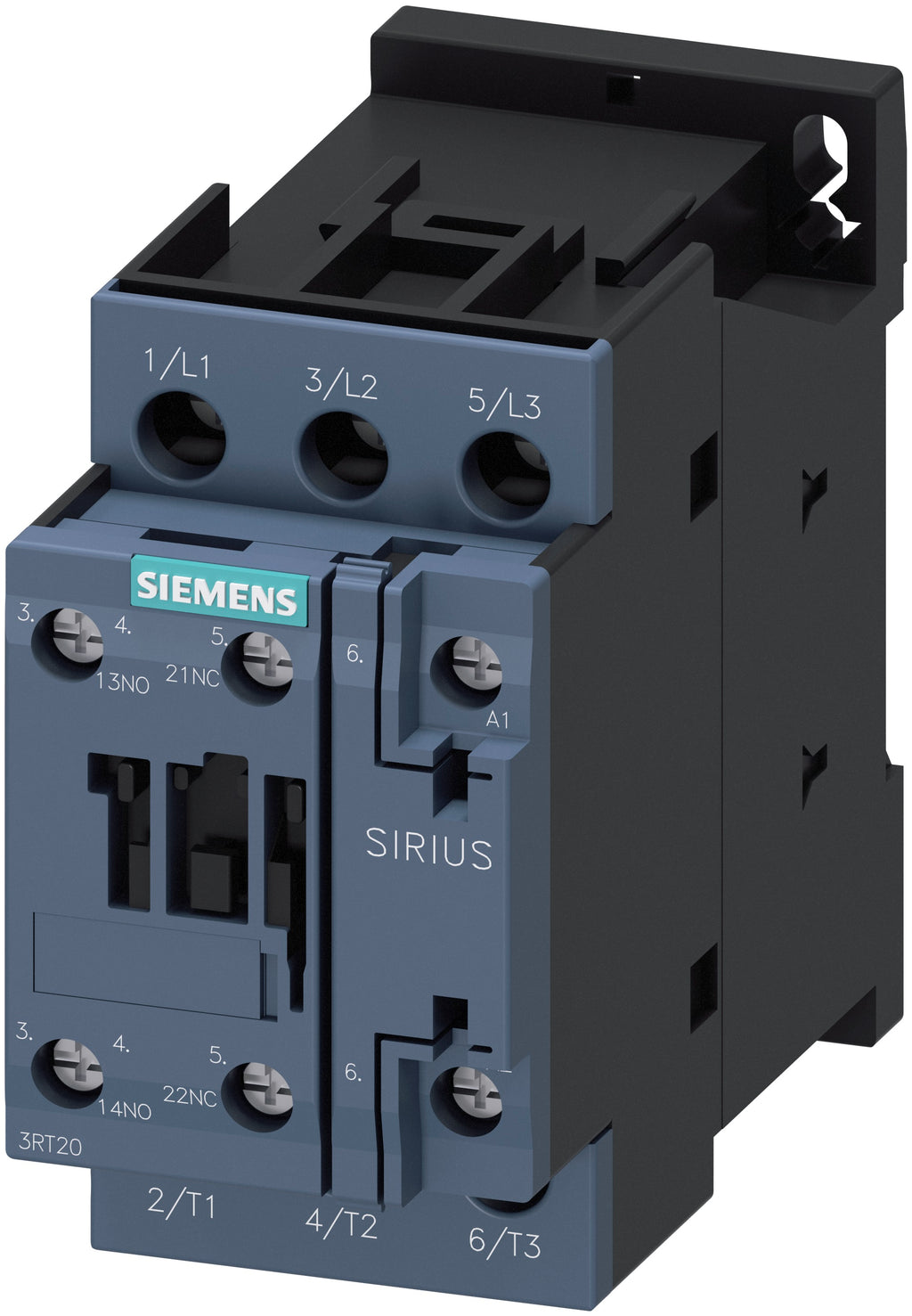

3RT20261AG20 is a Siemens 3-pole motor contactor designed for controlling electric motors with a 110V AC coil voltage and 25A current rating. It is part of the Siemens SIRIUS modular system and conforms to IEC standards.This power contactor features a 3-pole main current circuit with 3 normally open contacts, suitable for motor control applications up to 7.5 HP at 230V and 15 HP at 460V. It supports vertical mounting and includes auxiliary contacts (1NO/1NC) for additional control functions. The device is UL, CSA, CE, EAC, CCC, and C-TICK certified, ensuring compliance with international safety and performance standards.
- Key Specifications
- Manufacturer: Siemens
- Part Number: 3RT20261AG20
- Poles: 3
- Current Rating: 25 Amps
- Coil Voltage: 110V AC at 50/60 Hz
- Mounting Type: Vertical
- Auxiliary Contacts: 1NO/1NC
- Interrupt Rating: IEC 60946 compliant
- Series/Frame: SIRIUS 3RT2
- Certifications: UL, CSA, CE, EAC, CCC, C-TICK
- Horsepower Ratings: 7.5 HP at 230V, 15 HP at 460V
Specifications
- Part Number: 3RT20261AG20
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
Product Data
- UPC : 066264391364
- GTIN : 00662643913644
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.154 inch
- Weight : 0.917 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
