3RT20261AC20 - Siemens 25A 3-Pole Motor Contactor 24V AC Coil S0 Frame IEC Rated

3RT20261AC20

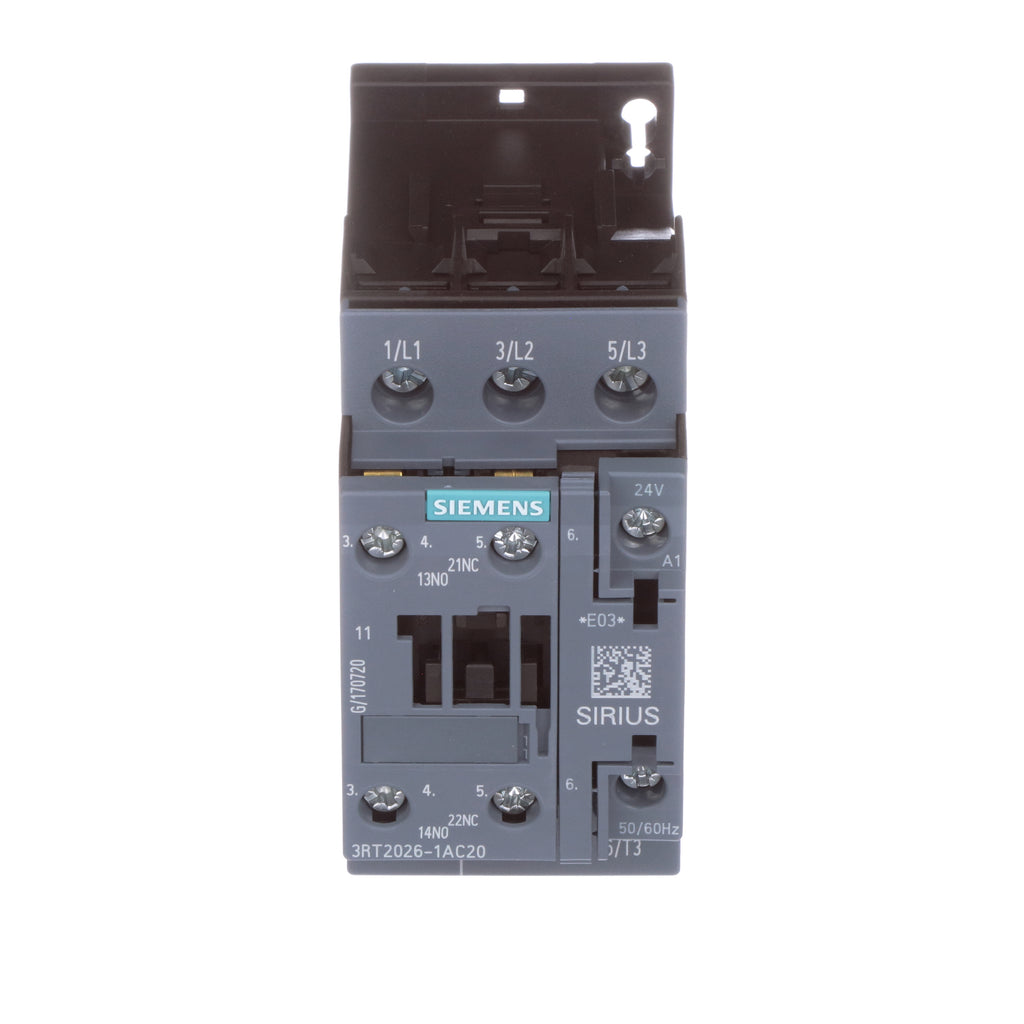

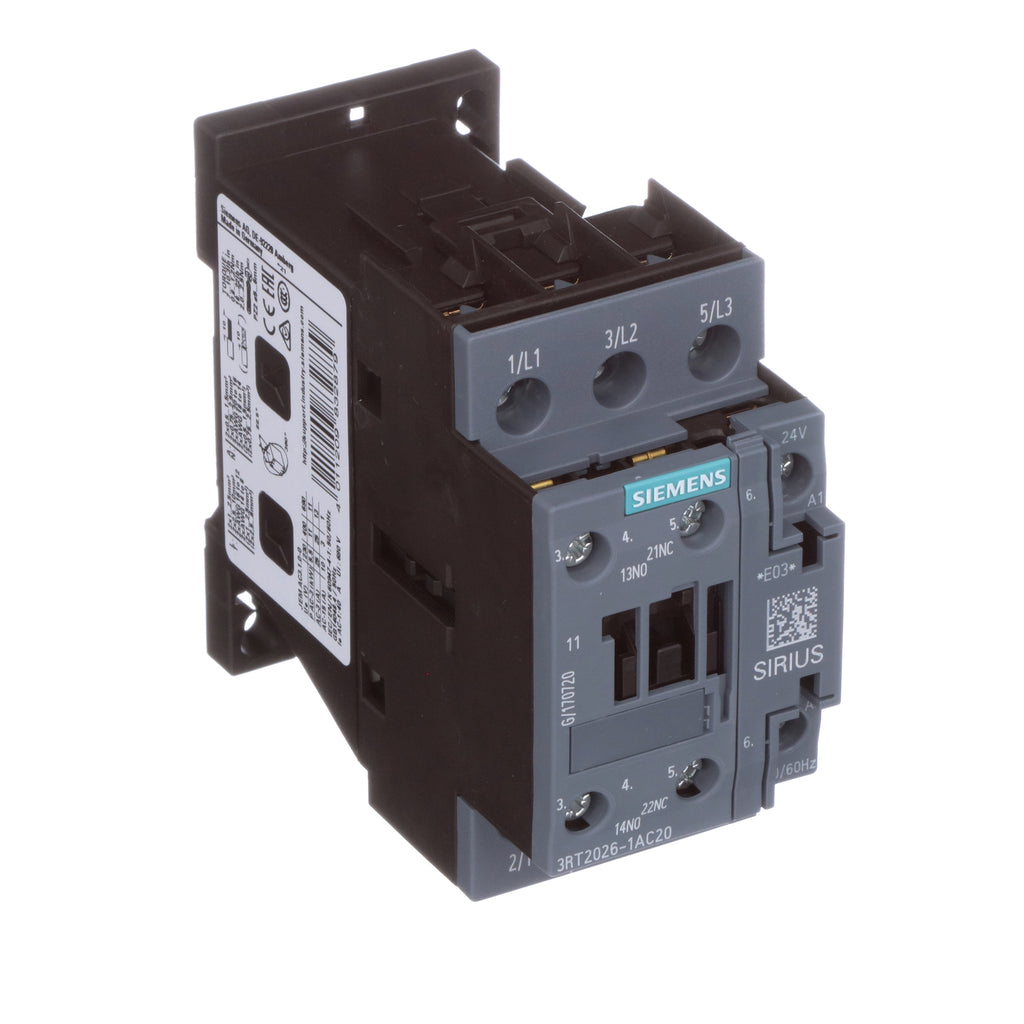

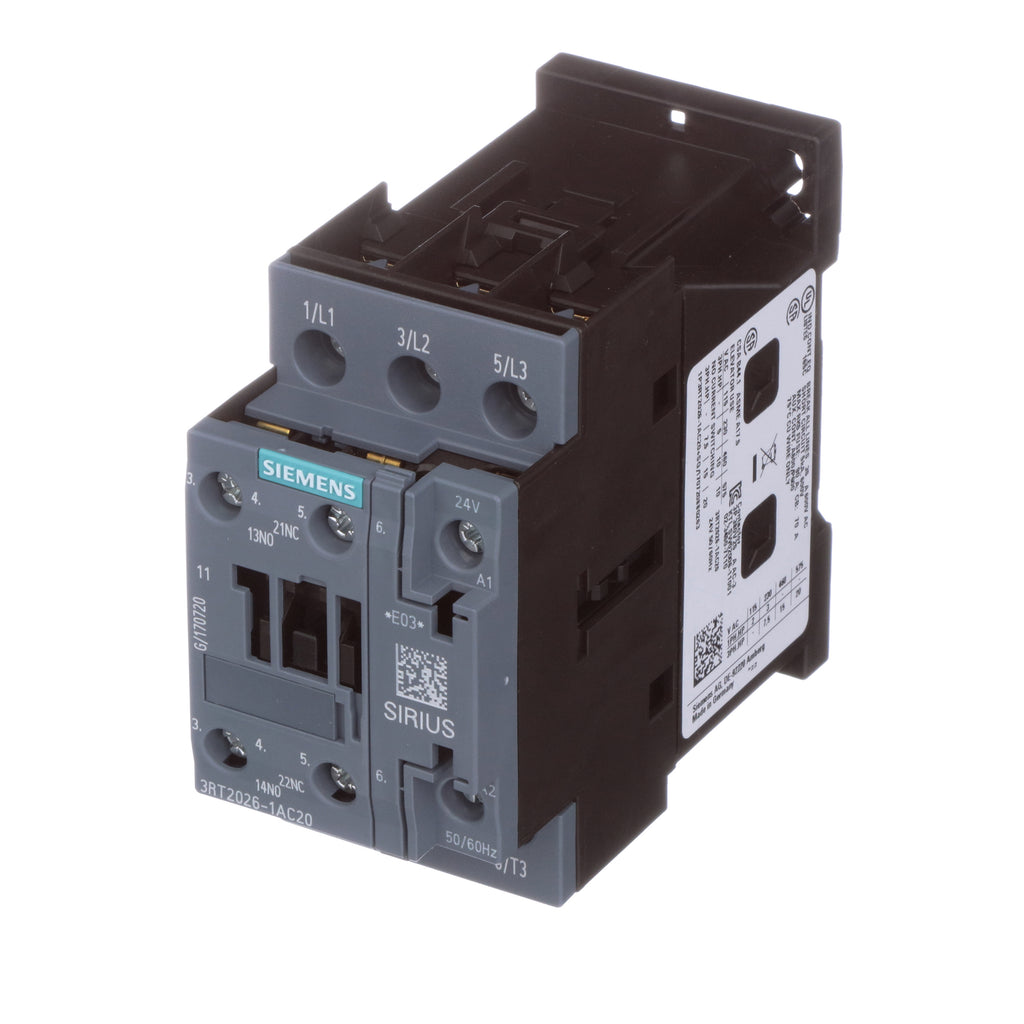

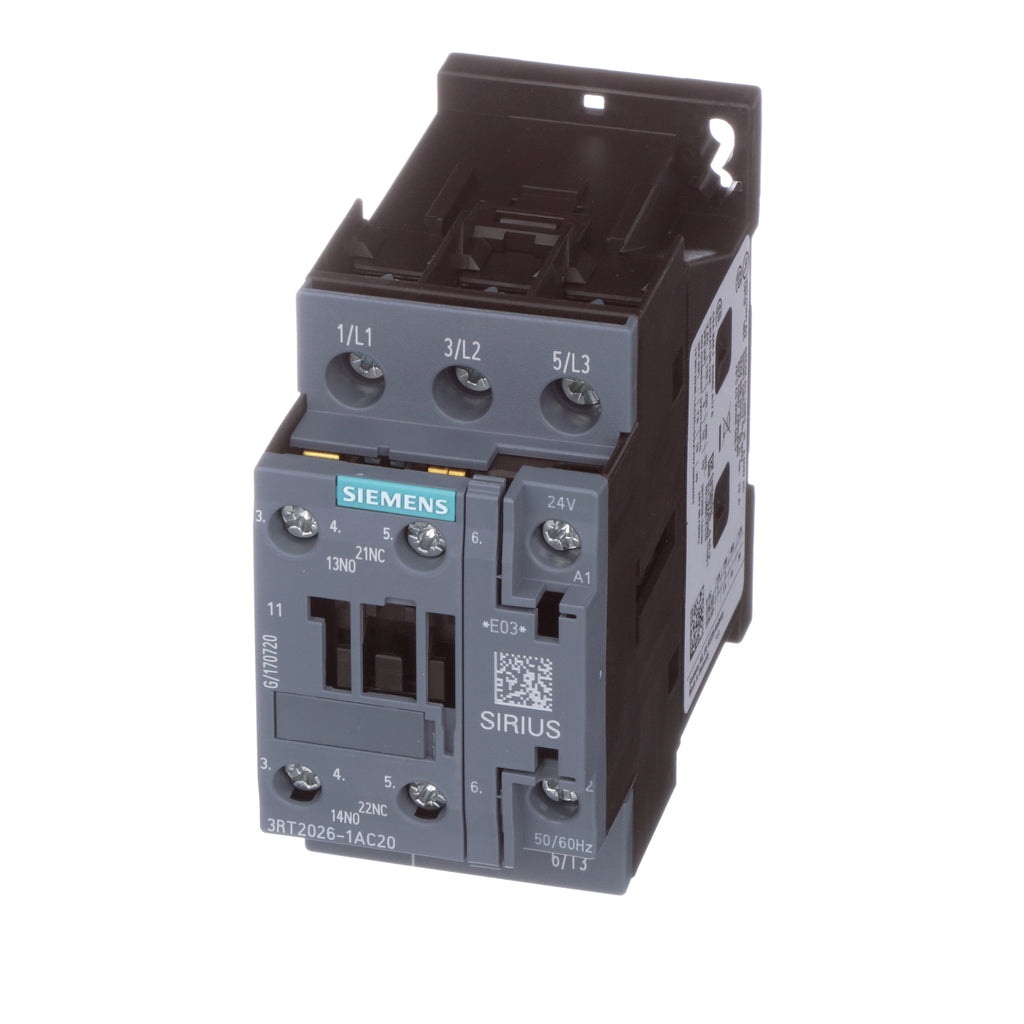

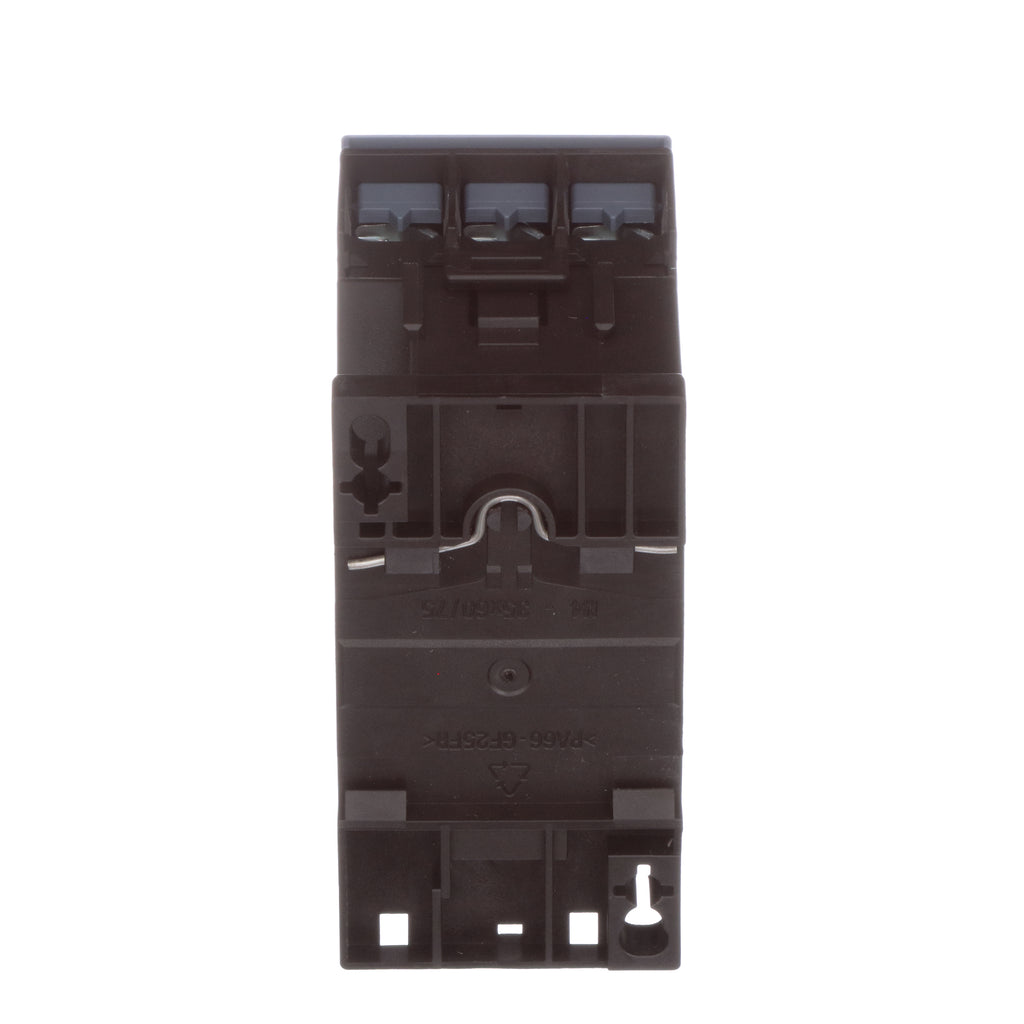

3RT20261AC20 is a Siemens Sirius 3-pole motor contactor designed for controlling electric motors with a 24V AC coil and 25 ampere rating.This IEC rated contactor features a 3-pole configuration with 1 normally open and 1 normally closed auxiliary contact, suitable for 7.5 HP at 230V and 15 HP at 460V three-phase motors. It has an S0 frame size, IP20 enclosure, screw terminal connections, and supports DIN rail, snap-on, or threaded mounting. The coil power rating is approximately 8.5/10.5 VA holding/pickup at 50/60 Hz. It is certified to UL, CSA, CE, EAC, CCC, and C-TICK standards and operates reliably in temperatures from -25°C to +60°C.

Key Specifications
• Amperage: 25 A
• Voltage: 24 V AC coil
• Poles: 3
• Frame Size: S0
• Horsepower Rating: 7.5 HP @ 230 V, 15 HP @ 460 V (3-phase)
• Auxiliary Contacts: 1 NO / 1 NC
• Mounting Type: DIN rail, snap-on, threaded
• Enclosure: IP20
• Coil Power Rating: 8.5/10.5 VA (holding/pickup)
• Certifications: UL, CSA, CE, EAC, CCC, C-TICK
• Operating Temperature: -25°C to +60°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20261AC20
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactors
• Section : Contactors

Product Data

• UPC : 066264391361
• GTIN : 00662643913613
• Country of Origin : Germany
• Dimensions : 3.622 x 2.126 x 4.154 inch
• Weight : 0.904 lb
• Certification : REACH Art 33, WEEE (2012/19/EU)
