Description

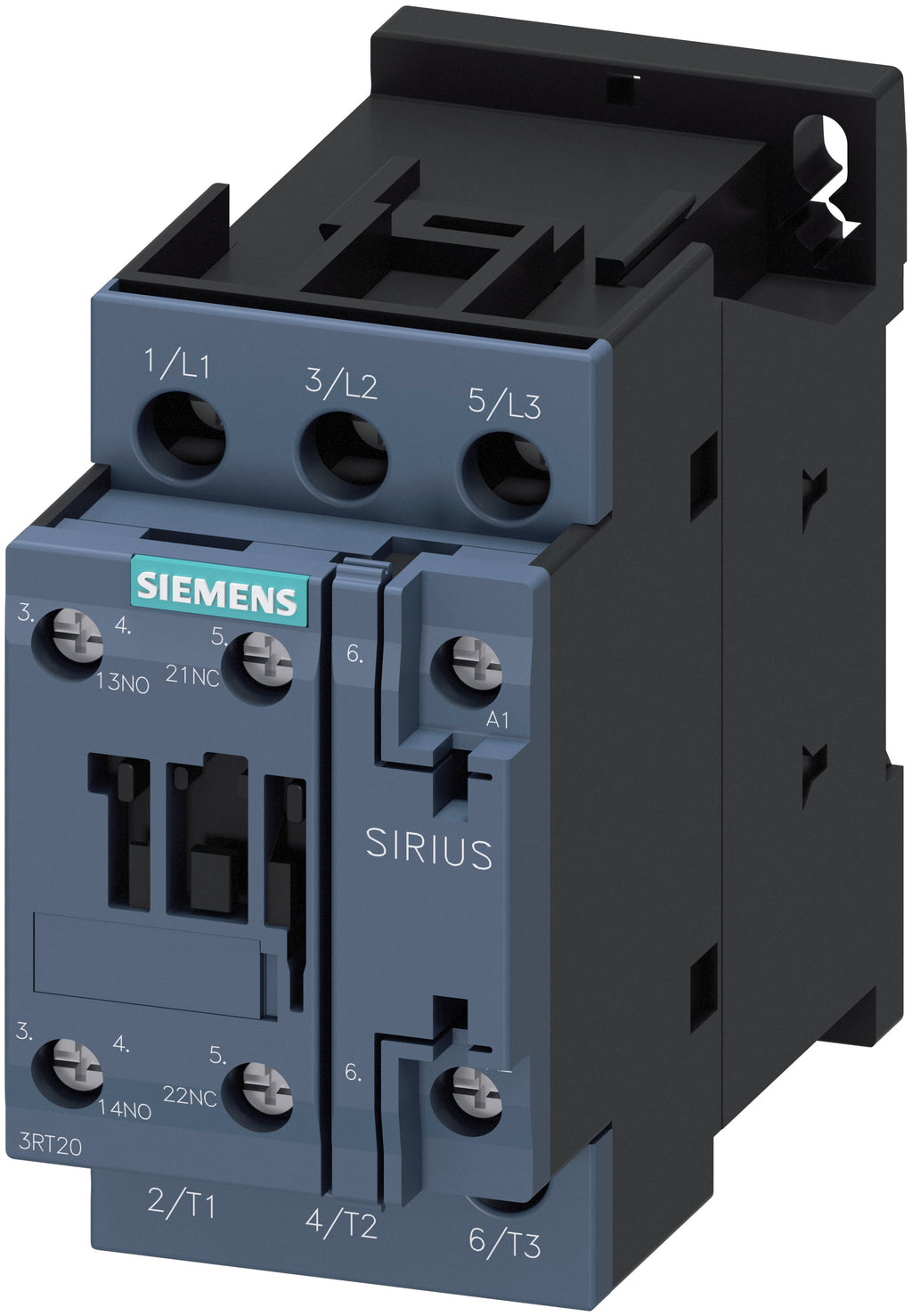

3RT20261AB00
3RT20261AB00 is a Siemens 3-pole IEC power contactor with a 25 ampere rating and a 24 VAC coil designed for motor control applications.3RT20261AB00 features a Size S0 frame, 1NO-1NC auxiliary contacts, and supports up to 11 kW at 400 V AC. It is suitable for DIN rail or vertical mounting with screw terminals and operates reliably in temperatures from -25 to 60 degrees Celsius.
- Key Specifications
- Amperage: 25 A
- Voltage: 24 V AC coil
- Poles: 3
- Frame Size: S0
- Contact Configuration: 1NO-1NC auxiliary contacts
- Power Rating: 11 kW at 400 V AC
- Mounting Type: 35 mm DIN rail or vertical mount
- Terminal Type: Screw terminals
- Operating Temperature: -25 to 60 °C
- Standards: IEC compliant
Specifications
- Part Number: 3RT20261AB00
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
Product Data
- UPC : 066264391359
- GTIN : 00662643913590
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.154 inch
- Weight : 0.906
- Certification : REACH Art 33, WEEE (2012/19/EU)
