Description

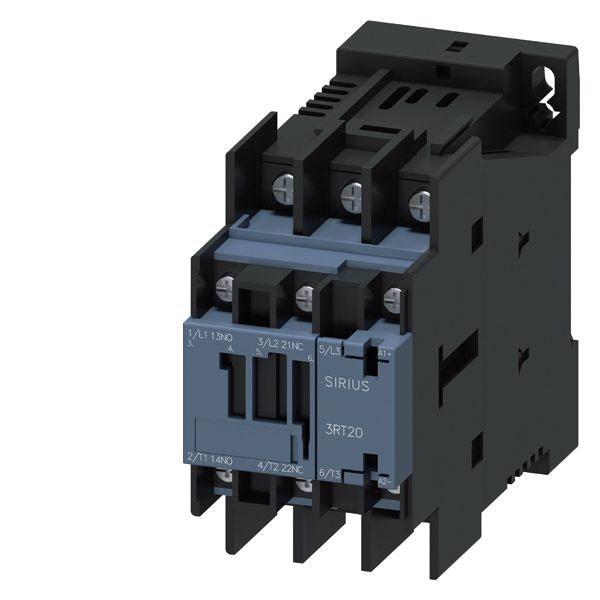

3RT2026-4VB40
3RT2026-4VB40 is a Siemens Sirius 3-pole, 3-phase contactor designed for motor control applications with a 24V DC coil voltage.
This contactor features a 25 ampere current rating and is rated for voltages up to 690 volts AC. It includes one normally open (NO) and one normally closed (NC) auxiliary contact. The device is suitable for switching motors and other loads in industrial environments, conforming to IEC standards. It offers reliable performance with a mechanical operating life of up to 10 million cycles and an impulse voltage resistance of 6 kV.
- Manufacturer: Siemens
- Series: Sirius
- Poles: 3
- Current Rating: 25 A
- Voltage Rating: 690 V AC
- Control Coil Voltage: 24 V DC
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting Type: Screw Terminal
- Mechanical Operating Cycles: 10,000,000
- Impulse Voltage Resistance: 6 kV
- Compliance: IEC standards
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT2026-4VB40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- UPC : 004089295869
- GTIN : 00040892958690
- Weight : 1
