Description

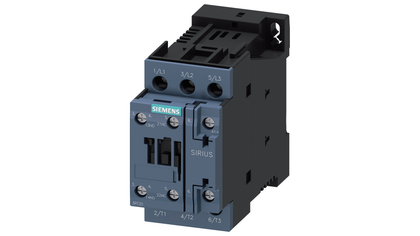

3RT2026-2KG40
3RT2026-2KG40 is a Siemens SIRIUS 3RT2 series power contactor designed for reliable motor control applications. This 3-pole contactor features a 125 V DC coil, 25 A current rating, and is rated for 11 kW at 400 V. It includes 1 NO + 1 NC auxiliary contacts and is equipped with spring-loaded terminals for secure wiring connections. The compact S0 frame size makes it suitable for a wide range of industrial control panels and motor starting duties. This contactor is engineered for AC-3e/AC-3 duty and is compatible with standard mounting configurations. It features a built-in varistor for coil protection, enhancing reliability in demanding environments. The spring-loaded terminal design simplifies installation and ensures vibration-resistant connections, ideal for use with PLC outputs and control circuits.
- Manufacturer: Siemens
- Part Number: 3RT2026-2KG40
- Series: SIRIUS 3RT2
- Frame Size: S0
- Number of Poles: 3
- Rated Current: 25 A
- Coil Voltage: 125 V DC
- Rated Power: 11 kW / 400 V
- Auxiliary Contacts: 1 NO + 1 NC
- Terminal Type: Spring-Loaded
- Application: AC-3e/AC-3 Motor Control
- Mounting: Standard DIN Rail
Specifications
- Part Number: 3RT2026-2KG40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 125
- Coil Voltage Minimum : 125
Product Data
- UPC : 782634507352
- GTIN : 00782634507352
- Weight : 1
