Description
3RT2026-2AN20

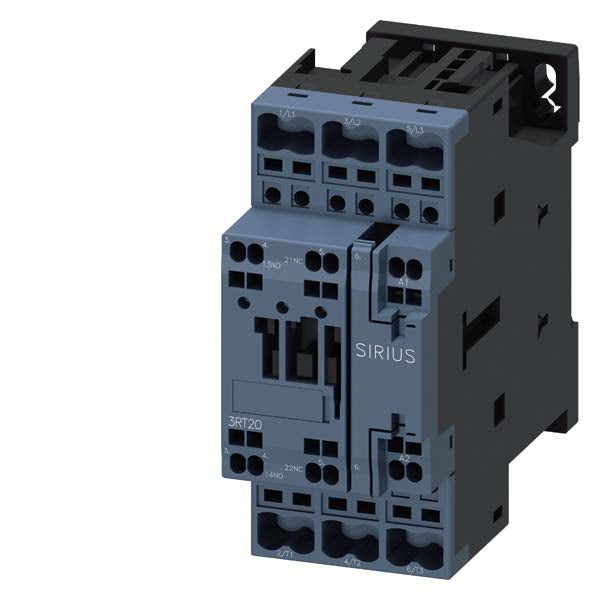

3RT2026-2AN20 is a Siemens AC-3 power contactor designed for motor control applications.This 3-pole contactor features a 25 ampere rating and supports motor loads up to 11 kW at 400 V. It operates on 220 V AC at 50/60 Hz and includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact. The device uses spring-loaded terminals for secure wiring and is built in the compact Size S0 frame.
- Amperage: 25 A
- Poles: 3
- Voltage: 220 V AC coil, 400 V motor rating
- Frequency: 50/60 Hz
- Motor rating: 11 kW at 400 V
- Auxiliary contacts: 1 NO + 1 NC
- Mounting type: Size S0 frame
- Terminal type: Spring-loaded terminals
Specifications
- Part Number: 3RT2026-2AN20
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 220
Product Data
- UPC : 066264391404
- GTIN : 00662643914047
- Weight : 1
