Description

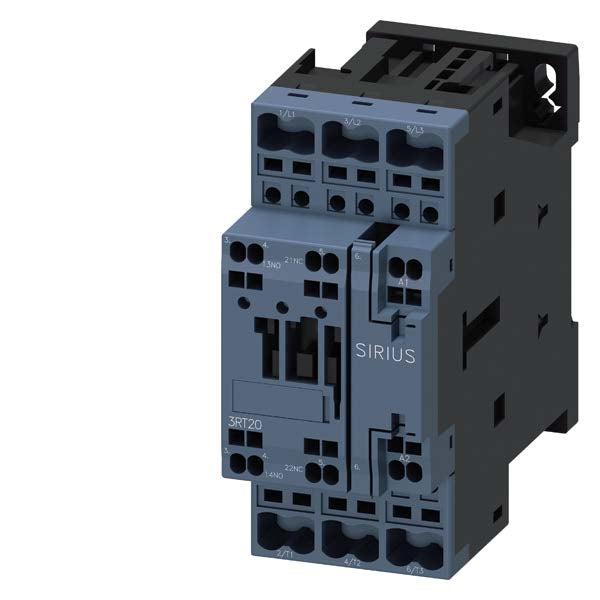

3RT2026-2AK60
3RT2026-2AK60 is a Siemens SIRIUS power contactor designed for reliable motor control applications. This 3-pole contactor features a 25A current rating and is suitable for use in 3-phase systems up to 600V. It is equipped with a 110/120V AC coil for flexible control circuit integration. The contactor is built for DIN rail mounting, making it ideal for compact control panels and industrial environments. Its spring-loaded terminals ensure secure wiring connections, and the S0 frame size provides a compact footprint for space-constrained installations. The device is rated for AC-3 duty and supports a wide operating temperature range.
- Part Number: 3RT2026-2AK60
- Manufacturer: Siemens
- Series: SIRIUS
- Frame Size: S0
- Number of Poles: 3
- Rated Current: 25A
- Rated Voltage: 600V
- Coil Voltage: 110/120V AC
- Mounting Type: DIN Rail
- Terminal Type: Spring-Loaded
- Operating Temperature: -25°C to +60°C
- IP Rating: IP20
Specifications
- Part Number: 3RT2026-2AK60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
Product Data
- UPC : 066264391400
- GTIN : 00662643914009
- Weight : 1
