Description
3RT2026-2AF00

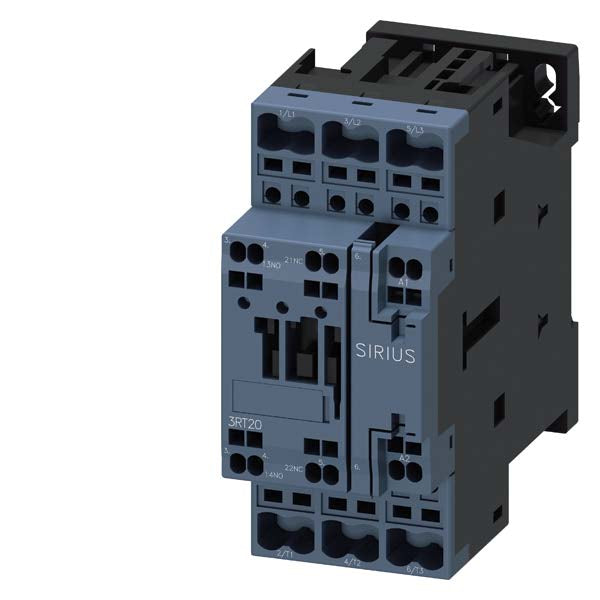

3RT2026-2AF00 is a Siemens SIRIUS 3RT2 series motor control contactor designed for reliable switching in industrial applications. This 3-pole contactor features a 110V AC coil, 25A main circuit rating, and includes 1NO+1NC auxiliary contacts for control signaling. Engineered for durability, it supports spring-loaded terminal connections and is suitable for DIN rail or vertical mounting.Engineered for demanding environments, the 3RT2026-2AF00 offers robust performance with a compact S0 frame size. It is designed for use with 400V AC systems and provides efficient switching for motor loads up to 11kW. The contactor is built for high operational reliability and easy installation in control panels.
- Manufacturer: Siemens
- Series: SIRIUS 3RT2
- Frame Size: S0
- Number of Poles: 3
- Main Circuit Amperage: 25A
- Main Circuit Voltage: 400V AC
- Coil Voltage: 110V AC, 50 Hz
- Auxiliary Contacts: 1NO + 1NC
- Mounting Type: 35 mm DIN rail or vertical
- Terminal Type: Spring-loaded
- Rated Power: 11kW at 400V
- Operating Temperature Range: -25°C to 60°C
Specifications
- Part Number: 3RT2026-2AF00
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 110
Product Data
- UPC : 066264391396
- GTIN : 00662643913965
- Weight : 1
