Description
3RT2026-2AC20

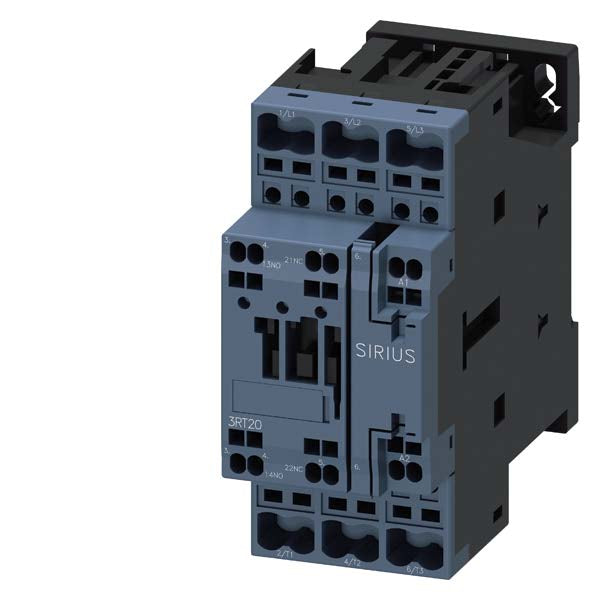

3RT2026-2AC20 is a Siemens SIRIUS power contactor designed for motor control applications.
This 3-pole IEC power contactor features a 25 ampere rating and is suitable for switching motors up to 11 kW at 400 V. It operates with a 24 V AC coil at 50/60 Hz and includes one normally open (NO) and one normally closed (NC) auxiliary contact. The contactor is built with a Size S0 frame and uses spring-type terminals for secure connections. It is designed for 35 mm DIN rail or vertical mounting and offers protection class IP20 on the front and terminals.
- Key Specifications
- Amperage: 25 A
- Poles: 3
- Frame Size: S0
- Coil Voltage: 24 V AC, 50/60 Hz
- Auxiliary Contacts: 1 NO + 1 NC
- Motor Power Rating: 11 kW at 400 V
- Mounting Type: 35 mm DIN Rail / Vertical Mount
- Connection Type: Spring Terminal
- Protection Class: IP20
- Contactor Style: IEC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RT2026-2AC20
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
Product Data
- UPC : 066264391395
- GTIN : 00662643913958
- Weight : 1
