Description
3RT2026-1NB30

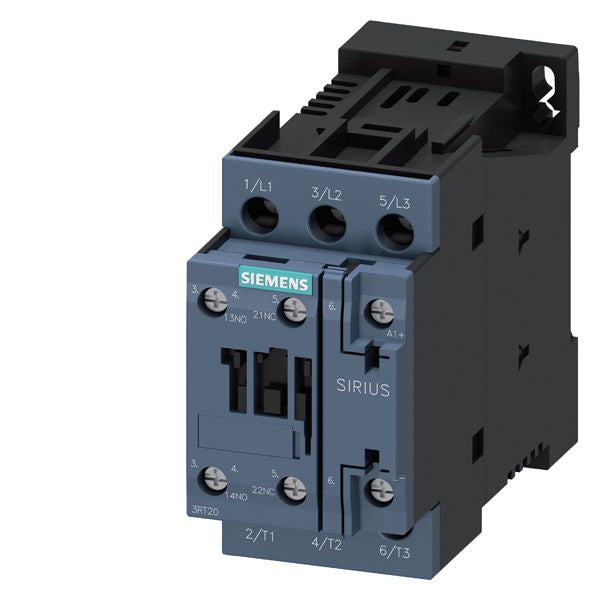

3RT2026-1NB30 is a Siemens SIRIUS power contactor designed for AC-3 duty cycle applications with a rated current of 25 amperes at 11 kilowatts and 400 volts. This industrial-grade contactor features a 3-pole configuration with screw terminal connections and is suitable for motor control and power distribution applications. The unit operates with a coil voltage range of 21 to 28 volts AC or DC at 50/60 Hz, includes integrated varistor protection, and provides auxiliary contacts configured as 1 NO (normally open) and 1 NC (normally closed) for enhanced control flexibility. Maximum switching voltage is rated at 690 VAC, and the contactor operates reliably across an operating temperature range of -25 degrees Celsius to 60 degrees Celsius.
- Rated Current: 25 A
- Rated Power: 11 kW at 400 V
- Duty Cycle: AC-3
- Poles: 3-pole
- Coil Voltage: 21-28 V AC/DC
- Frequency: 50/60 Hz
- Auxiliary Contacts: 1 NO + 1 NC
- Maximum Switching Voltage: 690 VAC
- Operating Temperature: -25 to 60 degrees Celsius
- Termination: Screw Terminal
- Features: Integrated Varistor
- Size: S0
Specifications
- Part Number: 3RT2026-1NB30
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 28
- Coil Voltage Minimum : 21
Product Data
- UPC : 066264391390
- GTIN : 00662643913903
- Weight : 1
