Description
3RT2026-1FB40

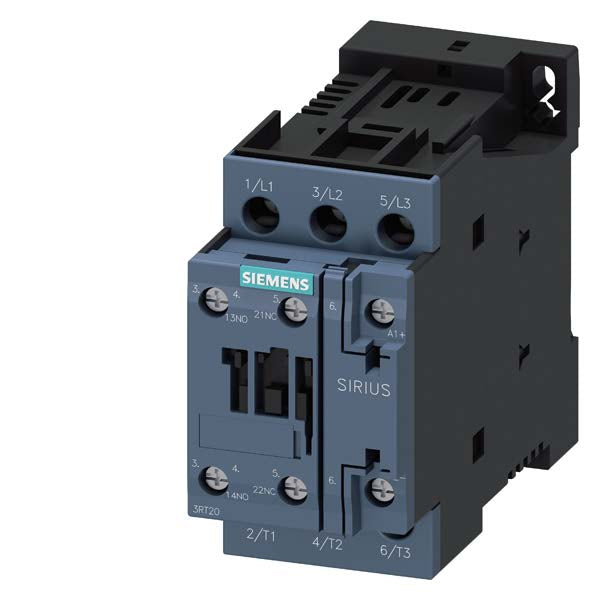

3RT2026-1FB40 is a Siemens 3-pole motor contactor designed for reliable motor control applications.This contactor features a 25 ampere rating suitable for switching motors up to 11 kW at 400 V. It operates with a 24 V DC coil voltage and includes a plugged-in diode combination for coil protection. The device has screw terminals and is designed for 35 mm DIN rail or vertical mounting. It includes auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC) for additional control circuit functionality.
- Key Specifications
- Amperage: 25 A (AC-3e/AC-3)
- Voltage: 24 V DC coil
- Poles: 3
- Motor Power Rating: 11 kW at 400 V
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting Type: 35 mm DIN rail / vertical mount
- Connection Type: Screw terminals
- Coil Protection: Plugged-in diode combination
- Series/Frame: Size S0
- Part Number: 3RT2026-1FB40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- UPC : 066264391387
- GTIN : 00662643913873
- Weight : 1
