Description
3RT2026-1BB44

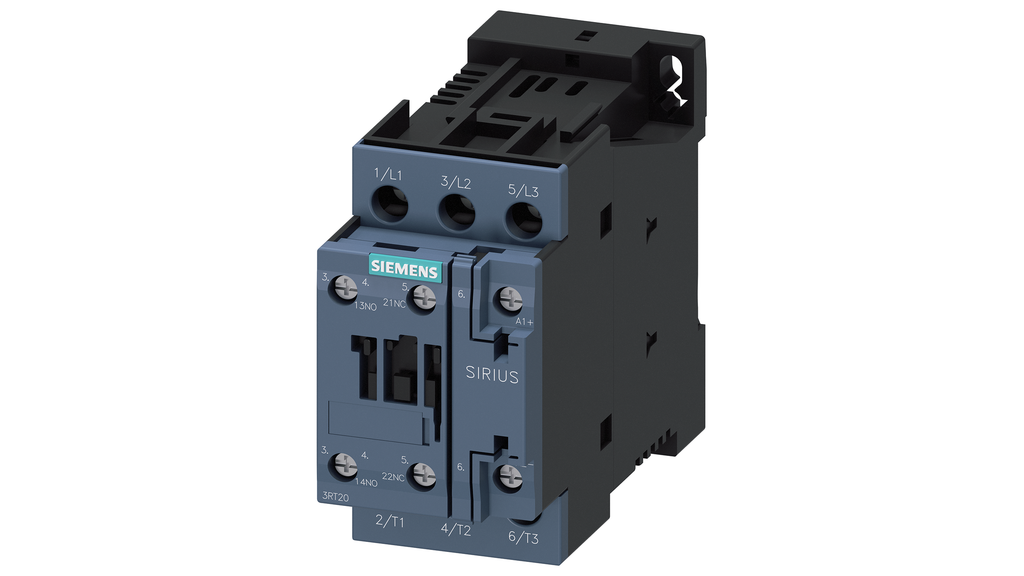

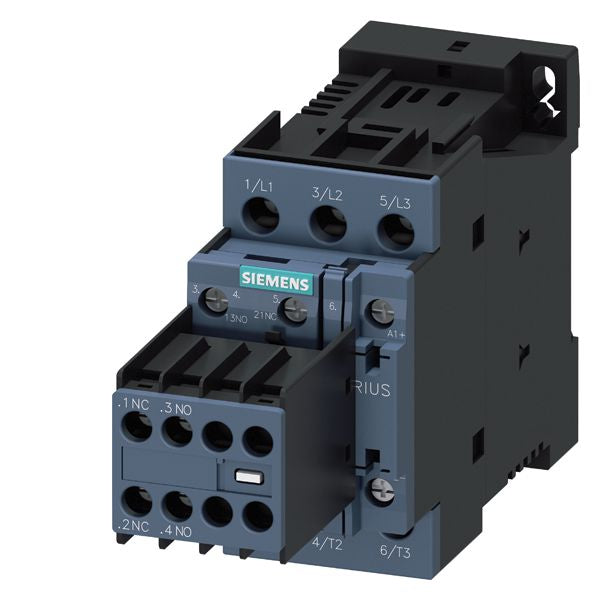

3RT2026-1BB44 is a Siemens SIRIUS motor power contactor designed for reliable switching and control of three-phase AC motors in industrial applications. This contactor features a 24 VDC control coil, 25 A rated current, and is rated for 11 kW at 400 V. It is built with a compact S0 frame and is suitable for DIN rail or vertical mounting, making it ideal for space-constrained environments. The contactor includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, providing flexible control options. It features screw terminals for secure wiring connections and a removable auxiliary switch for easy maintenance. The device is designed for AC-3 and AC-3e duty, ensuring robust performance in motor control circuits.
- Manufacturer: Siemens
- Series: SIRIUS
- Frame Size: S0
- Rated Current: 25 A
- Rated Voltage: 400 V AC
- Control Voltage: 24 VDC
- Poles: 3
- Mounting Type: 35 mm DIN Rail / Vertical
- Terminal Type: Screw Terminal
- Auxiliary Contacts: 2NO + 2NC
- Duty Type: AC-3, AC-3e
- Removable Auxiliary Switch
Specifications
- Part Number: 3RT2026-1BB44
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
Product Data
- UPC : 066264391380
- GTIN : 00662643913804
- Weight : 1
