Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20251AK60

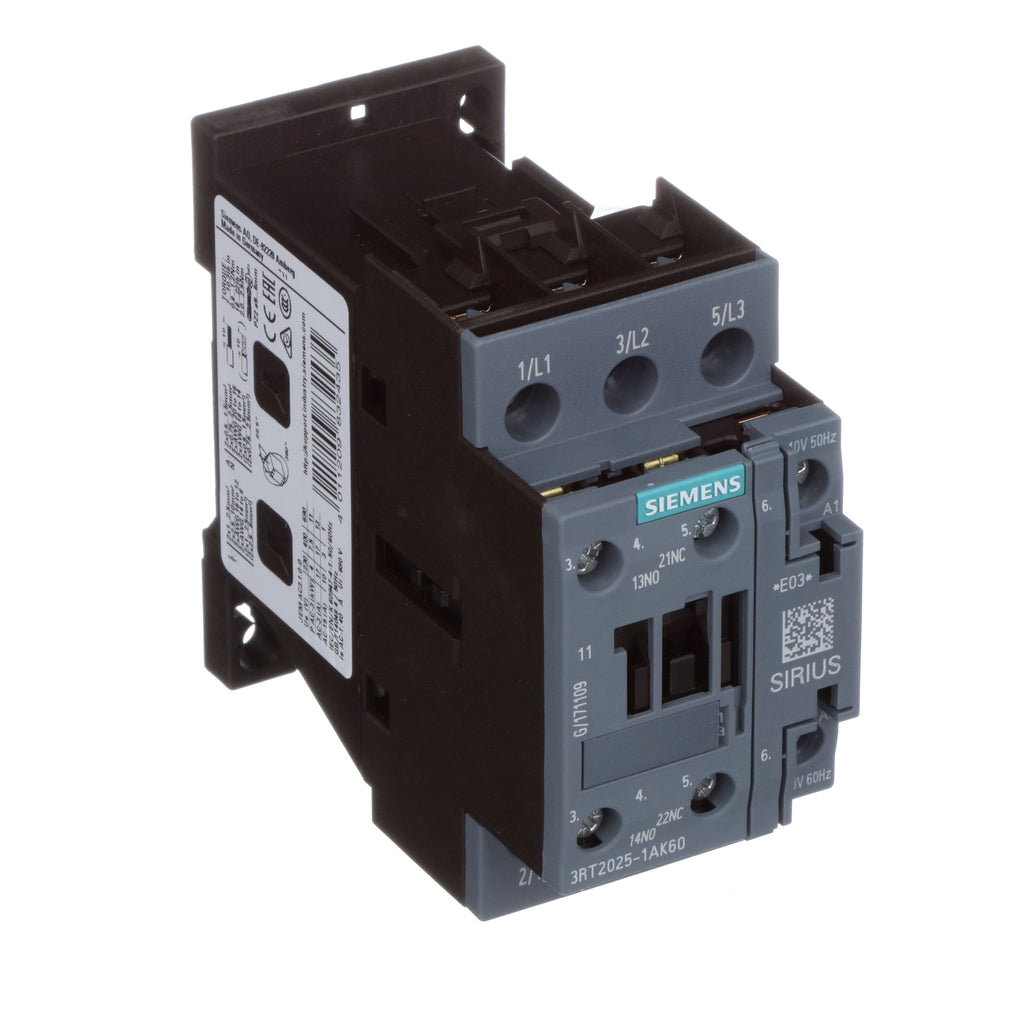

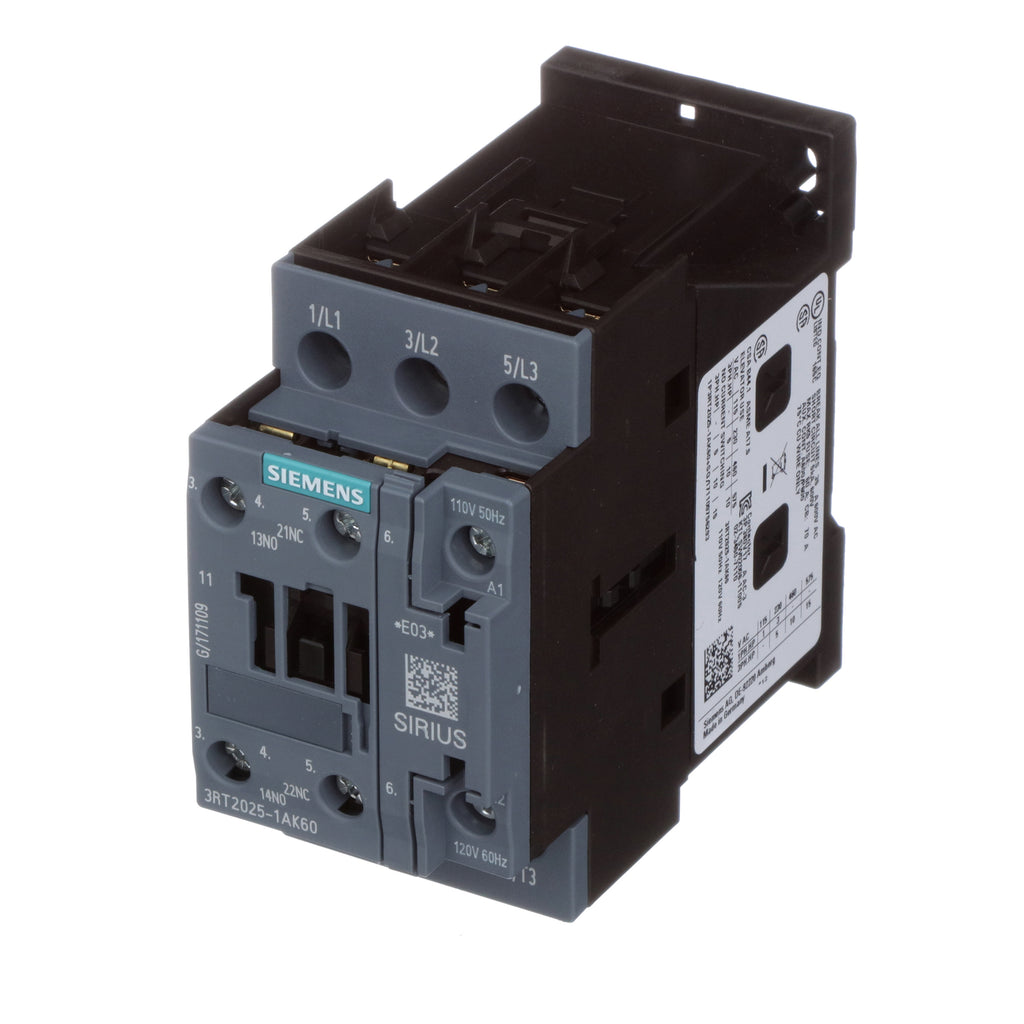

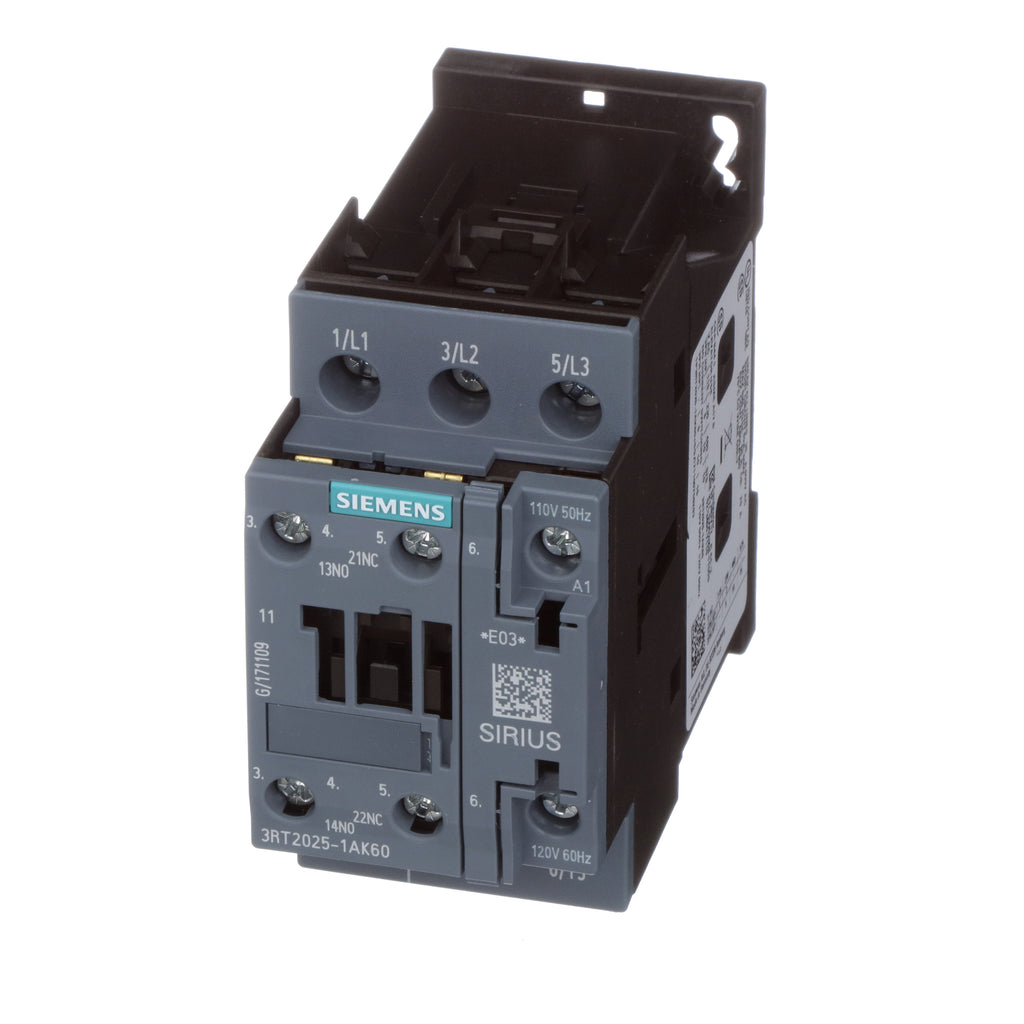

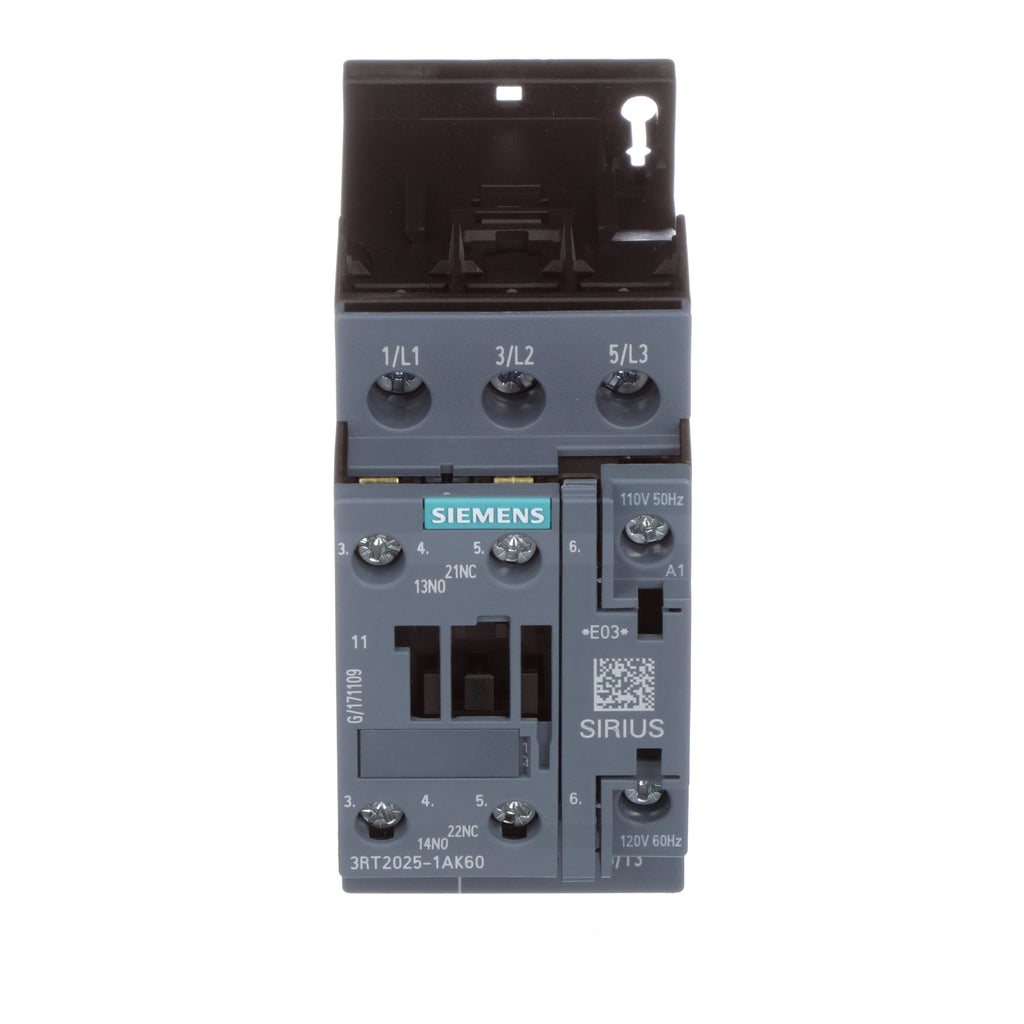

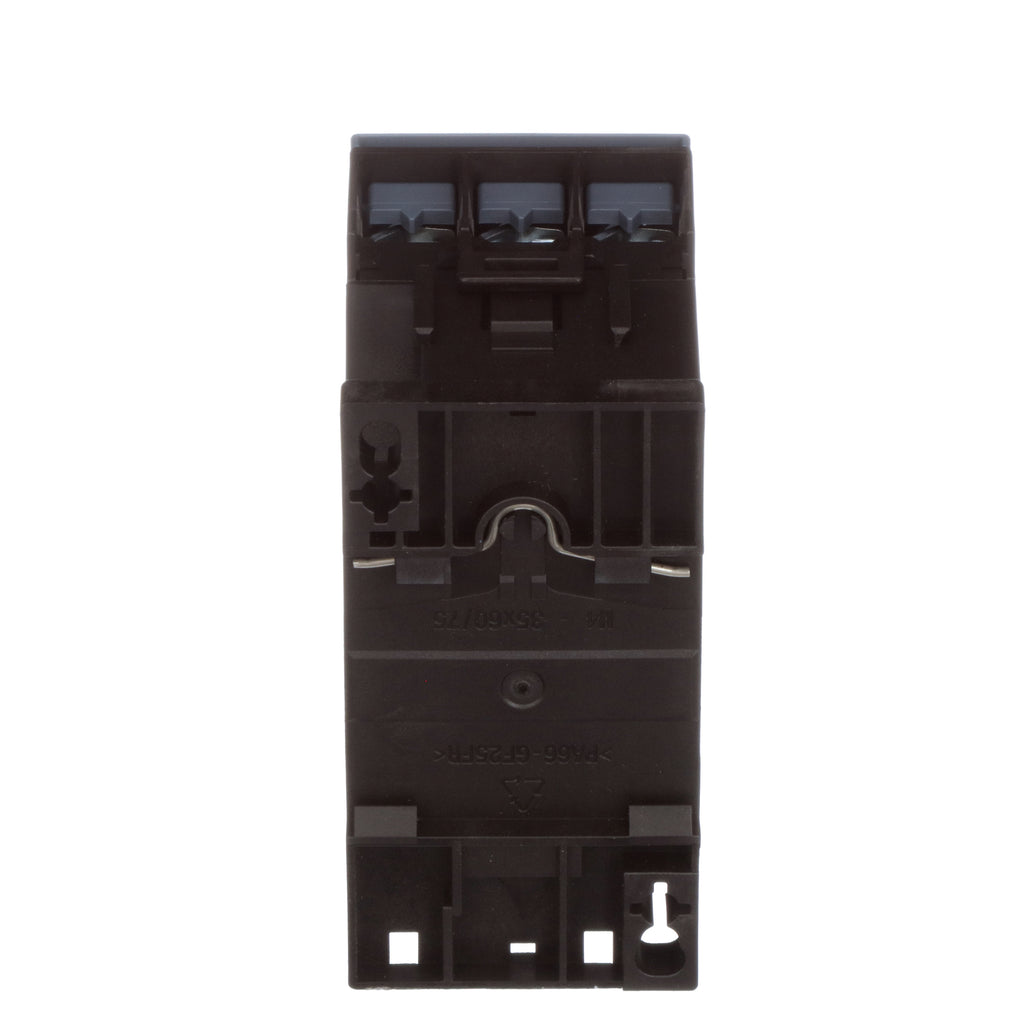

3RT20251AK60 is a Siemens 3-pole power contactor designed for motor control applications with a 17 amp rating and 400 volt AC operation.This power contactor features a 3-pole configuration with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, suitable for AC-3e/AC-3 utilization categories. It operates at coil voltages of 110 V AC (50 Hz) or 120 V AC (60 Hz) and includes screw terminals for secure wiring. The contactor is sized S0 and supports a rated power of 7.5 kW at 400 V. It is designed for DIN rail or threaded mounting with an IP20 enclosure rating and a high mechanical endurance of 10 million operating cycles.
- Key Specifications
- Amperage: 17 A
- Voltage: 400 V AC
- Poles: 3
- Auxiliary Contacts: 1 NO + 1 NC
- Coil Voltage: 110/120 V AC
- Mounting Type: DIN Rail / Threaded
- Frame Size: S0
- Enclosure Rating: IP20
- Rated Power: 7.5 kW at 400 V
- Terminal Type: Screw
- Operating Frequency: 50/60 Hz
- Mechanical Endurance: 10,000,000 cycles
- Part Number: 3RT20251AK60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
- UPC : 662643914238
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.154 inch
- Weight : 0.897 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
