Description

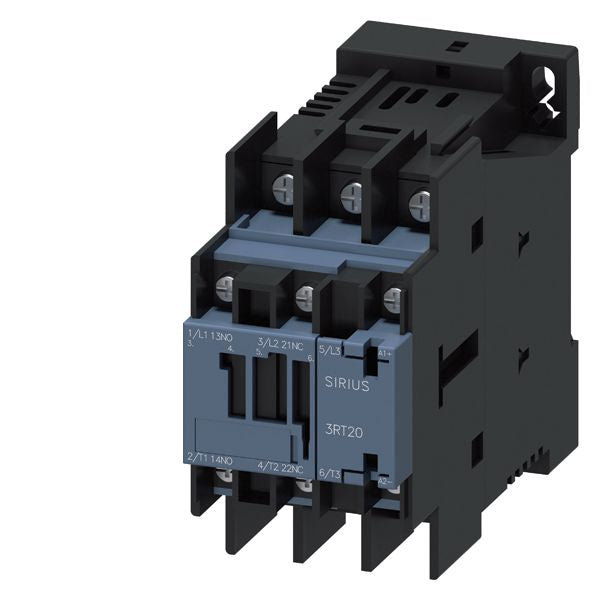

3RT2025-4KJ40
3RT2025-4KJ40 is a Siemens SIRIUS power contactor designed for AC-3e/AC-3 motor control applications with 17A rated current and 7.5 kW capacity at 400V. This 3-pole contactor features a 72V DC coil with integrated varistor protection and is rated for coupling and motor switching operations. The unit includes 1 NO and 1 NC auxiliary contacts for enhanced control flexibility and is equipped with ring cable lug connections for secure terminal attachment. Key Specifications
- Part Number: 3RT2025-4KJ40
- Manufacturer: Siemens
- Rated Current: 17A
- Power Rating: 7.5 kW at 400V
- Poles: 3-pole
- Coil Voltage: 72V DC
- Auxiliary Contacts: 1 NO + 1 NC
- Frame Size: S0
- Connection Type: Ring cable lug
- Duty: AC-3e/AC-3
- Features: Integrated varistor, plugged-in design
Specifications
- Part Number: 3RT2025-4KJ40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 16
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 72
- Coil Voltage Minimum : 72
Product Data
- UPC : 004089295908
- GTIN : 00040892959086
- Weight : 1
