Description
3RT2025-2FB40

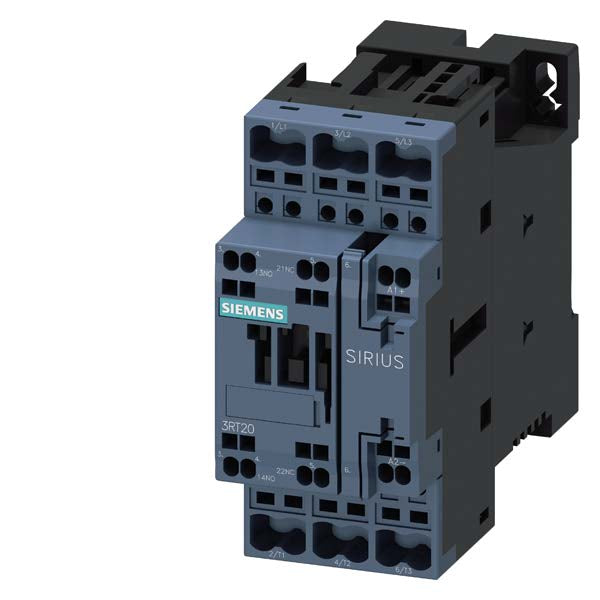

3RT2025-2FB40 is a Siemens SIRIUS power contactor designed for motor control and switching applications in industrial automation systems. This 3-pole contactor features a 24 V DC coil with plugged-in diode combination and delivers reliable performance for AC-3e/AC-3 duty cycle applications. The unit is rated for 17 A at 400 V and provides 7.5 kW switching capacity, making it suitable for medium-duty motor control circuits. Spring-loaded terminals ensure secure connections, and the Size S0 compact design allows for flexible mounting on 35 mm DIN rail or vertical installation in control panels. Auxiliary contacts include 1 NO and 1 NC for enhanced control logic integration.
- Part Number: 3RT2025-2FB40
- Manufacturer: Siemens
- Contactor Type: Power Contactor
- Rated Current: 17 A
- Coil Voltage: 24 V DC
- Main Voltage: 400 V
- Power Rating: 7.5 kW
- Poles: 3-pole
- Auxiliary Contacts: 1 NO + 1 NC
- Terminal Type: Spring-loaded
- Mounting: 35 MM DIN Rail
- Size: S0
Specifications
- Part Number: 3RT2025-2FB40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 16
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
Product Data
- UPC : 066264391475
- GTIN : 00662643914757
- Weight : 1
