Description
3RT2025-2BB40

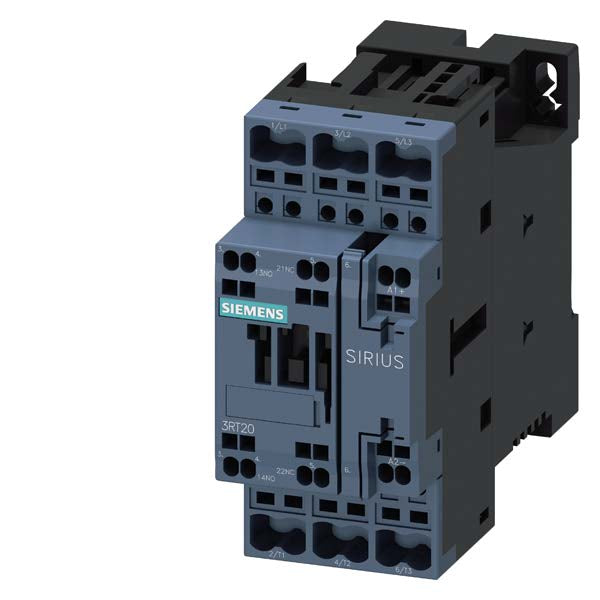

3RT2025-2BB40 is a Siemens SIRIUS power contactor designed for AC-3e/AC-3 motor control applications with a 3-pole configuration and 24 V DC coil. This contactor delivers reliable switching performance for three-phase motors with rated operational capacity of 17 A at 400 V and 7.5 kW power handling. The unit features spring-loaded terminals for secure connections and integrated auxiliary contacts (1 NO + 1 NC) for enhanced control flexibility. Operating across a wide voltage range up to 690 V, the contactor maintains consistent performance with a coil power rating of 5.9 W for both closing and holding operations. The S0 frame size provides compact installation in motor control centers and industrial automation systems.
- Manufacturer: Siemens
- Product Family: SIRIUS
- Poles: 3
- Rated Current: 17 A at 400 V AC
- Rated Power: 7.5 kW at 400 V
- Control Voltage: 24 V DC
- Auxiliary Contacts: 1 NO + 1 NC
- Terminal Type: Spring-loaded
- Frame Size: S0
- Certifications: UL Listed, CE Certified, CSA Certified, VDE Approved
- Application: AC-3e/AC-3 Motor Control
Specifications
- Part Number: 3RT2025-2BB40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 16
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
Product Data
- UPC : 066264391466
- GTIN : 00662643914665
- Weight : 1
