Description
3RT2025-2AF04

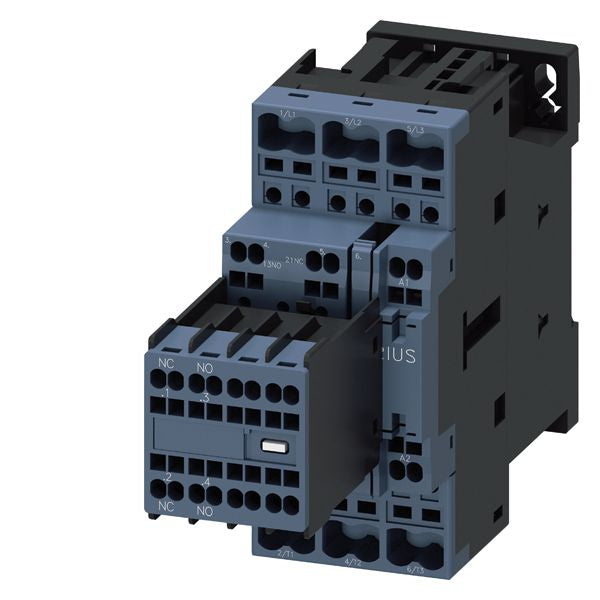

3RT2025-2AF04 is a Siemens SIRIUS power contactor designed for AC motor switching applications with AC-3e/AC-3 duty rating. This 3-pole contactor delivers reliable performance in industrial motor control circuits with a rated current of 17 A and power handling capacity of 7.5 kW at 400 V. The unit features a 110 V AC 50 Hz control supply voltage and includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for flexible circuit logic and interlocking. Spring-loaded terminal connections provide secure and efficient wiring, while the compact S0 frame size allows for space-efficient panel mounting. The removable auxiliary switch design enables quick customization and maintenance without full contactor replacement. Key Specifications
- Part Number: 3RT2025-2AF04
- Manufacturer: Siemens
- Contactor Type: Power Contactor
- Duty Rating: AC-3e/AC-3
- Rated Current: 17 A
- Power Rating: 7.5 kW at 400 V
- Poles: 3-pole
- Control Supply Voltage: 110 V AC 50 Hz
- Auxiliary Contacts: 2 NO + 2 NC
- Terminal Type: Spring-loaded
- Frame Size: S0
- Removable Auxiliary Switch: Yes
Specifications
- Part Number: 3RT2025-2AF04
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 16
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 110
Product Data
- UPC : 066264391453
- GTIN : 00662643914535
- Weight : 1
