Description
3RT2025-1BW40

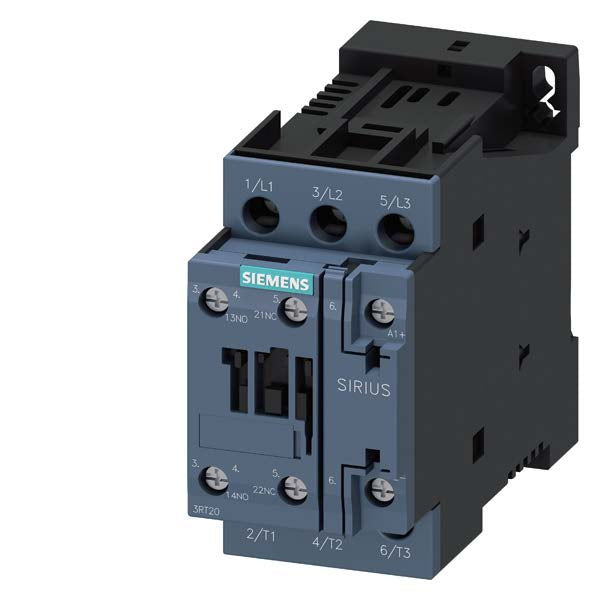

3RT2025-1BW40 is a Siemens 3-pole power contactor with a 48V DC coil designed for motor control applications.This contactor features a rated operational current of 17 amps for AC-3e/AC-3 utilization, suitable for switching motors up to 7.5 kW at 400V or 10 HP at 460V. It includes screw terminals and mounts on a standard 35mm DIN rail. The device is size S0 and comes with auxiliary contacts configured as 1 NO + 1 NC.
- Key Specifications
- Rated Current: 17 A
- Poles: 3
- Coil Voltage: 48 V DC
- Motor Power Rating: 7.5 kW at 400 V / 10 HP at 460 V
- Mounting Type: Standard 35mm DIN rail
- Terminal Type: Screw terminals
- Auxiliary Contacts: 1 NO + 1 NC
- Size/Frame: S0
- Standards: IEC 60946 compliant
- Part Number: 3RT2025-1BW40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 16
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 48
- UPC : 066264391441
- GTIN : 00662643914412
- Weight : 1
