Description
3RT2025-1BG40

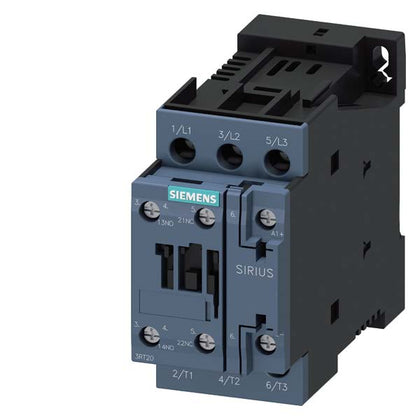

3RT2025-1BG40 is a Siemens SIRIUS power contactor designed for reliable motor control and switching applications with a 125 volt DC coil and 3-pole configuration. This size S0 contactor features a 16 ampere rated current with auxiliary contacts (1 normally open and 1 normally closed) integrated into the base unit. The contactor is rated for 5 horsepower at 230 volts and 10 horsepower at 460 volts three-phase operation, making it suitable for industrial motor control circuits. It conforms to IEC 60946 standards and is safe from touch to DIN VDE 0106 Part 100. The unit features screw terminals for secure connections and mounts on standard 35mm DIN rail for easy installation in control cabinets and enclosures.
- Coil Voltage: 125 Volt DC
- Rated Current: 16 Ampere
- Configuration: 3-Pole
- Horsepower Rating: 5 HP @ 230V, 10 HP @ 460V Three-Phase
- Auxiliary Contacts: 1 NO + 1 NC
- Contactor Size: S0
- Terminal Type: Screw
- Mounting: 35mm DIN Rail
- Standards: IEC 60946, DIN VDE 0106 Part 100
- Operating Temperature: -25°C to 60°C
- Contact Voltage Rating: 690 VAC Maximum
Specifications
- Part Number: 3RT2025-1BG40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 16
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 125
Product Data
- UPC : 004089263455
- GTIN : 00040892634556
- Weight : 1
