Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20241AV60

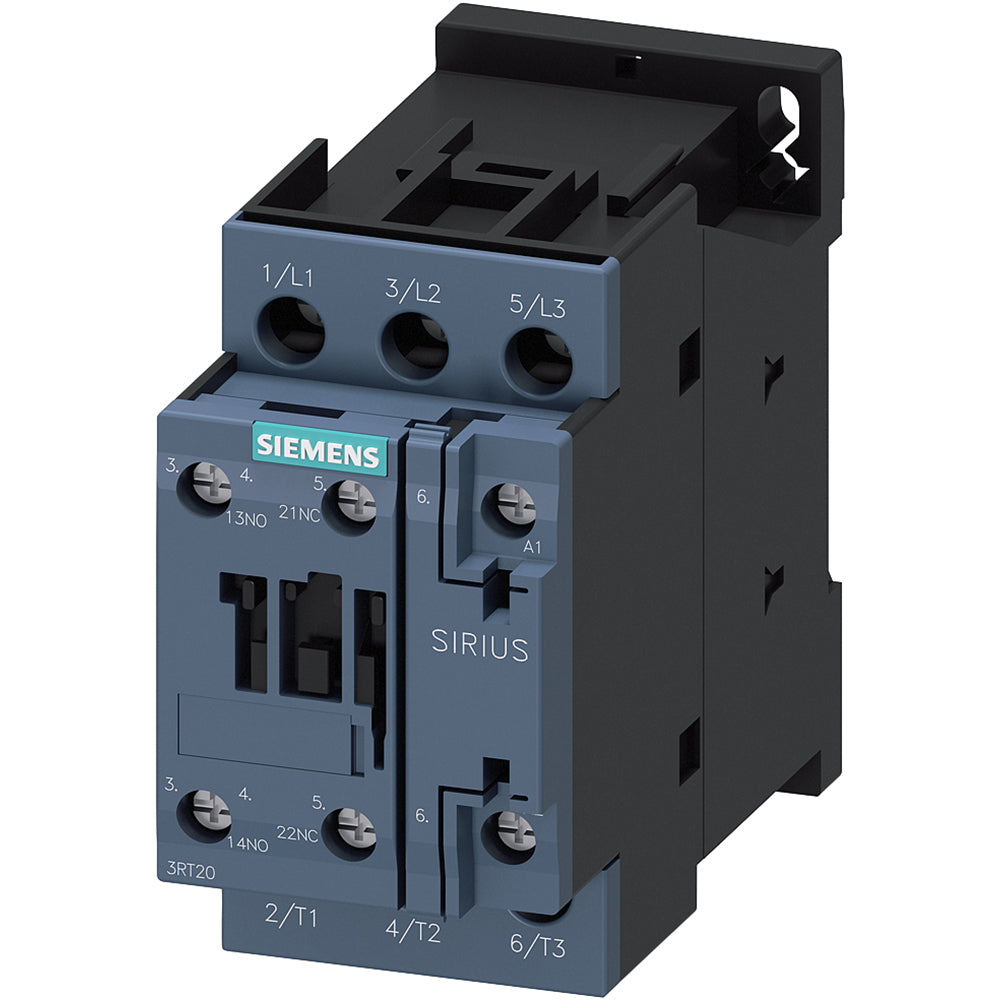

3RT20241AV60 is a Siemens SIRIUS motor contactor designed for reliable switching of motors and resistive loads in industrial applications. This 3-pole contactor features a 480VAC coil, 12A maximum load current, and a compact S0 frame size for easy DIN rail or snap-on mounting. It includes 1NO+1NC auxiliary contacts and is rated for AC-3 duty, making it ideal for motor control circuits. Engineered for durability, the 3RT20241AV60 offers a high number of operating cycles and is suitable for use in a wide temperature range. The screw terminal design ensures secure wiring connections, while the IP20 enclosure provides basic protection against accidental contact.
- Manufacturer: Siemens
- Part Number: 3RT20241AV60
- Series/Frame: SIRIUS S0
- Maximum Load Current: 12 A
- Coil Voltage: 480 VAC
- Poles: 3
- Mounting Type: DIN Rail/Snap-On/Threaded
- Contact Configuration: 1NO+1NC
- Termination Style: Screw Terminal
- Enclosure Type: IP20
- Operating Cycles: 10,000,000
- Operating Temperature: -25 to 60 deg C
Specifications
- Part Number: 3RT20241AV60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
Product Data
- UPC : 040892921304
- GTIN : 00040892921304
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.154 inch
- Weight : 0.906 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
