Description
3RT20241AP60

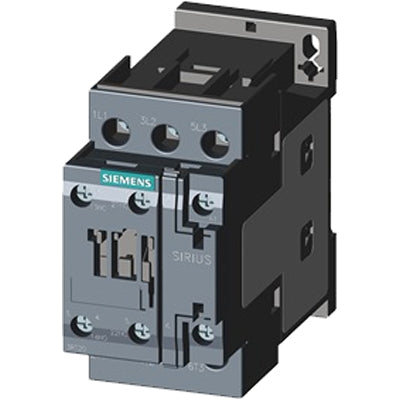

3RT20241AP60 is a Siemens IEC magnetic contactor designed for motor switching applications with three poles and screw-type terminals. This non-reversing contactor features a 240V AC nominal coil voltage at 60Hz and supports a maximum switching voltage of 690V AC, making it suitable for a wide range of industrial motor control circuits. The unit is mounted on DIN rail and operates reliably across temperatures from -25°C to +60°C. Key Specifications
- Part Number: 3RT20241AP60
- Manufacturer: Siemens
- Poles: 3 Pole
- Coil Voltage: 240V AC @ 60Hz
- Maximum Switching Voltage: 690V AC
- Mounting: DIN Rail Mount
- Connection: Screw-Type Terminals
- Operating Temperature Range: -25°C to +60°C
- Frequency: 50/60 Hz
- Features: Auxiliary Contacts
- Dimensions: 85mm H x 45mm W x 97mm D
- Country of Origin: Germany
Specifications
- Part Number: 3RT20241AP60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 7 1/2 hp
- Aux Contacts : 1NO/1NC
- Full Load Amps : Full Load Amps-Inductive 12A Full Load Amps-Resistive 40A
Product Data
- UPC : 662643914900
- GTIN : 00662643914900
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.154 inch
- Weight : 0.897
- Certification : REACH Art 33, WEEE (2012/19/EU)
