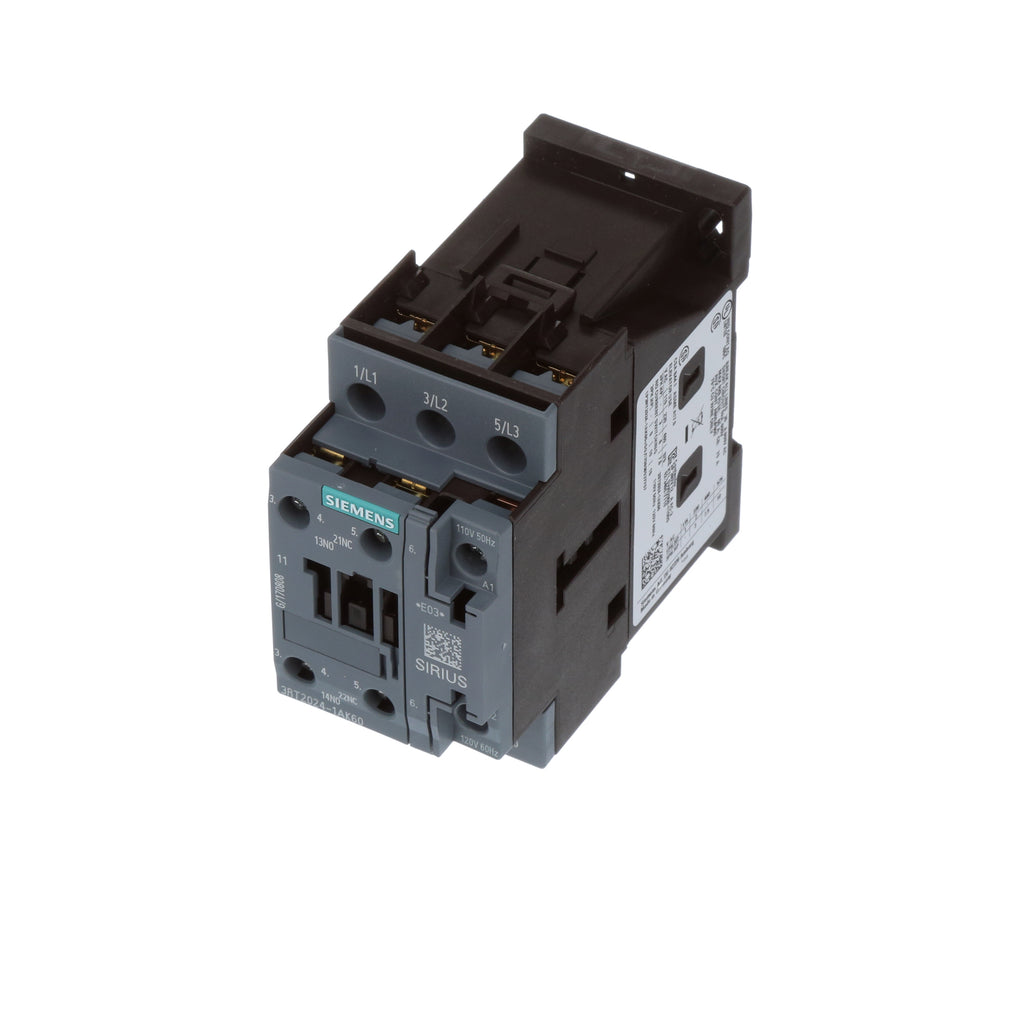

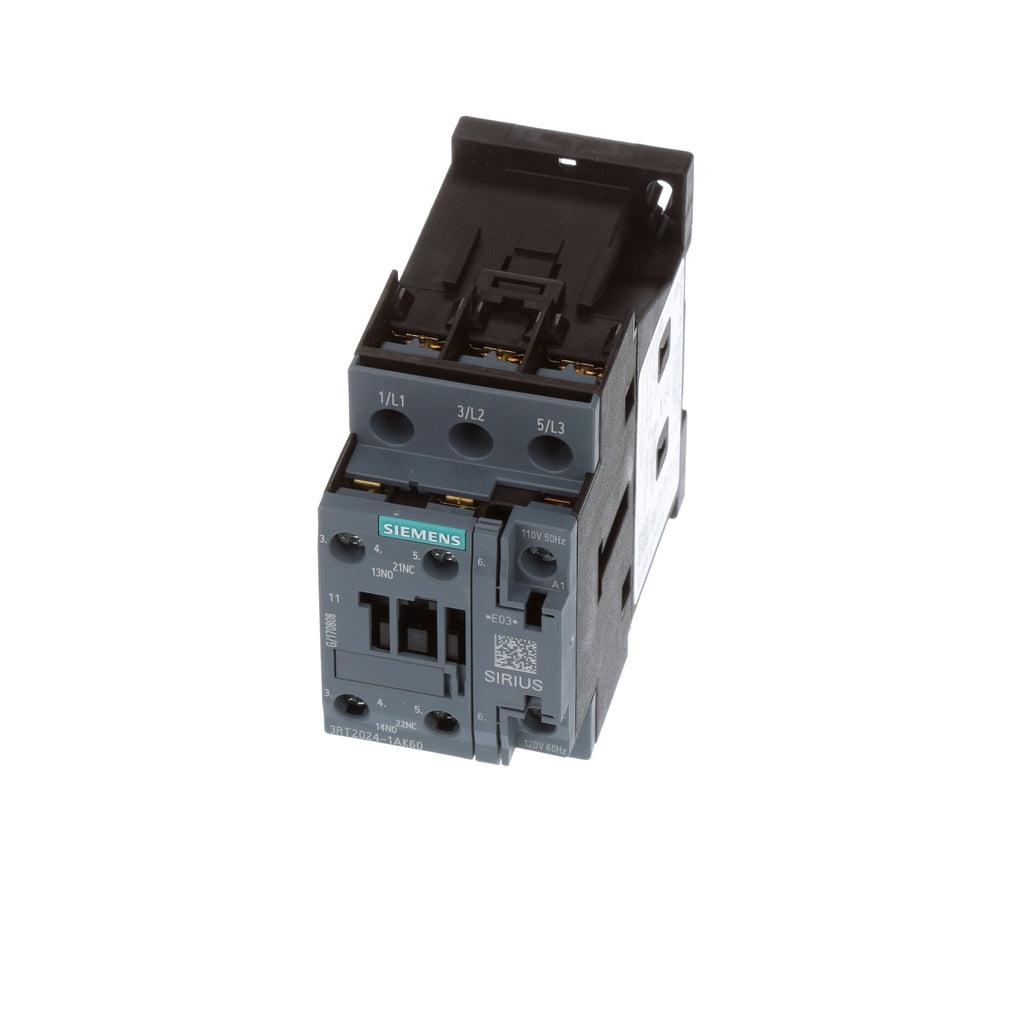

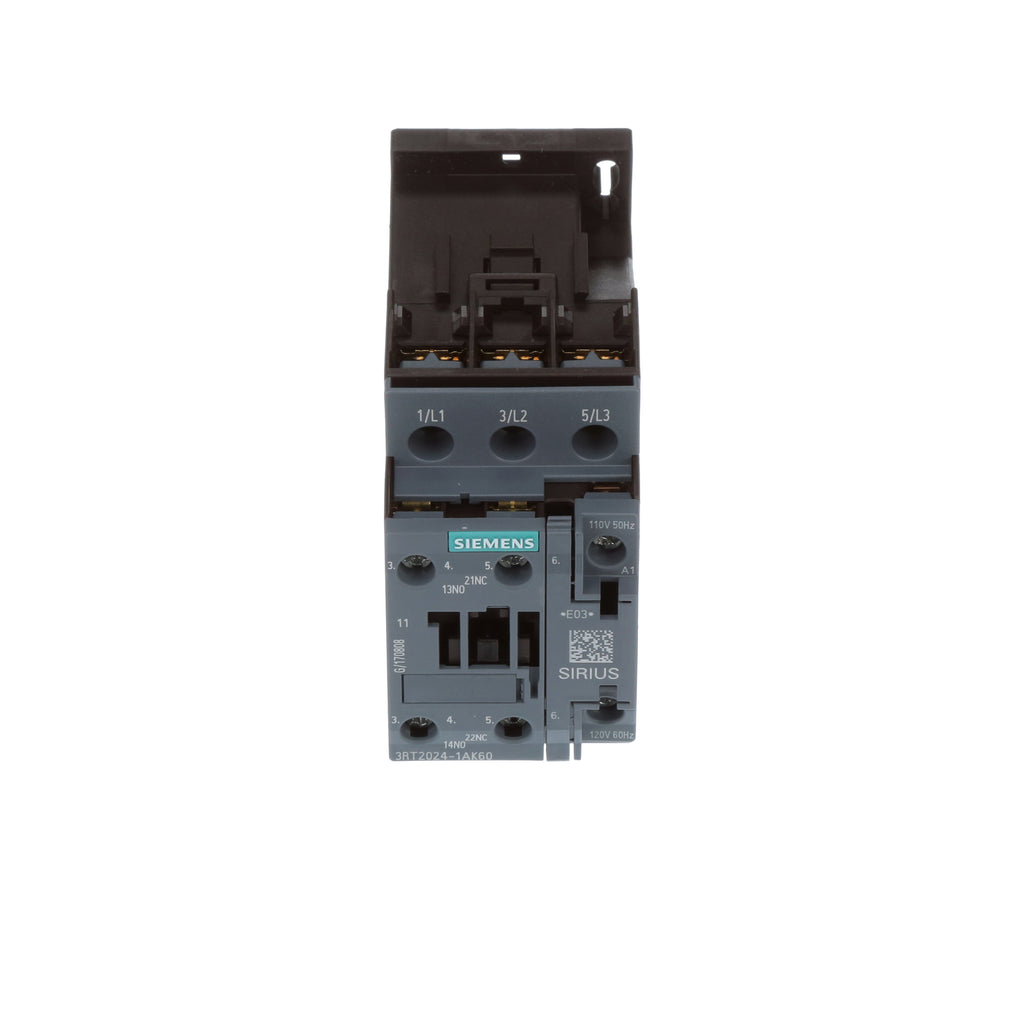

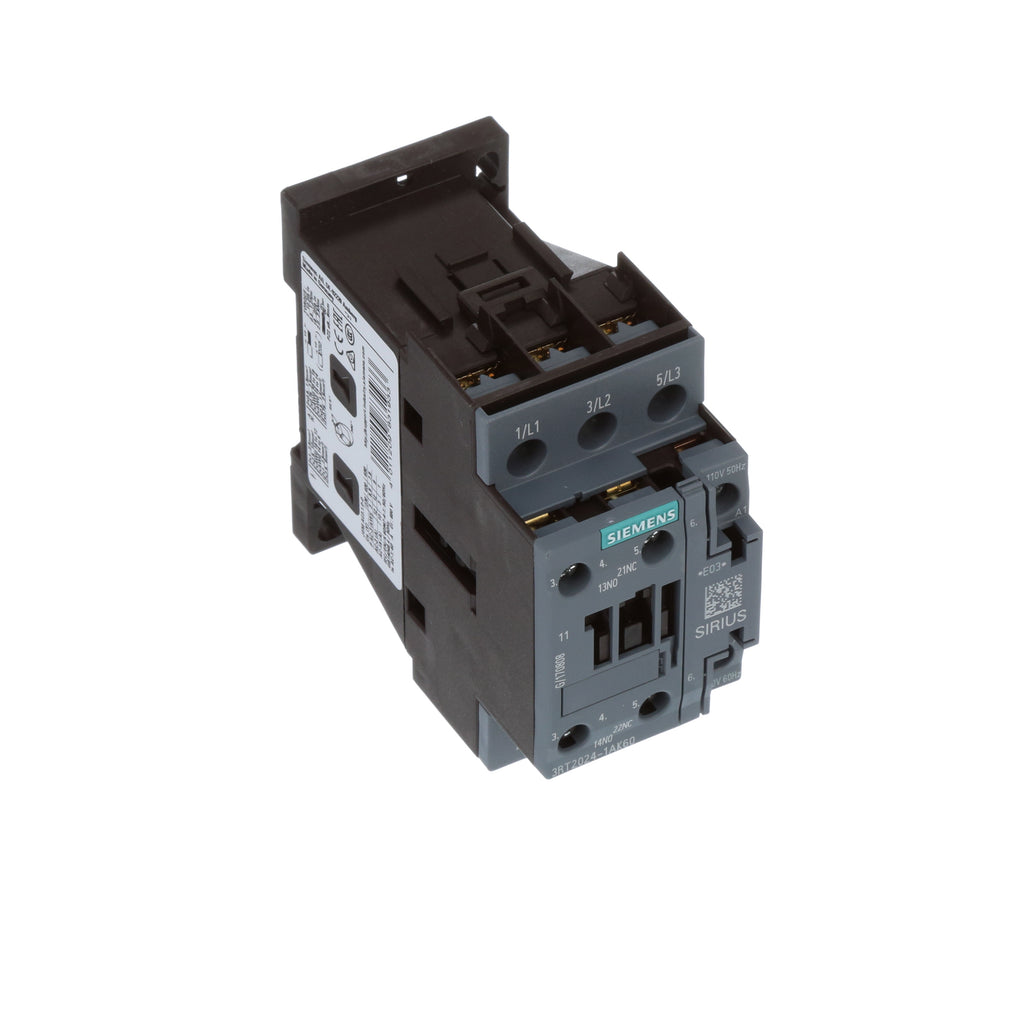

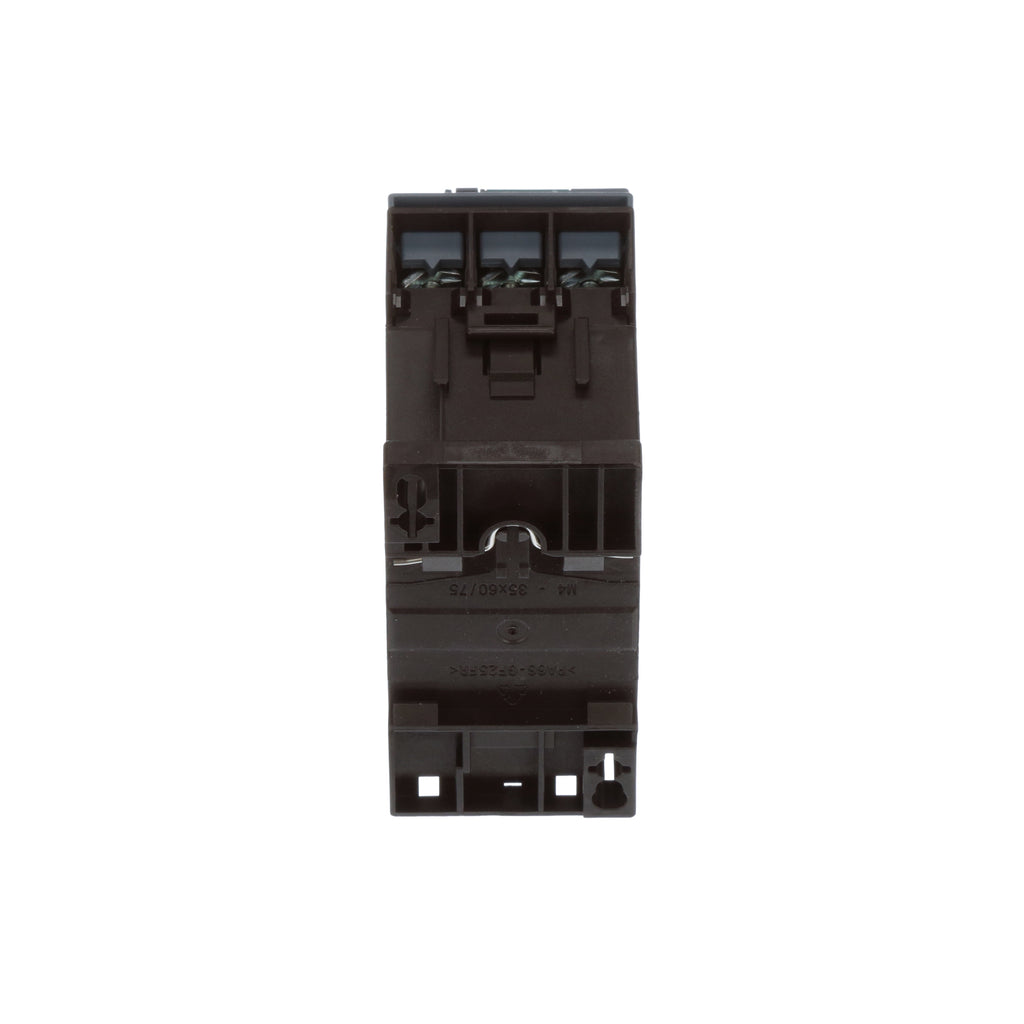

3RT20241AK60 - Siemens 12A 110/120VAC 3-Pole SIRIUS Power Contactor, 1NO-1NC, DIN Rail Mount, S0 Frame

3RT20241AK60

3RT20241AK60 is a Siemens SIRIUS power contactor designed for motor control applications with a 12 amp rating and 110/120 VAC coil voltage.This 3-pole contactor features a 1NO-1NC auxiliary contact configuration, screw terminal connections, and is sized S0 for compact DIN rail mounting. It supports AC-3 duty with a power rating of 5.5 kW at 400 VAC. The coil power rating ranges from 6.5 to 68 VA depending on frequency and operation mode. It operates reliably within -25 to 60 degrees Celsius and has an IP20 enclosure rating.

Key Specifications
• Amperage: 12 A
• Coil Voltage: 110/120 VAC, 50/60 Hz
• Poles: 3
• Contact Configuration: 1NO + 1NC auxiliary contacts
• Mounting Type: DIN Rail / Snap-On / Threaded
• Power Rating: 5.5 kW at 400 VAC
• Frame Size: S0
• Coil Power Rating: 6.5/7.9/67/68 VA
• Operating Temperature: -25 to 60 °C
• Enclosure Rating: IP20
• Terminal Type: Screw
• Operating Cycles: 10,000,000

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20241AK60
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Draw-Out
• Functions : LSH - Long-Time, Short-Time and High-Range Instantaneous
• Protection : Solid State

Product Data

• UPC : 662643913071
• GTIN : 4011209831933
• Country of Origin : Germany
• Dimensions : 3.622 x 2.126 x 4.154 inch
• Weight : 0.888 lb
• Certification : REACH Art 33, WEEE (2012/19/EU)
