Description
3RT20241AB00

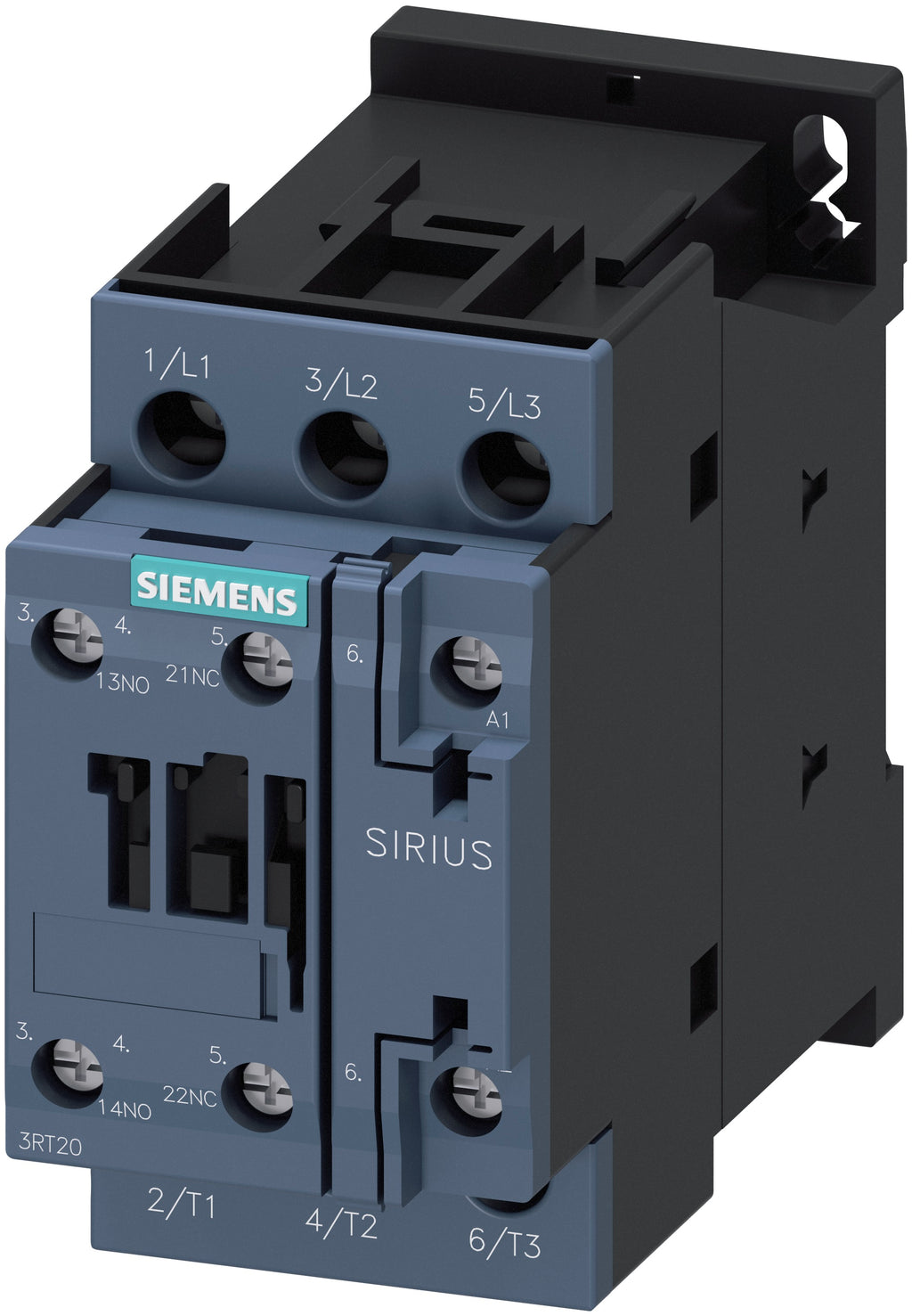

3RT20241AB00 is a Siemens SIRIUS power contactor designed for motor control applications with a 24 VAC coil voltage and 3 poles.3RT20241AB00 features a 12 A rated operational current at AC-3, suitable for switching motors up to 5.5 kW at 400 V. It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, uses screw terminal connections, and is built on the compact S0 frame size.
- Key Specifications
- Rated operational current: 12 A (AC-3)
- Coil voltage: 24 VAC, 50 Hz
- Number of poles: 3
- Auxiliary contacts: 1 NO + 1 NC
- Power rating: 5.5 kW at 400 V
- Connection type: Screw terminals
- Frame size: S0
- Operating temperature range: -25 to 60 °C
- Coil power rating: 65 VA pickup, 7.6 VA holding
- Contact configuration: 3 main contacts normally open
Specifications
- Part Number: 3RT20241AB00
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
Product Data
- UPC : 662643912999
- GTIN : 00662643912999
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.154 inch
- Weight : 0.897
