Description

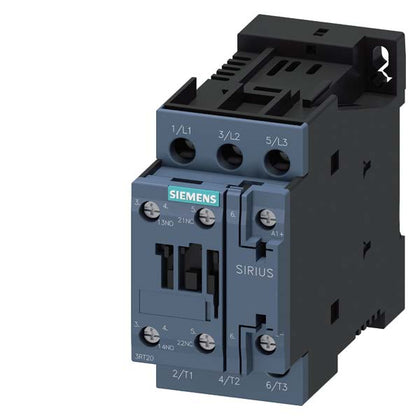

3RT2024-1BW40
3RT2024-1BW40 is a Siemens Sirius 3-pole, 3-phase power contactor designed for reliable motor control applications. This contactor is suitable for switching 3-phase AC motors up to 5.5 kW (7.5 HP at 460V, 3 HP at 230V) and is built for industrial environments requiring robust performance. The Siemens 3RT2024-1BW40 features a screw terminal connection, 1 NO + 1 NC auxiliary contacts, and is rated for AC-3 duty. It operates at 12A and is compatible with 48 V DC control voltage. The contactor is part of the Sirius S0 size series and is engineered for efficient motor starting and stopping in demanding applications.
- Part Number: 3RT2024-1BW40
- Manufacturer: Siemens
- Series/Frame: Sirius S0
- Number of Poles: 3
- Rated Current: 12A
- Rated Voltage: 600V
- Motor Rating: 5.5 kW / 400 V (7.5 HP at 460V, 3 HP at 230V)
- Mounting Type: Screw Terminal
- Control Voltage: 48 V DC
- Auxiliary Contacts: 1 NO + 1 NC
- Duty Type: AC-3
- Application: Motor Control
Specifications
- Part Number: 3RT2024-1BW40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 48
Product Data
- UPC : 066264391500
- GTIN : 00662643915006
- Weight : 1
