Description

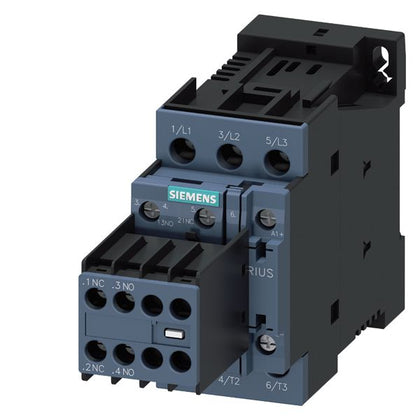

3RT2024-1BF44
3RT2024-1BF44 is a Siemens SIRIUS 3RT20 series power contactor designed for reliable motor control in industrial applications. This 3-pole contactor features a 12A current rating, 5.5kW at 400V, and is compatible with AC-3 and AC-3e duty cycles. The unit is equipped with a 110V DC coil, 2 NO + 2 NC auxiliary contacts, and a removable auxiliary switch for flexible configuration. It is designed for screw terminal connections and fits Size S0 enclosures. This contactor is ideal for use in motor starters and switching applications where dependable performance and easy installation are required. The compact design allows for DIN rail or vertical mounting, making it suitable for a wide range of control panels and industrial environments.
- Manufacturer: Siemens
- Part Number: 3RT2024-1BF44
- Series: SIRIUS 3RT20
- Frame Size: S0
- Amperage: 12A
- Voltage: 5.5kW at 400V, 110V DC coil
- Poles: 3-pole
- Mounting Type: 35 mm DIN rail or vertical mount
- Terminal Type: Screw terminal
- Auxiliary Contacts: 2 NO + 2 NC
- Switching Duty: AC-3 / AC-3e
- Removable Auxiliary Switch
Specifications
- Part Number: 3RT2024-1BF44
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 110
- Coil Voltage Minimum : 110
Product Data
- UPC : 066264391498
- GTIN : 00662643914986
- Weight : 1
