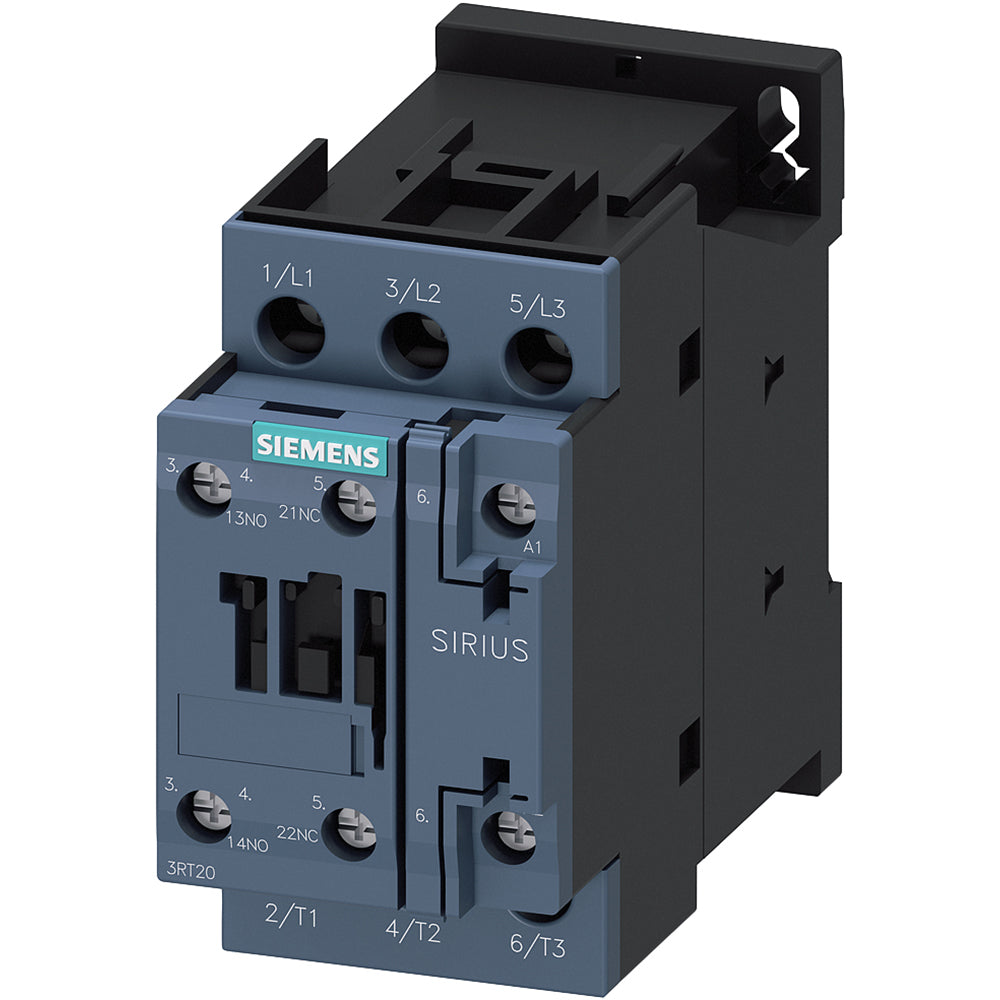

3RT20231AV60 - Siemens 9A 480VAC 3-Pole S0 Frame Power Contactor with 1NO+1NC Auxiliary Contacts

3RT20231AV60

3RT20231AV60 is a Siemens SIRIUS power contactor designed for motor control applications with a 9 ampere rating and 480 VAC coil voltage.This 3-pole contactor features a 1NO+1NC auxiliary contact configuration, supports AC-3 operation up to 4 kW at 400 V, and includes screw terminal connections. It is built on the S0 frame size with a 60 Hz frequency rating and an IP20 enclosure, suitable for DIN rail or threaded mounting. The contactor offers a coil power rating of 7.2/73 VA and is rated for up to 10 million operating cycles, operating reliably in temperatures from -25 to 60 degrees Celsius.

Key Specifications
• Rated Current: 9 A
• Coil Voltage: 480 VAC, 60 Hz
• Poles: 3
• Contact Configuration: 1 Normally Open + 1 Normally Closed Auxiliary Contacts
• Power Rating: 4 kW at 400 V (AC-3)
• Frame Size: S0
• Connection Type: Screw Terminals
• Mounting: DIN Rail/Snap-On/Threaded
• Enclosure Rating: IP20
• Operating Temperature: -25 to 60 °C
• Operating Cycles: 10,000,000
• Coil Power Rating: 7.2/73 VA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 3RT20231AV60
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactors



Product Data

• UPC : 040892920697
• GTIN : 00040892920697
• Country of Origin : Germany
• Dimensions : 3.622 x 2.126 x 4.154 inch
• Weight : 0.871 lb
