Description

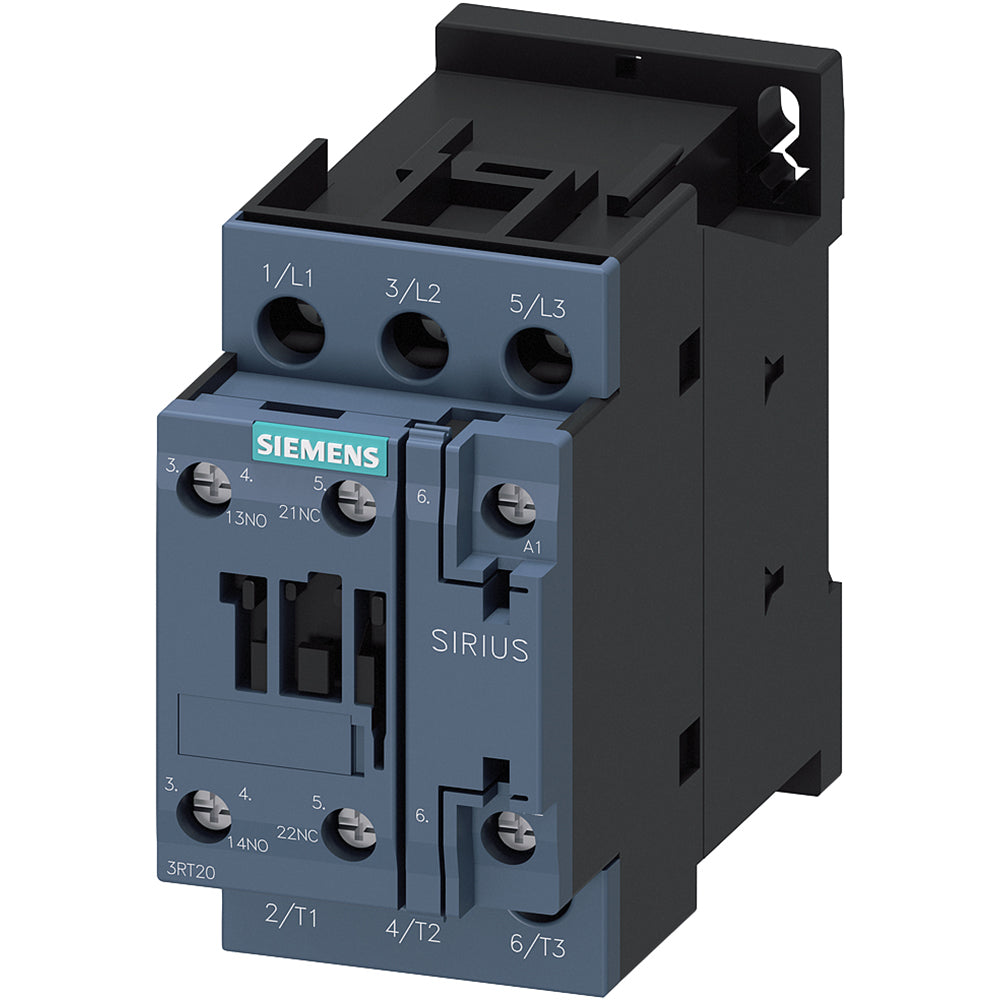

3RT20231AP60
3RT20231AP60 is a Siemens SIRIUS power contactor designed for reliable motor control and switching applications. This three-pole contactor features a 220/240VAC coil, 9A maximum load current, and a robust screw terminal design for secure connections. Suitable for industrial environments, it offers high operational durability and easy DIN rail mounting.Engineered for demanding motor control tasks, the 3RT20231AP60 delivers consistent performance with a 4kW rating at 400VAC and a contact configuration of 1NO + 1NC. Its compact Size S0 frame fits standard enclosures, and the IP20 enclosure provides basic protection against dust and accidental contact. The contactor is rated for 10,000,000 operating cycles and operates reliably in temperatures from -25°C to 60°C.
- Manufacturer: Siemens
- Part Number: 3RT20231AP60
- Series/Frame: SIRIUS Size S0
- Amperage Rating: 9A
- Voltage Rating: 220/240VAC
- Number of Poles: 3
- Contact Configuration: 1NO + 1NC
- Mounting Type: DIN Rail/Snap-On/Threaded
- Terminal Type: Screw
- Wattage: 4kW
- Operating Temperature: -25°C to 60°C
- Operating Cycles: 10,000,000
Specifications
- Part Number: 3RT20231AP60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Draw-Out
- Functions : LSH - Long-Time, Short-Time and High-Range Instantaneous
- Protection : Solid State
Product Data
- UPC : 662643912159
- GTIN : 00782113777870
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.154 inch
- Weight : 0.895 lb
