Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20231AC20

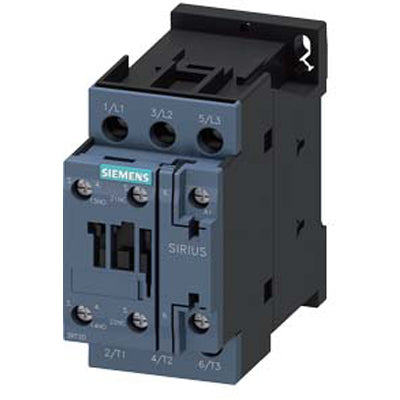

3RT20231AC20 is a Siemens 3-pole motor contactor designed for AC-3e/AC-3 applications with a 9 ampere rating and 400 volt power capacity.This Siemens SIRIUS contactor features a 24 VAC coil operating at 50/60 Hz, 1NO-1NC auxiliary contacts, and a Size S0 frame with screw terminals for secure connections.
- Rated current: 9 A
- Rated operational voltage: 400 V
- Coil voltage: 24 VAC, 50/60 Hz
- Number of poles: 3
- Contact configuration: 1 normally open (NO) + 1 normally closed (NC) auxiliary contacts
- Mounting type: DIN rail / snap-on / threaded
- Frame size: S0
- Contact rating: A600/Q600
- Power rating: 4 kW at 400 V
- Operating temperature range: -25 to 60 °C
- Dimensions: 85 mm H x 45 mm W x 97 mm D
- IP20 enclosure rating
Specifications
- Part Number: 3RT20231AC20
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
Product Data
- UPC : 662643912029
- GTIN : 4011209831308
- Country of Origin : Germany
- Dimensions : 3.622 x 2.126 x 4.154 inch
- Weight : 0.897
