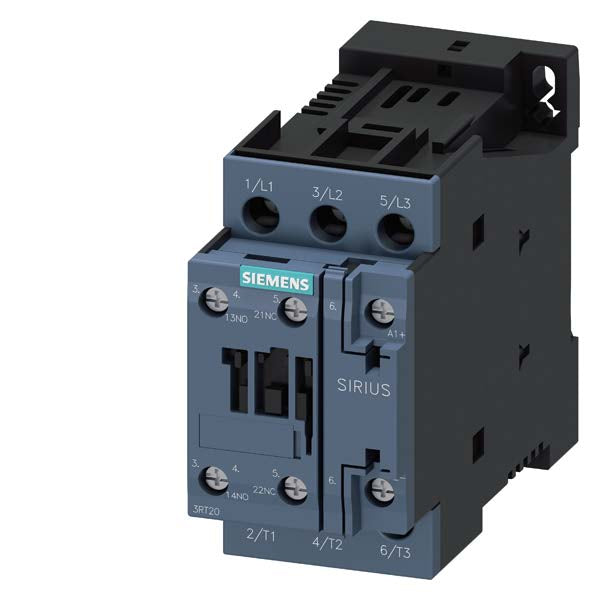

3RT2023-1FB40 - Siemens 9A 3-Pole 600V SIRIUS Power Contactor 24V DC Coil 4kW at 400V AC-3

3RT2023-1FB40

This contactor supports a maximum load current of 9 A and is rated for switching motors up to 4 kW at 400 V AC-3/AC-3e utilization category. It features a 3-pole configuration with 1 normally open and 1 normally closed auxiliary contact, screw terminal connections, and an IP20 enclosure rating. The device is part of the 3RT20 series, size S0, and is suitable for DIN rail or vertical mounting with a compact design measuring 85 mm high, 45 mm wide, and 107 mm deep. It operates reliably within a temperature range of -25 to 60 degrees Celsius and offers up to 10 million operating cycles.

Key Specifications
• Maximum Load Current: 9 A
• Coil Voltage: 24 V DC
• Poles: 3
• Motor Power Rating: 4 kW at 400 V AC-3
• Auxiliary Contacts: 1NO - 1NC
• Series: 3RT20, Size S0
• Mounting Type: DIN Rail / Vertical Mount
• Terminal Type: Screw
• Enclosure Rating: IP20
• Operating Temperature: -25 to 60 °C
• Operating Cycles: 10,000,000

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 3RT2023-1FB40
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT20
• Voltage : 600
• Amperage : 9
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24



Product Data

• UPC : 004089295853
• GTIN : 00040892958539
• Weight : 1
