Description
3RT2023-1BG40

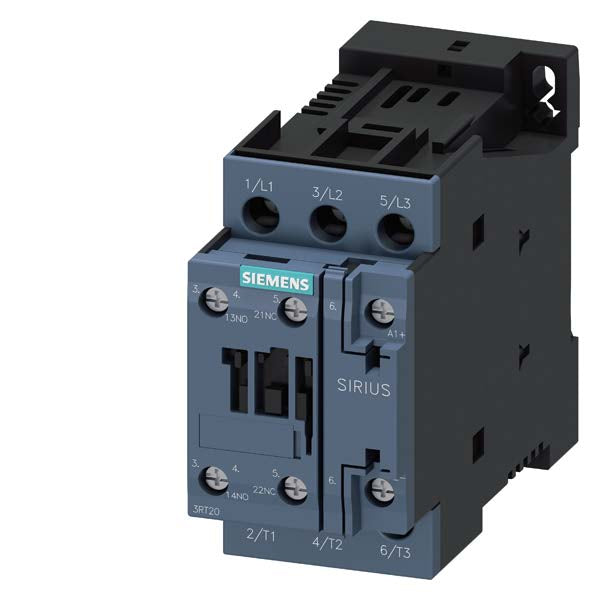

3RT2023-1BG40 is a Siemens Sirius 3-pole motor contactor designed for reliable motor control applications. This contactor features a 125VDC coil, 9A current rating, and is built in the S0 frame size for compact installation. It includes 1 normally open and 1 normally closed auxiliary contact, making it suitable for a wide range of industrial control circuits. The unit mounts on a standard 35mm DIN rail and uses screw terminals for secure wiring connections. This Siemens 3RT2023-1BG40 contactor is rated for 3 HP at 230V and 5 HP at 460V 3-phase, with a maximum switching voltage of 600V. It is designed to meet IEC 60947-4-1 standards for motor control applications. The contactor is compatible with a range of accessories, including thermal and solid state overload relays, and can be expanded with additional auxiliary contacts as needed.
- Part Number: 3RT2023-1BG40
- Manufacturer: Siemens
- Series/Frame: Sirius S0
- Amperage: 9A
- Voltage: 125VDC coil, 600V max switching
- Poles: 3
- Mounting Type: DIN rail
- Terminal Type: Screw terminal
- Auxiliary Contacts: 1 NO + 1 NC
- HP Rating: 3 HP @ 230V, 5 HP @ 460V 3-phase
- Compliance: IEC 60947-4-1
- Application: Motor control
Specifications
- Part Number: 3RT2023-1BG40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 125
Product Data
- UPC : 004089295850
- GTIN : 00040892958508
- Weight : 1
