Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20181FB41

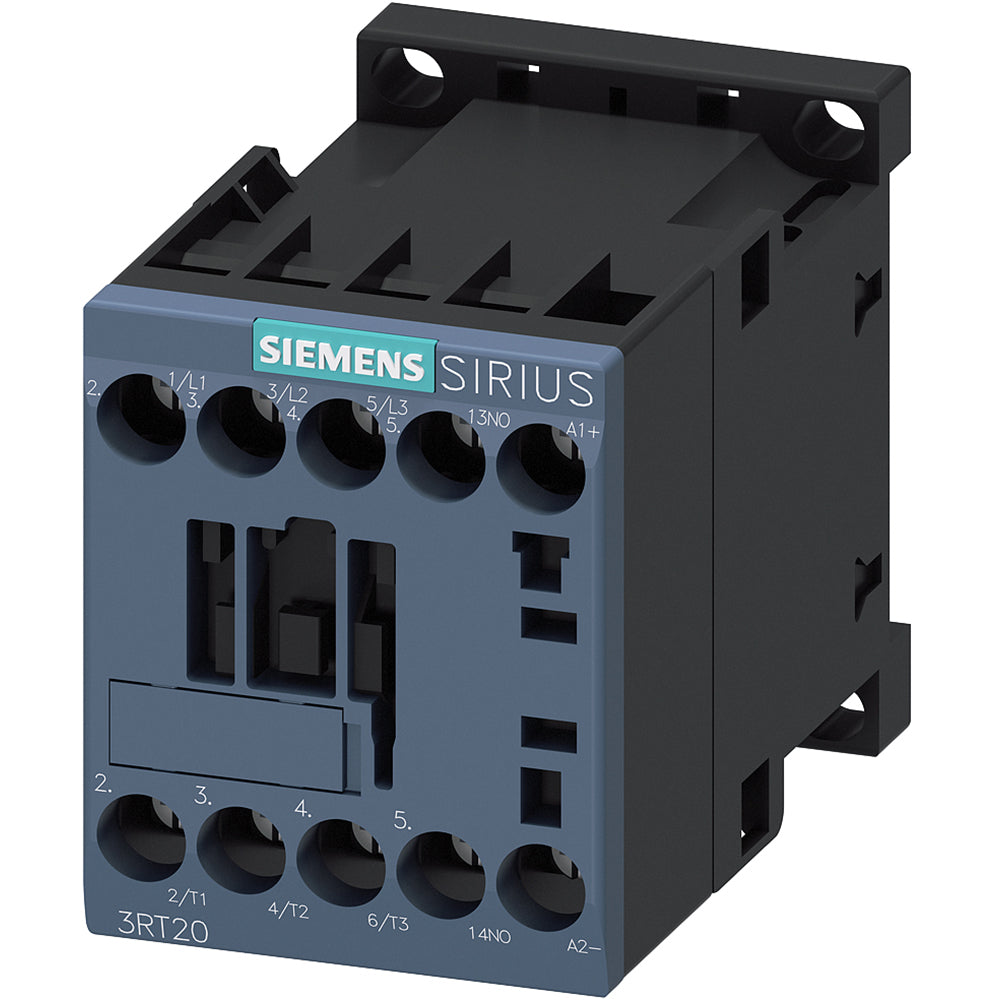

3RT20181FB41 is a Siemens SIRIUS 3-pole power contactor designed for reliable motor control applications. This contactor features a 24 VDC coil, 16 A current rating, and 1 NO auxiliary contact for flexible control circuit integration. Engineered for industrial environments, the 3RT20181FB41 offers robust performance with a size S00 frame, screw terminal connections, and DIN rail or vertical mounting options. It is suitable for switching up to 7.5 kW at 400 V and provides high electrical endurance for demanding operations.
- Part Number: 3RT20181FB41
- Manufacturer: Siemens
- Series/Frame: SIRIUS S00
- Amperage: 16 A
- Coil Voltage: 24 VDC
- Poles: 3
- Mounting Type: DIN Rail/Vertical
- Terminal Type: Screw
- Contact Configuration: 1NO Auxiliary
- Operating Temperature: -25°C to 60°C
- Interrupt Rating: 300 A (1 s), 169 A (5 s)
- Certifications: IEC, UL
Specifications
- Part Number: 3RT20181FB41
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
Product Data
- UPC : 066264391333
- GTIN : 00662643913330
- Country of Origin : Germany
- Dimensions : 2.421 x 1.969 x 3.051 inch
- Weight : 0.65
- Certification : REACH Art 33, WEEE (2012/19/EU)
