2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description

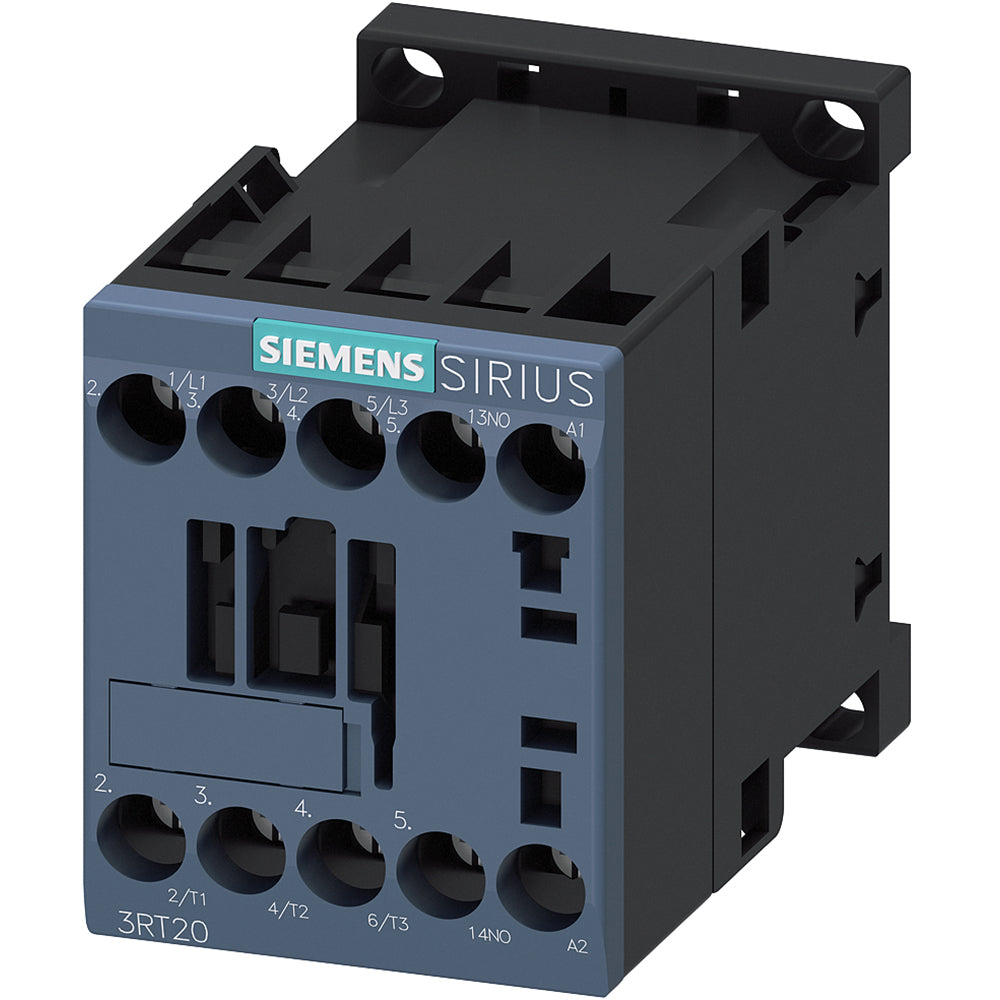

3RT20181AK610UA0
3RT20181AK610UA0 is a Siemens SIRIUS 3RT20 series 3-pole NEMA magnetic contactor designed for motor switching applications with a 120VAC coil and 18A full load current rating. This contactor features screw terminal connections, 3NO main contacts, and auxiliary contacts for reliable control circuit integration. Engineered for durability and ease of installation, it is suitable for industrial motor control and automation systems. The Siemens 3RT20181AK610UA0 contactor is built to NEMA standards with a compact S00 frame size, making it ideal for space-constrained panels. It offers robust performance with a maximum switching voltage of 690VAC and is rated for both 50Hz and 60Hz operation. The modular design supports DIN rail or screw mounting for flexible installation options.
- Part Number: 3RT20181AK610UA0
- Manufacturer: Siemens
- Series/Frame: SIRIUS 3RT20, S00
- Number of Poles: 3
- Full Load Current: 18A
- Coil Voltage: 120VAC, 50/60Hz
- Main Contact Type: 3NO
- Mounting Type: DIN Rail or Screw
- Connection Type: Screw Terminal
- Maximum Switching Voltage: 690VAC
- Operating Temperature: -25°C to 60°C
- Application: Motor Control, Industrial Automation
Specifications
- Part Number: 3RT20181AK610UA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
Product Data
- UPC : 040892574630
- GTIN : 00040892574630
- Country of Origin : Germany
- Dimensions : 2.421 x 1.969 x 3.051 inch
- Weight : 0.514 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
