2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20172BB41

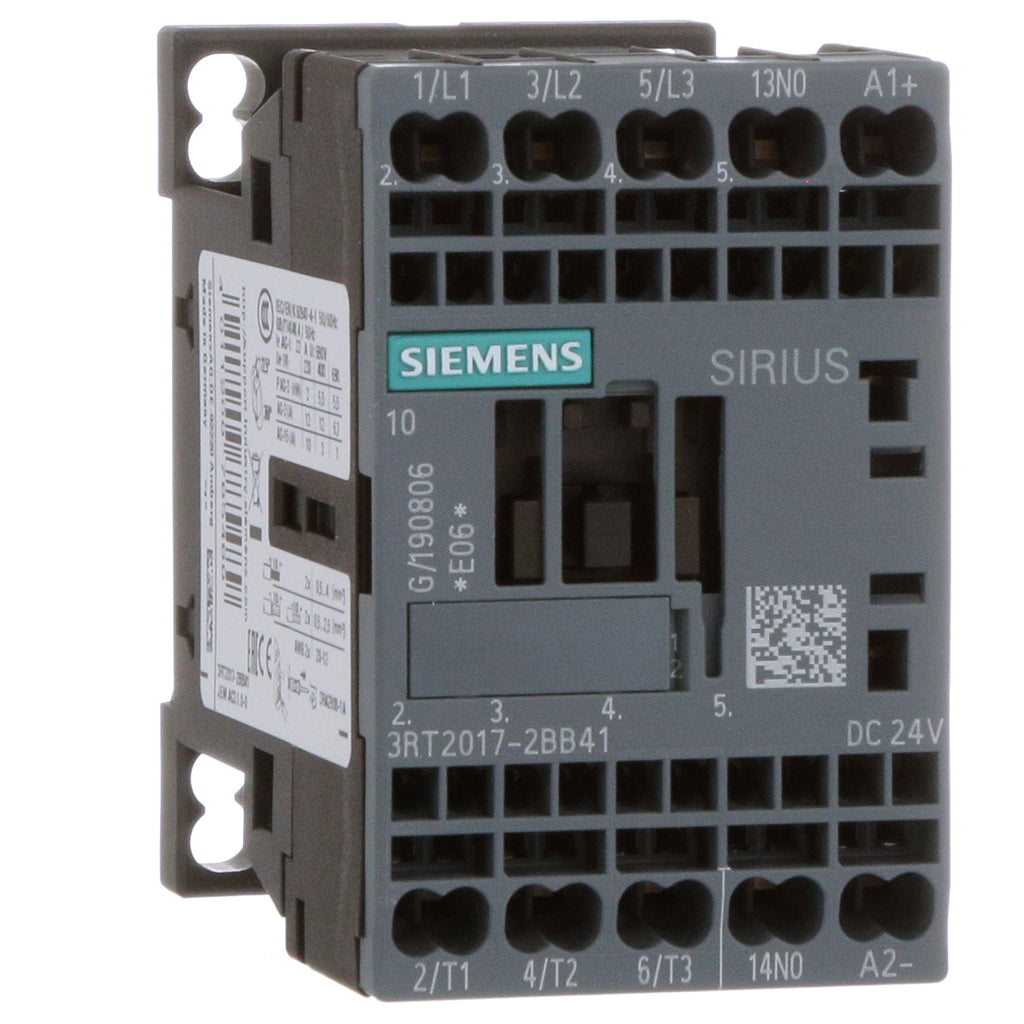

3RT20172BB41 is a Siemens SIRIUS power contactor designed for motor control applications with a 12 amp rating and 3 poles.3RT20172BB41 features a 24 V DC coil voltage, size S00 frame, and supports AC-3 duty up to 5.5 kW at 400 V. It includes one normally open auxiliary contact and spring-loaded terminals for reliable connections. The contactor is UL, CSA, CE, CCC, and EAC certified, suitable for vertical mounting, and offers surge voltage resistance up to 6 kV.
- Key Specifications
- Amperage: 12 A
- Voltage: 24 V DC coil, 400 V AC main circuit
- Poles: 3
- Mounting Type: Vertical
- Interrupt Rating: AC-3, 5.5 kW at 400 V
- Frame Size: S00
- Auxiliary Contacts: 1 NO (Normally Open)
- Coil Power: 4 W
- Surge Voltage Resistance: 6 kV
- Certifications: UL, CSA, CE, CCC, EAC
Specifications
- Part Number: 3RT20172BB41
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
Product Data
- UPC : 066264391157
- GTIN : 00662643911572
- Country of Origin : Germany
- Dimensions : 2.894 x 1.969 x 3.051 inch
- Weight : 0.679 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
