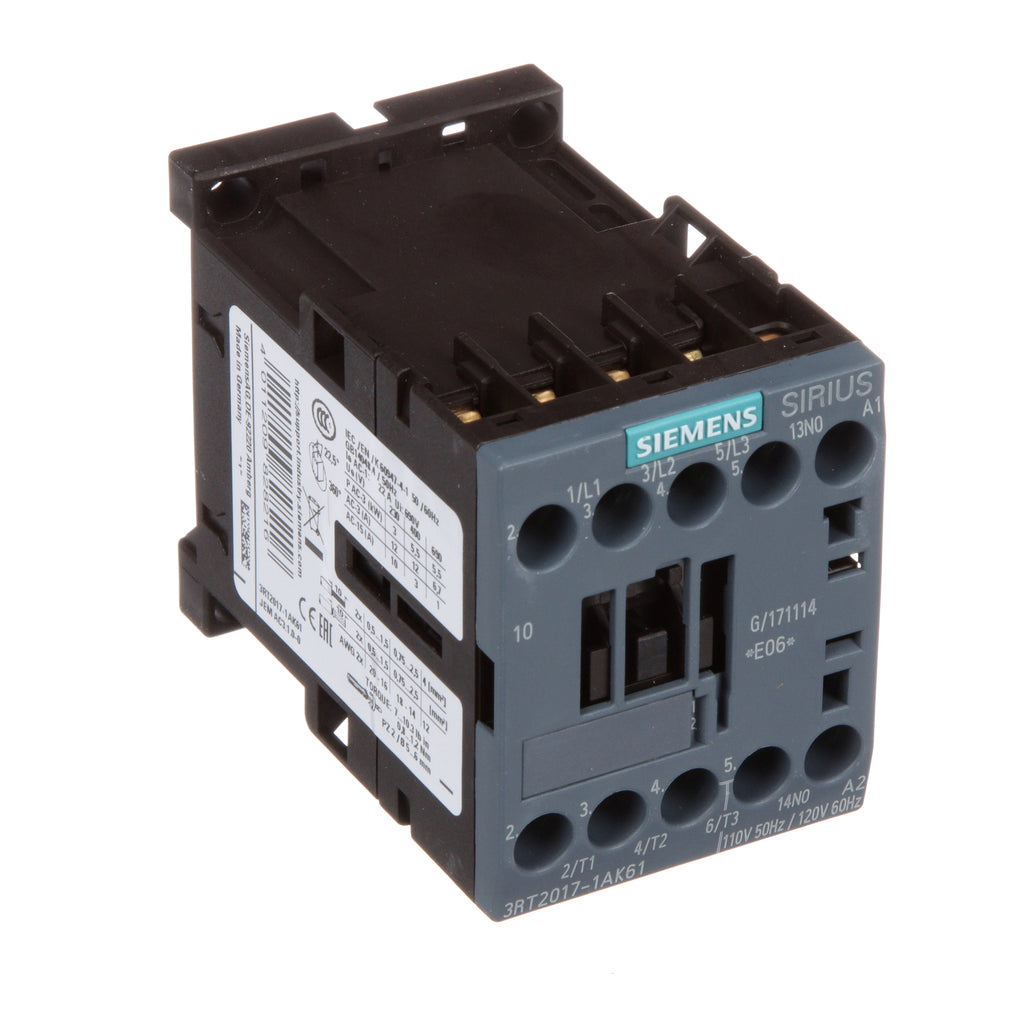

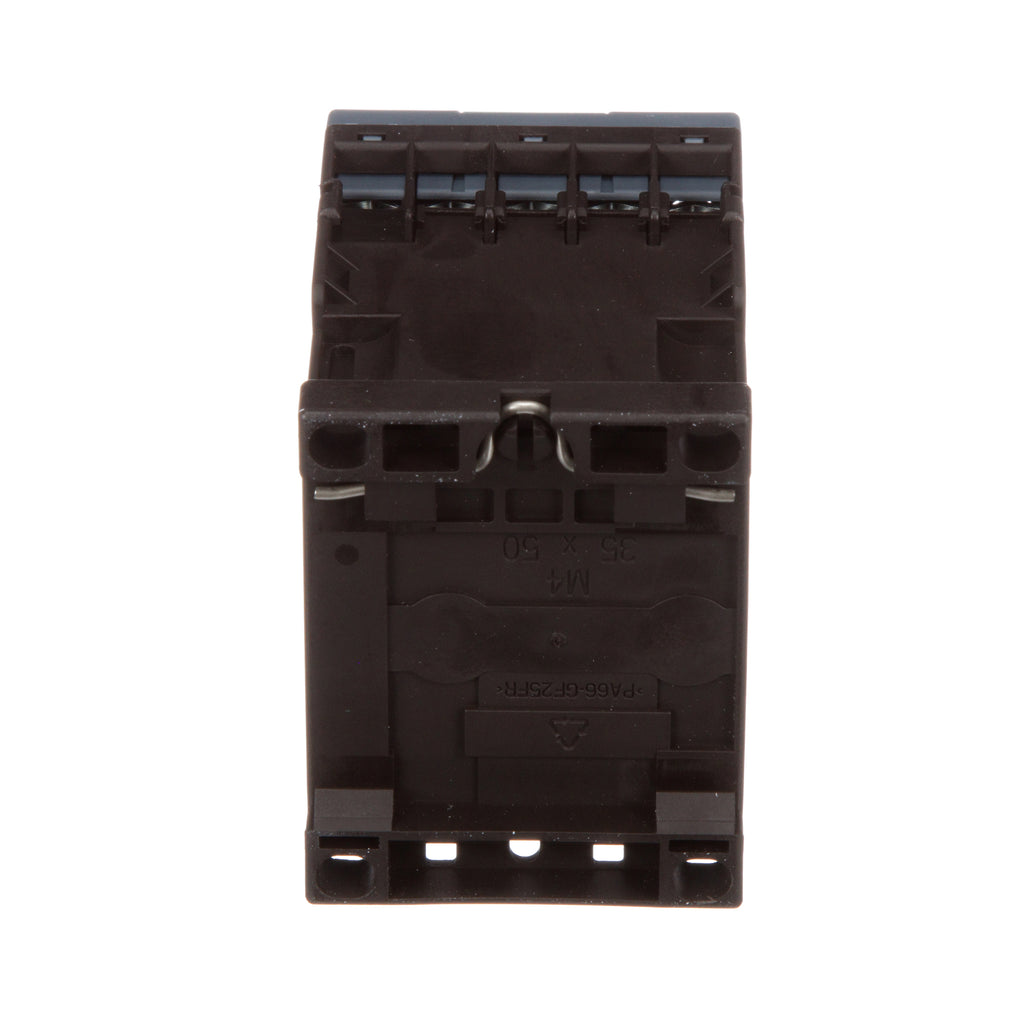

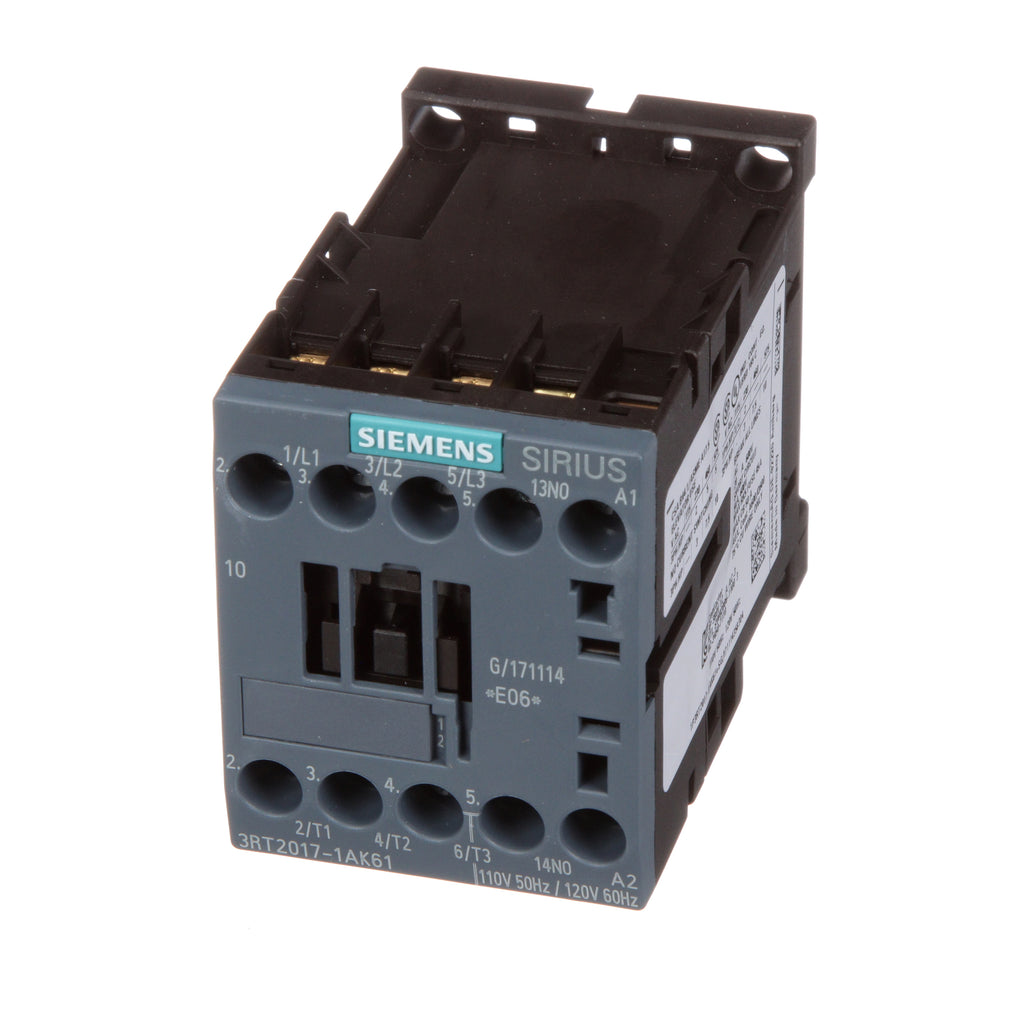

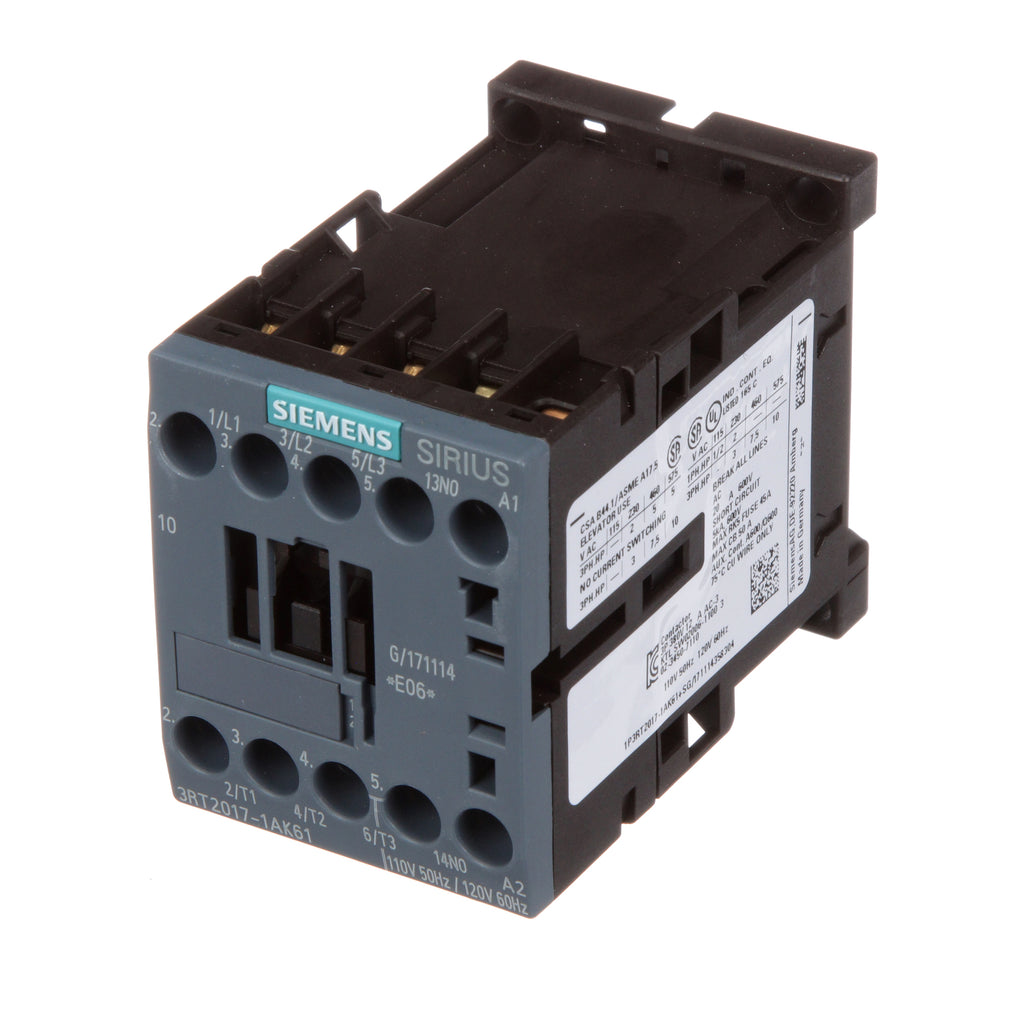

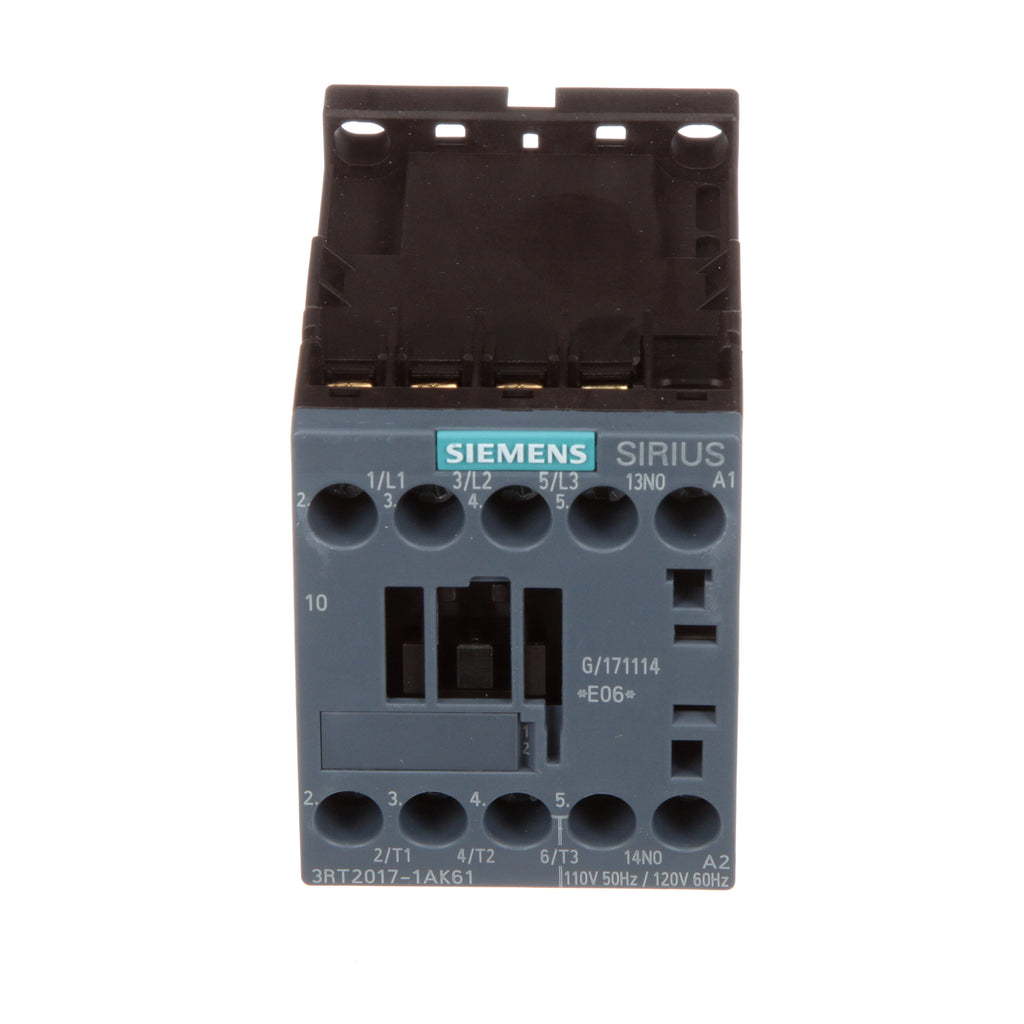

3RT20171AK61 - Siemens 12 Amp 120V AC 3-Pole Motor Contactor DIN Rail Mount

3RT20171AK61

3RT20171AK61 is a Siemens 3-pole motor contactor rated for 12 amps with a 120V AC coil and DIN rail mounting.This Siemens Sirius 3RT20171AK61 contactor features screw terminals, one normally open auxiliary contact, and is suitable for motor control applications up to 3 HP at 230V and 7.5 HP at 460V 3-phase. It supports vertical mounting and complies with UL, CSA, CE, CCC, and EAC certifications. The contactor is designed for reliable operation with a coil voltage of 110V AC at 50 Hz or 120V AC at 60 Hz.

• Amperage: 12 A
• Coil Voltage: 120 V AC (110 V AC 50 Hz / 120 V AC 60 Hz)
• Number of Poles: 3
• Mounting Type: DIN rail or screw mounted (vertical)
• Auxiliary Contacts: 1 Normally Open (1 NO)
• Power Rating: 3 HP @ 230 V, 7.5 HP @ 460 V 3-phase
• Terminal Type: Screw terminals
• Certifications: UL, CSA, CE, CCC, EAC
• Operating Temperature: -25 to 60 °C
• Dimensions: Approx. 57.5 mm H x 45 mm W x 73 mm D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20171AK61
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactors
• Section : Contactors

Product Data

• UPC : 066264391102
• GTIN : 00662643911022
• Country of Origin : Germany
• Dimensions : 2.421 x 1.969 x 3.051 inch
• Weight : 0.514 lb
• Certification : REACH Art 33, WEEE (2012/19/EU)
