Description
3RT2017-2BM42

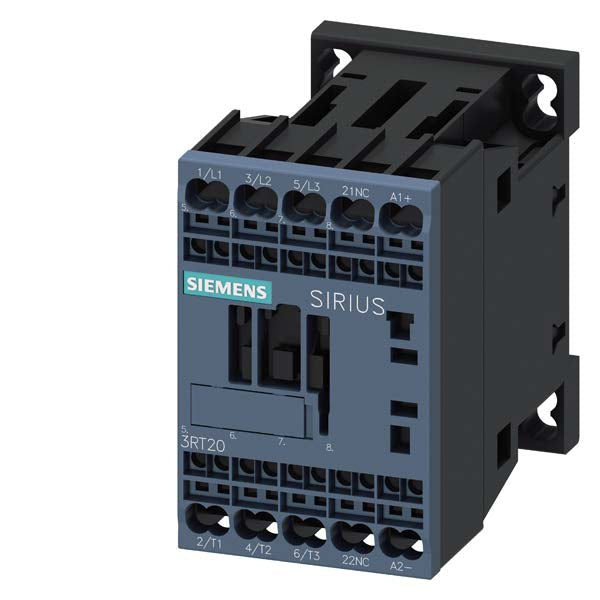

3RT2017-2BM42 is a Siemens SIRIUS 3RT2 power contactor designed for motor control applications.This 3-pole contactor features a 12 ampere rating with an AC-3 utilization category, suitable for controlling motors up to 5.5 kW at 400 V. It operates with a 220 V DC coil and includes one normally closed (1 NC) auxiliary contact. The device uses spring-loaded terminals and is built on the compact S00 frame size, supporting switching voltages up to 690 VAC.
- Key Specifications
- Manufacturer: Siemens
- Part Number: 3RT2017-2BM42
- Poles: 3
- Current Rating: 12 A (AC-3)
- Coil Voltage: 220 V DC
- Power Rating: 5.5 kW at 400 V
- Auxiliary Contacts: 1 Normally Closed (1 NC)
- Frame Size: S00
- Terminal Type: Spring-loaded
- Maximum Switching Voltage: 690 VAC
- Part Number: 3RT2017-2BM42
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 220
- UPC : 066264391167
- GTIN : 00662643911671
- Weight : 2
