Description
3RT2017-1VB41

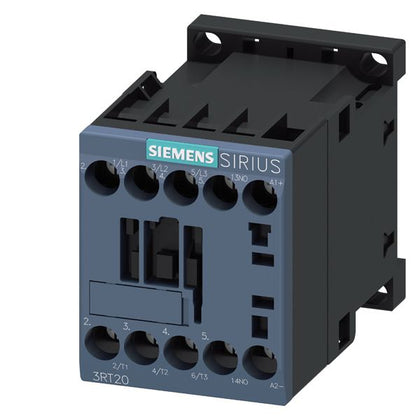

3RT2017-1VB41 is a Siemens SIRIUS power contactor designed for AC-3 motor control applications with a rated current of 12 A and power rating of 5.5 kW at 400 V. This 3-pole contactor features 24 V DC control voltage with an integrated diode and one normally open auxiliary contact. The unit is equipped with screw terminals for secure connection and operates across a control voltage range of 0.85-1.85 times the rated control voltage. Built as part of the SIRIUS Size S00 contactor family, it delivers reliable performance for direct connection to motors and auxiliary control circuits.
- Rated Current: 12 A
- Rated Power: 5.5 kW at 400 V
- Configuration: 3-pole
- Control Voltage: 24 V DC
- Auxiliary Contacts: 1 NO (normally open)
- Switching Voltage: 690 VAC maximum
- Termination: Screw terminal
- Integrated Diode: Yes
- Control Voltage Range: 0.85-1.85 Uc
- Product Series: SIRIUS 3RT2 Size S00
- Application: AC-3e/AC-3 motor control
Specifications
- Part Number: 3RT2017-1VB41
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
Product Data
- UPC : 066264391140
- GTIN : 00662643911404
- Weight : 2
