Description
3RT2017-1QB42

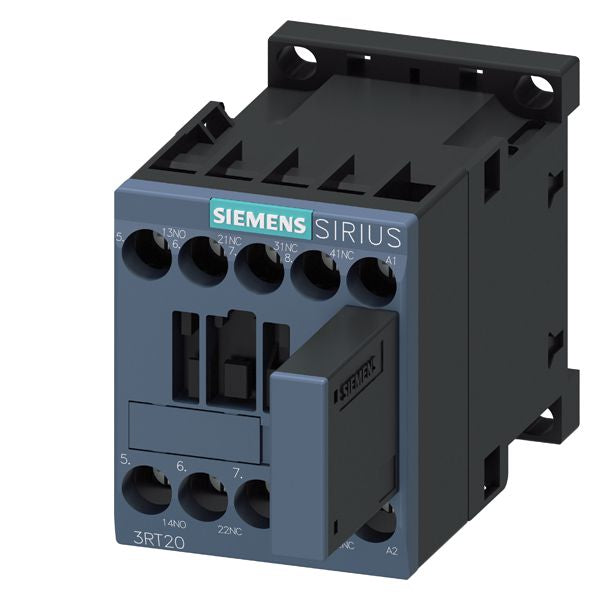

3RT2017-1QB42 is a Siemens 3-pole motor contactor designed for reliable motor control applications.3RT2017-1QB42 features a 24 V DC coil voltage and is rated for 12 amps with an AC-3 utilization category. It supports motor loads up to 5.5 kW at 400 V and includes one normally closed (1 NC) auxiliary contact. The contactor has a size S00 frame with screw terminals and comes with a varistor plugged on for coil protection.
- 3 poles
- 12 A rated current
- 24 V DC coil voltage
- 5.5 kW motor rating at 400 V AC
- AC-3 utilization category
- 1 normally closed auxiliary contact
- Size S00 frame
- Screw terminal connection
- Varistor plugged on coil for protection
Specifications
- Part Number: 3RT2017-1QB42
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- UPC : 066264391137
- GTIN : 00662643911374
- Weight : 1
