Description

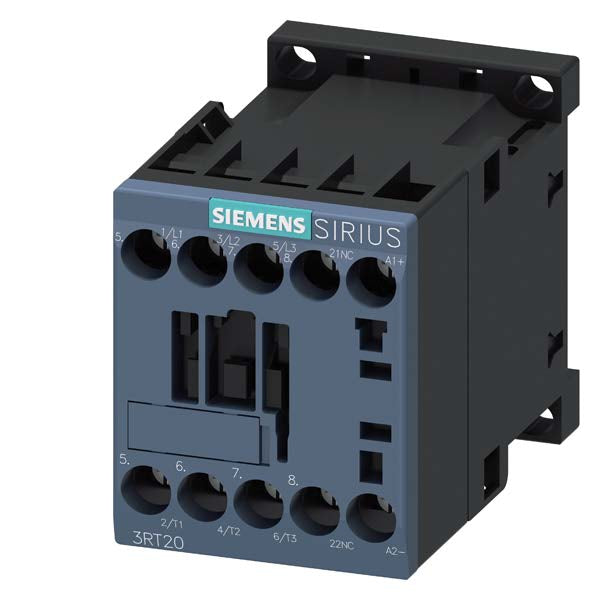

3RT2017-1HB42
3RT2017-1HB42 is a Siemens SIRIUS power contactor designed for reliable motor control in industrial applications. This contactor features a 24V DC control coil and is rated for 12A operational current at 400V, making it suitable for motors up to 5.5kW. It is a 3-pole device with a 1 NC auxiliary contact, built in the compact S00 frame for efficient DIN rail mounting. The 3RT2017-1HB42 offers robust performance for AC-3 and AC-3e duty, with a wide control voltage operating range and high mechanical and electrical endurance. Its screw terminal design ensures secure connections, and the device is suitable for use with PLC outputs and standard control circuits.
- Rated operational current: 12A
- Rated voltage: 400V AC
- Number of poles: 3
- Control supply voltage: 24V DC
- Mounting style: DIN rail
- Frame size: S00
- Auxiliary contacts: 1 NC
- Power rating: 5.5kW at 400V
- Terminal type: Screw terminal
- Suitable for AC-3 and AC-3e duty
- High mechanical endurance
- Compact design for space-saving installation
Specifications
- Part Number: 3RT2017-1HB42
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
Product Data
- UPC : 066264391129
- GTIN : 00662643911299
- Weight : 0.6512
