Description

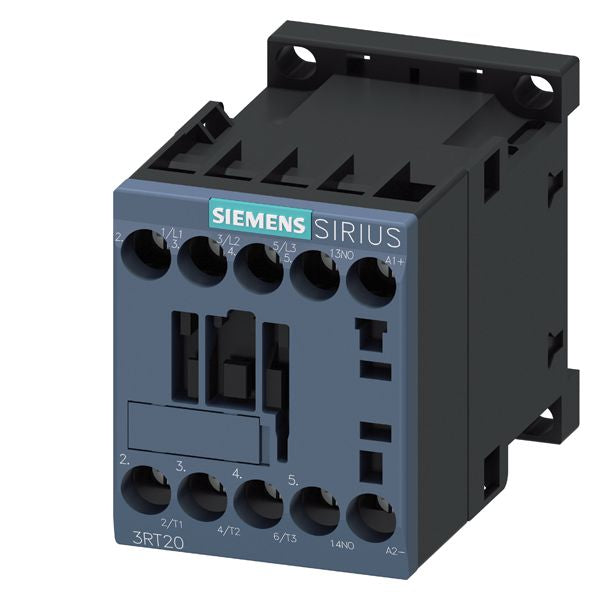

3RT2017-1BP41
3RT2017-1BP41 is a Siemens Sirius 3-pole IEC power contactor designed for motor control applications. This S00 frame contactor delivers reliable performance in industrial motor starter configurations with screw terminal connections and DIN rail mounting capability. 3RT2017-1BP41 specifications include 12 amperes AC-3 rated current, 22 amperes AC-1 rated current, 230 volt DC coil voltage, and one normally open auxiliary contact. The contactor is rated for 3 horsepower at 230 volts and 7.5 horsepower at 460 volts three-phase operation. It features screw terminals for secure wire connections and can be mounted on DIN rail or directly with screws. The unit conforms to IEC 60946 standards and serves as a direct replacement for the obsolete 3RT1017-1BP41 model. Accessory options include front and side mounted auxiliary contact blocks along with thermal and electronic overload relays to complete a full motor starter assembly.
- Amperage Rating: 12A AC-3, 22A AC-1
- Coil Voltage: 230V DC
- Number of Poles: 3
- Auxiliary Contacts: 1 NO (Normally Open)
- Frame Size: S00
- Terminal Type: Screw
- Mounting: DIN rail or screw mounted
- Horsepower Ratings: 3 HP @ 230V, 7.5 HP @ 460V three-phase
- Power Rating: 5.5 kW @ 400V
- Standards: IEC 60946 compliant
Specifications
- Part Number: 3RT2017-1BP41
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 230
Product Data
- UPC : 004089295747
- GTIN : 00040892957471
- Weight : 2
