Description

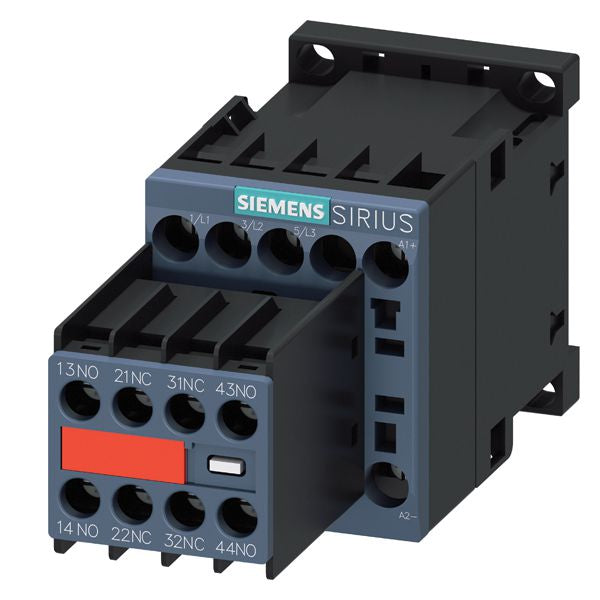

3RT2017-1BB44-3MA0
3RT2017-1BB44-3MA0 is a Siemens SIRIUS power contactor designed for reliable motor control applications. This contactor features a 24 VDC coil, 12 A current rating, and is suitable for switching motors up to 5.5 kW at 400 V. It is a 3-pole device with 2 normally open and 2 normally closed auxiliary contacts, making it ideal for industrial automation and motor control circuits. The contactor is built to the SIRIUS S00 frame size and is designed for DIN rail or vertical mounting. It offers screw terminal connections for secure wiring and is rated for a maximum switching voltage of 690 VAC. The device is engineered for robust performance in demanding environments, with an operating temperature range from -25°C to 60°C.
- Manufacturer: Siemens
- Series/Frame: SIRIUS S00
- Amperage: 12 A
- Voltage: 24 VDC coil, 690 VAC max switching
- Poles: 3
- Mounting Type: 35 mm DIN rail or vertical
- Termination Style: Screw terminal
- Auxiliary Contacts: 2NO + 2NC
- Motor Rating: 5.5 kW at 400 V
- Application: Motor control, industrial automation
- Operating Temperature: -25°C to 60°C
- Compliance: ARRA, Buy American
Specifications
- Part Number: 3RT2017-1BB44-3MA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- UPC : 786685584126
- GTIN : 00786685584126
- Weight : 2
