Description
3RT20161BB42

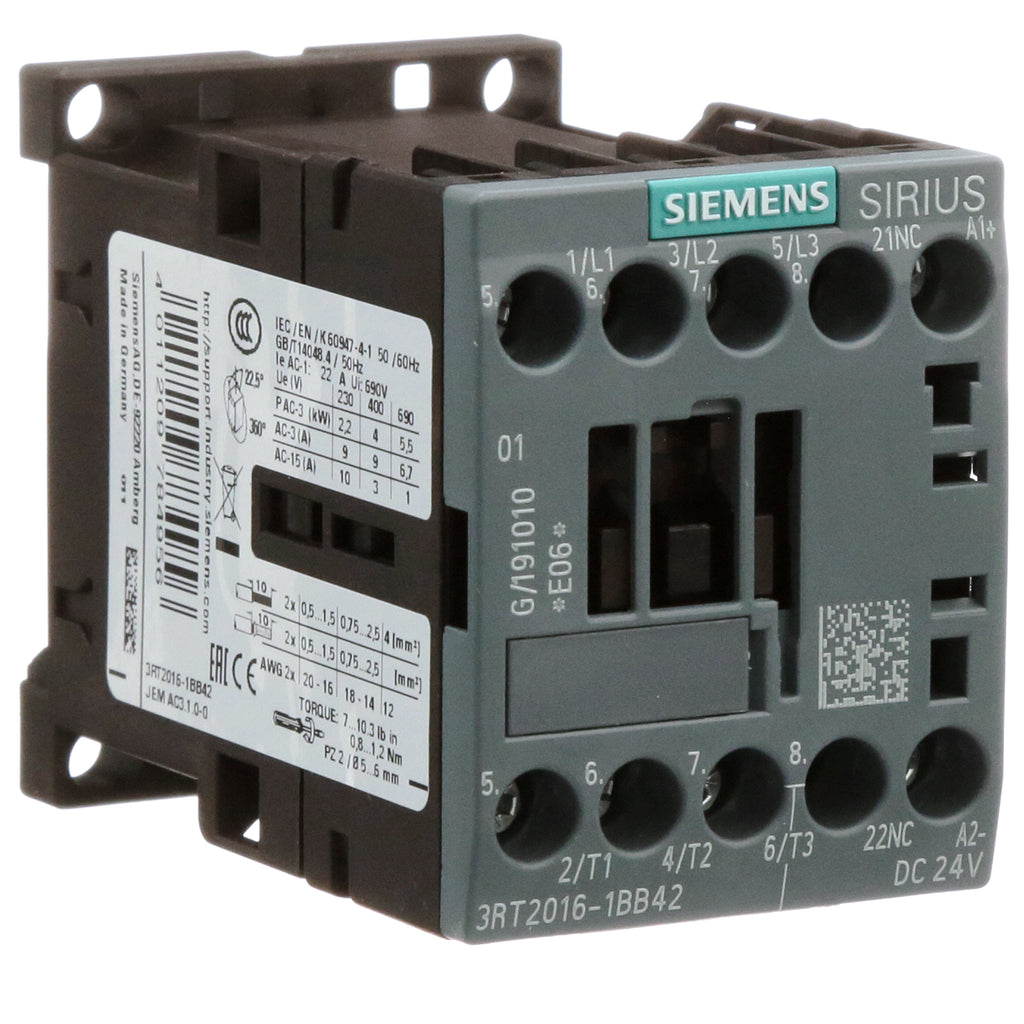

3RT2016-1BB42 is a Siemens SIRIUS 3-pole power contactor designed for reliable motor control and industrial applications. This contactor features a 24VDC coil, 9A load current, and 1 normally closed (NC) auxiliary contact for versatile control circuit integration. Engineered for durability and safety, it is suitable for AC-3 and AC-3e duty with a compact S00 frame size. The 3RT2016-1BB42 offers robust performance with screw terminal connections for secure wiring and easy installation. It is rated for frequent switching operations and is ideal for use in motor starters, control panels, and automation systems. The contactor is designed to meet international standards for industrial reliability and safety.
- Part Number: 3RT2016-1BB42
- Manufacturer: Siemens
- Series/Frame: SIRIUS S00
- Amperage: 9 A
- Coil Voltage: 24 VDC
- Poles: 3
- Mounting Type: Screw Terminal
- Interrupt Rating: 4 kW / 400 V AC-3
- Auxiliary Contacts: 1 NC
- Operating Frequency: 750 1/h AC-3
- Short-Time Withstand Current: 155 A (1 s)
- Standards: IEC/EN 60947-4-1
Specifications
- Part Number: 3RT20161BB42
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Draw-Out
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- UPC : 662643907797
- GTIN : 4011209784956
- Country of Origin : Germany
- Dimensions : 2.421 x 1.969 x 3.051 inch
- Weight : 0.644 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
