Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20161AK61

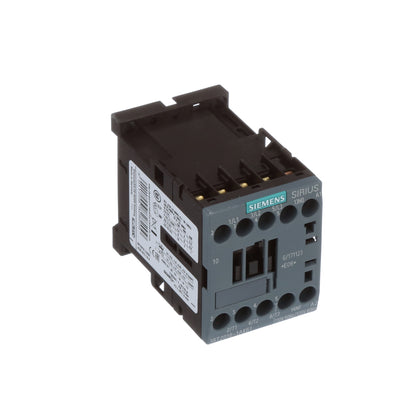

3RT20161AK61 is a Siemens 9 amp, 3-pole power contactor with a 110/120V AC coil designed for motor control applications.This Siemens contactor features a 3-pole design with 1 normally open auxiliary contact, suitable for switching motors up to 4 kW at 400 V, with a coil voltage of 110/120 V AC at 50/60 Hz frequency.
- Rated current: 9 A (AC-3)
- Coil voltage: 110/120 V AC, 50/60 Hz
- Number of poles: 3
- Auxiliary contacts: 1 normally open (NO)
- Power rating: 4 kW at 400 V
- Mounting type: DIN rail or screw mount
- Frame size: S00
- Contact configuration: 1 NO
- Terminal type: Screw terminals
- Operating temperature range: -25 to 60 °C
- Short-circuit protection coordination: gG fuse links up to 35 A at 690 V
- Certifications: IEC compliant, UL A600/Q600 contact rating
Specifications
- Part Number: 3RT20161AK61
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
Product Data
- UPC : 662643907681
- GTIN : 662643907681
- Country of Origin : Germany
- Dimensions : 2.421 x 1.969 x 3.051 inch
- Weight : 0.509 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
