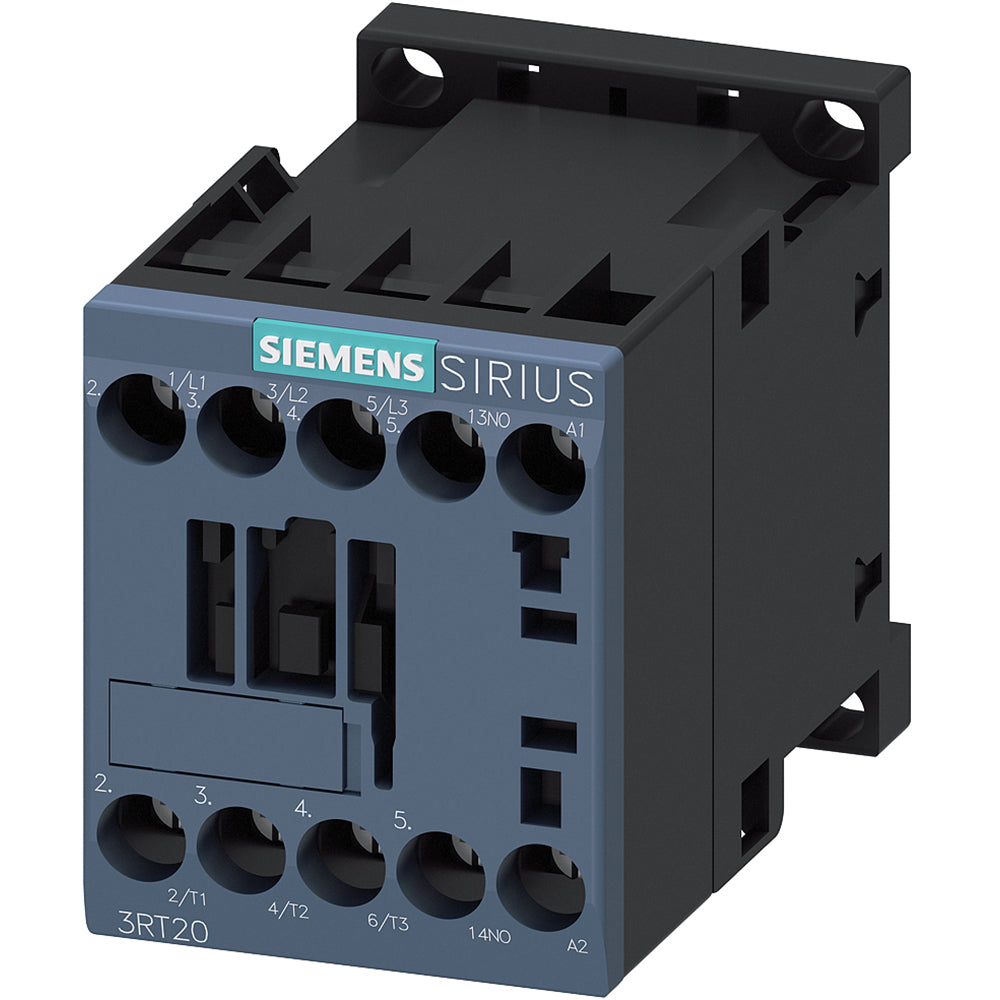

3RT20161AG61 - Siemens 9A 3-Pole Power Contactor AC-3 4kW 400V 110V Coil Screw Terminal S00 Frame

3RT20161AG61

3RT20161AG61 is a Siemens 3-pole power contactor designed for motor control applications with a 9 amp AC-3 rating and a 4 kW power rating at 400 volts.This contactor features a 3 normally open main contact configuration, a coil voltage rated at 100-110 V AC for 50/60 Hz operation, and screw terminal connections. It is part of the Siemens Sirius series, frame size S00, suitable for DIN rail or screw mounting. The device supports switching voltages up to 690 VAC and is ideal for controlling motors up to 4 kW at 400 V.

Key Specifications
• Rated Current: 9 Amps AC-3
• Power Rating: 4 kW at 400 V
• Number of Poles: 3 (3PST-NO)
• Coil Voltage: 100-110 V AC, 50/60 Hz
• Contact Configuration: 3 Normally Open (NO)
• Termination Style: Screw terminals
• Frame Size: S00
• Mounting Type: DIN rail or screw mount
• Max Switching Voltage: 690 VAC
• Series: Siemens Sirius
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 3RT20161AG61
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactors
• Section : Contactors



Product Data

• UPC : 662643907643
• Country of Origin : Germany
• Dimensions : 2.421 x 1.969 x 3.051 inch
• Weight : 0.507
