2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20161AB01

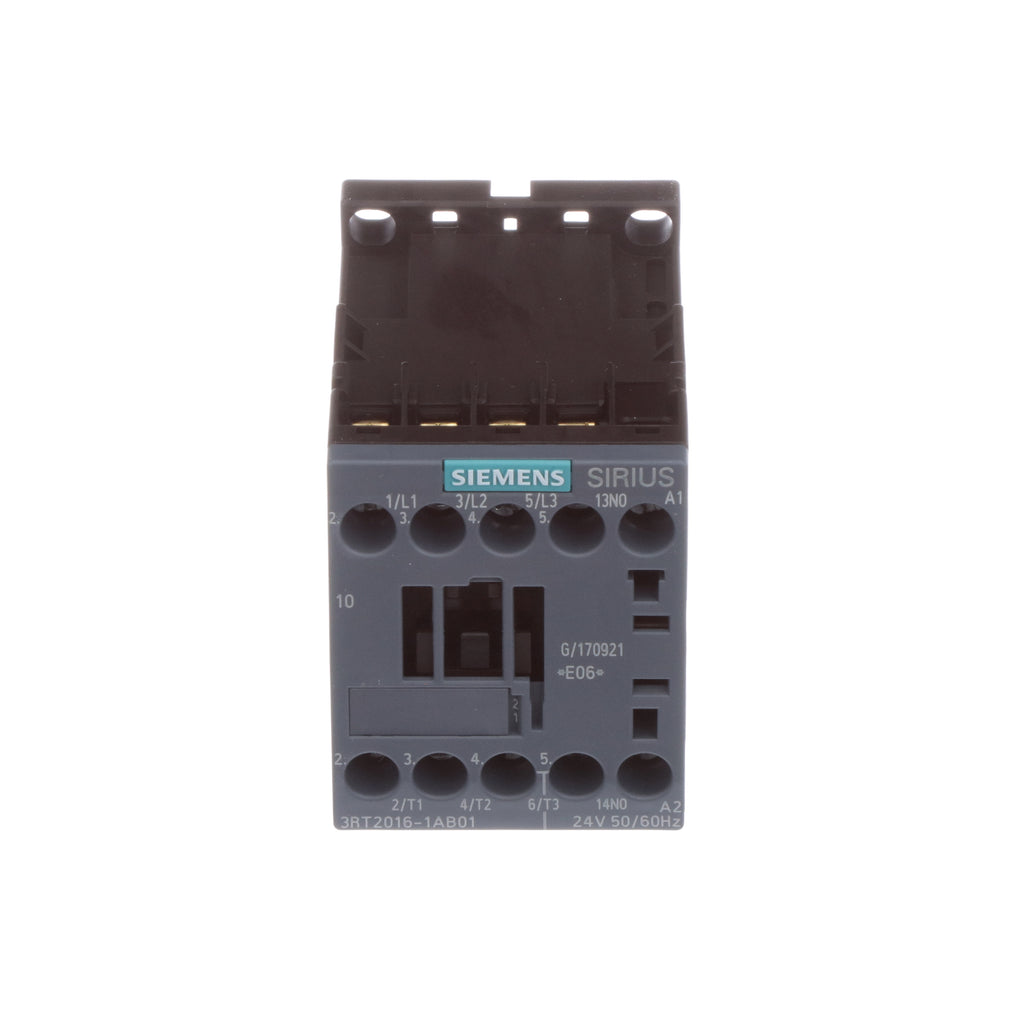

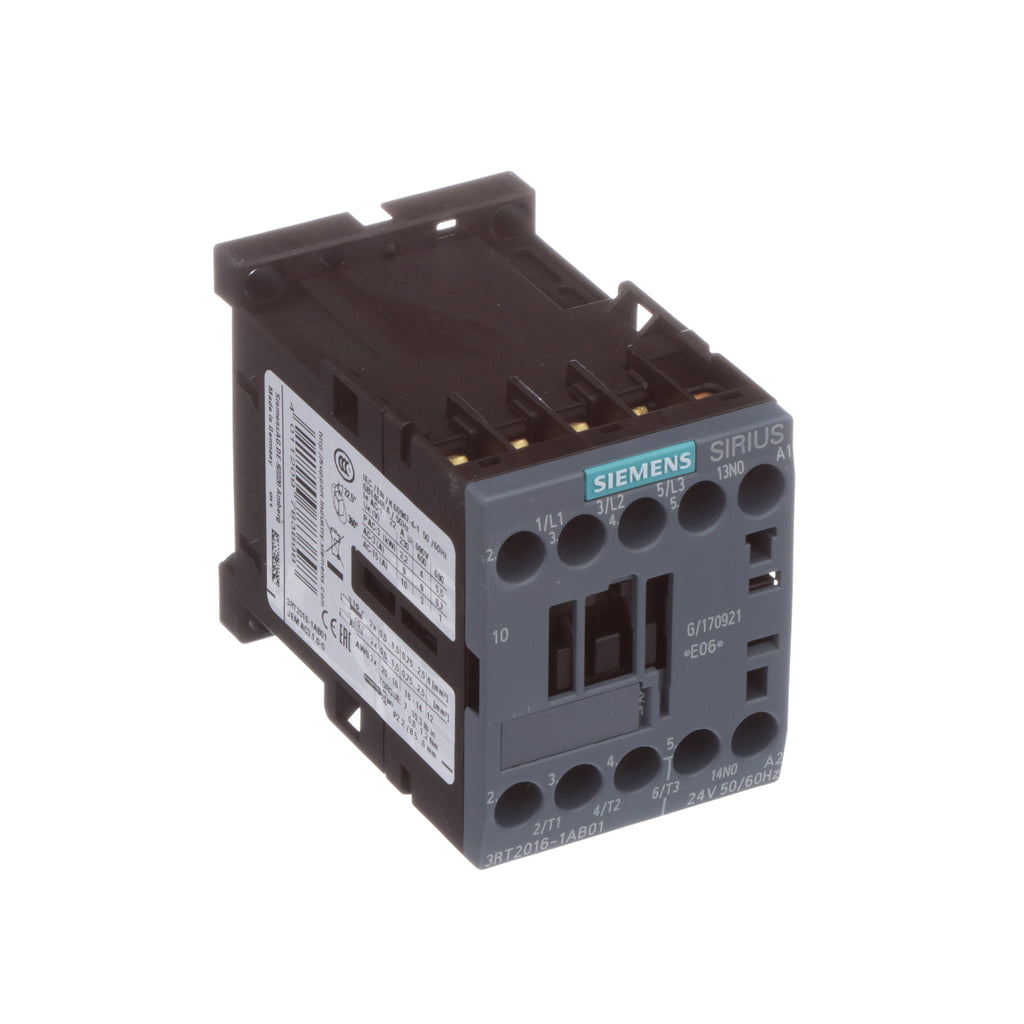

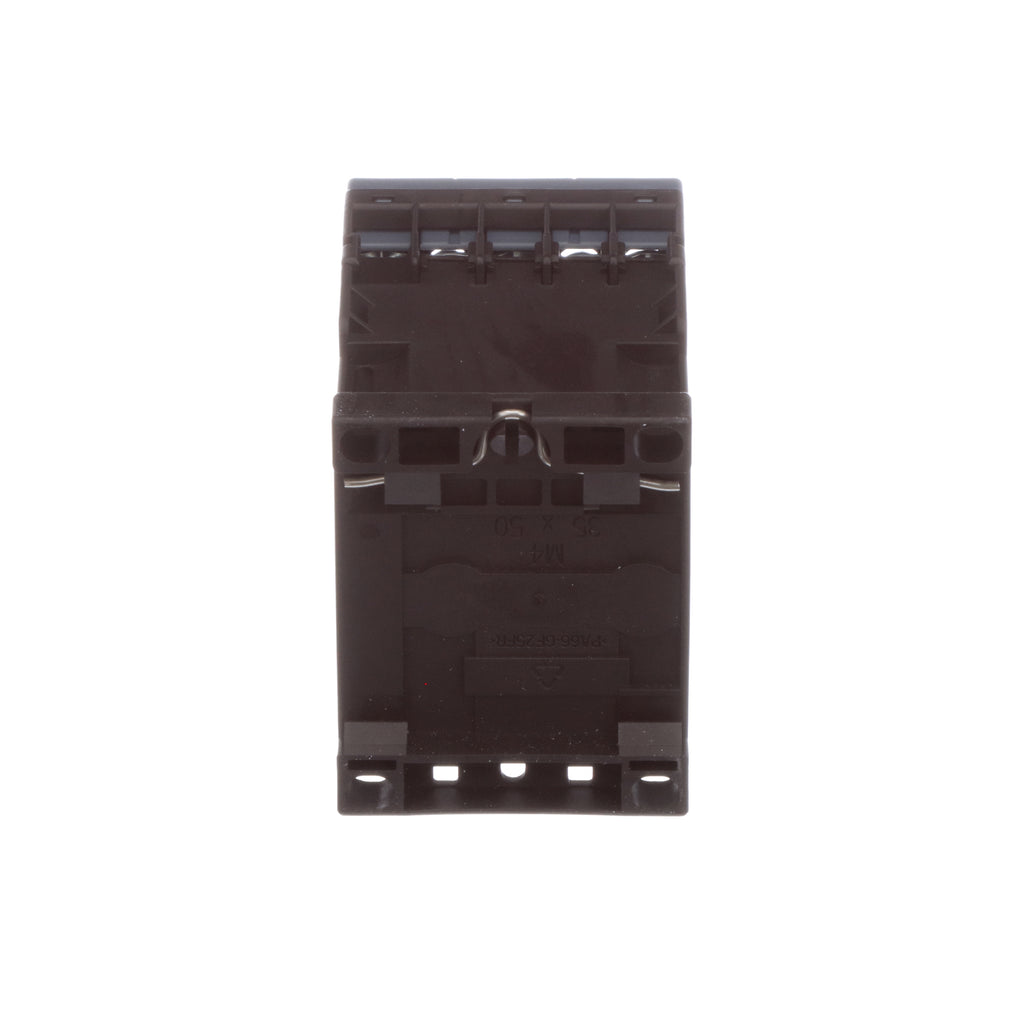

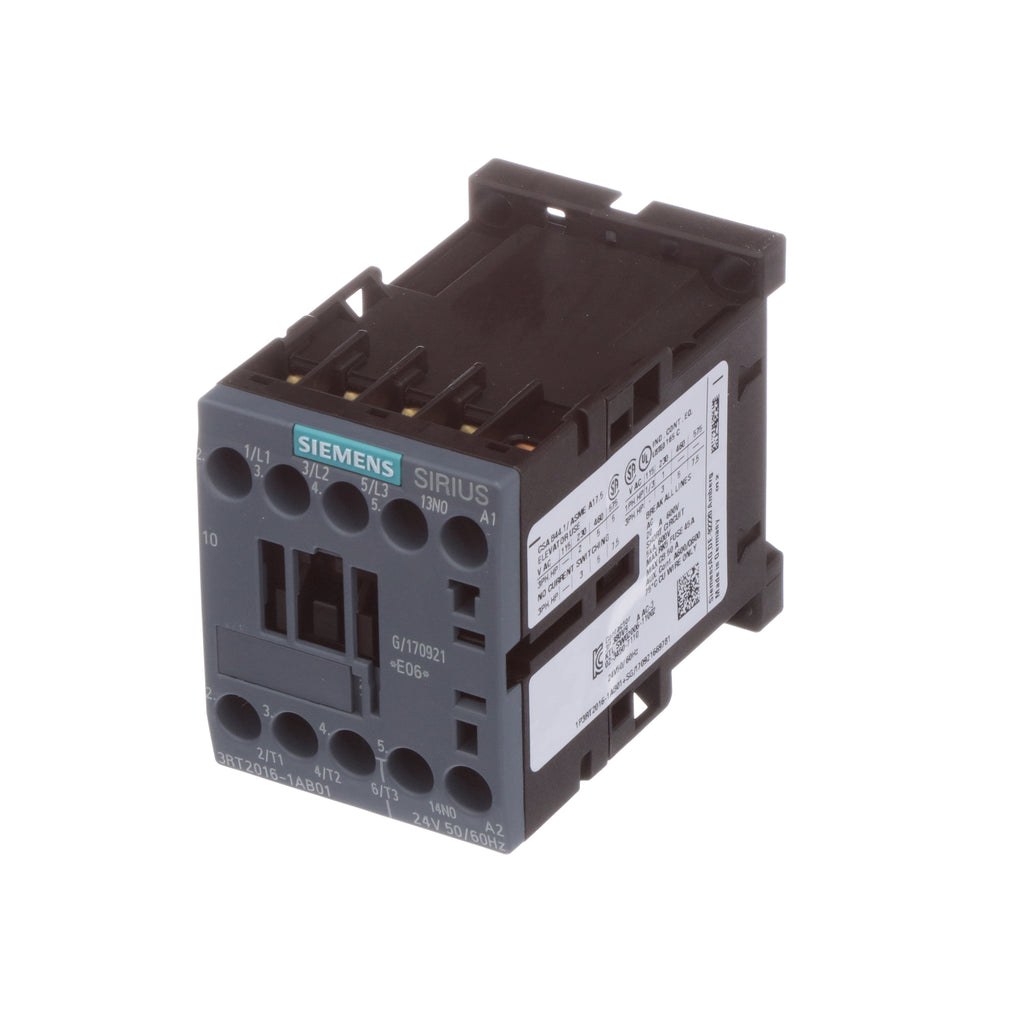

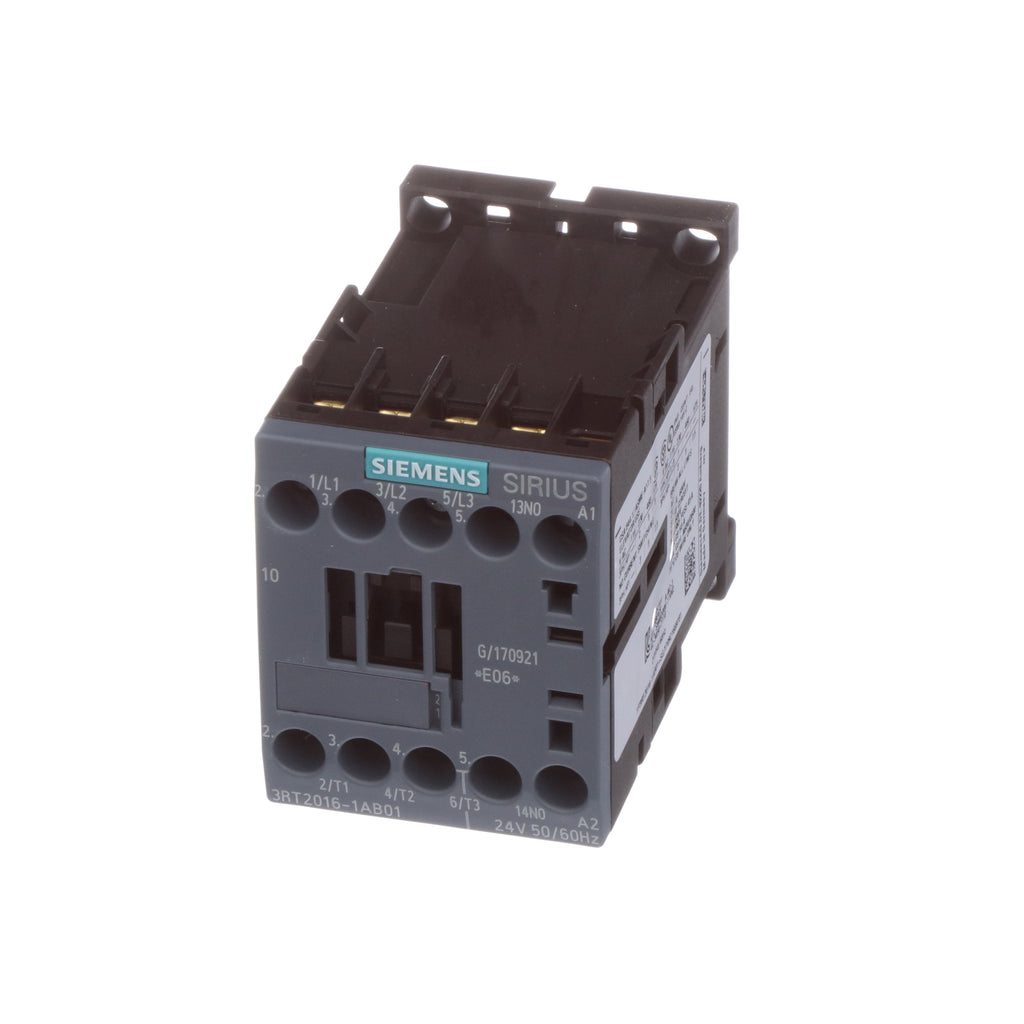

3RT20161AB01 is a Siemens SIRIUS power contactor designed for motor control applications with a 9 Ampere rating and 24 VAC coil voltage.3RT20161AB01 features a 3-pole configuration with 1 normally open auxiliary contact, suitable for AC-3 applications up to 4 kW at 400 V. It has a compact S00 frame size, screw terminal connections, and an IP20 enclosure rating. The contactor supports 50/60 Hz operation with coil power ratings of 27 VA (pick-up) and 4.2 VA (holding). It is rated for up to 30 million operating cycles and operates reliably in temperatures from -25 to 60 degrees Celsius. Mounting options include DIN rail, snap-on, or threaded mounting.
- Amperage: 9 A
- Voltage: 24 VAC coil
- Poles: 3
- Contact Configuration: 1 NO auxiliary contact
- Frame Size: S00
- Enclosure Type: IP20
- Mounting Type: DIN rail, snap-on, threaded
- Power Rating: 4 kW / 400 V AC-3
- Coil Power: 27 VA pick-up, 4.2 VA holding
- Operating Temperature: -25 to 60 °C
- Terminal Type: Screw
- Operating Cycles: 30,000,000
Specifications
- Part Number: 3RT20161AB01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Type : 3RT Series
Product Data
- UPC : 662643907582
- GTIN : 00662643907582
- Country of Origin : Germany
- Dimensions : 2.421 x 1.969 x 3.051 inch
- Weight : 0.509 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
