2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Description
3RT2016-2BB44

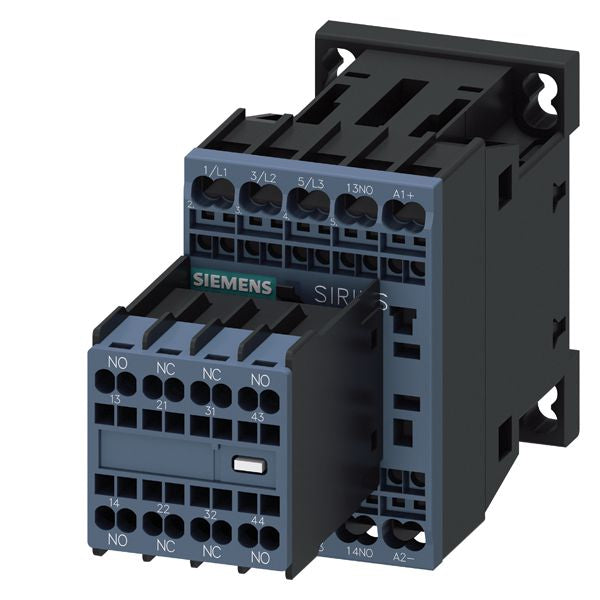

3RT2016-2BB44 is a Siemens SIRIUS power contactor designed for motor control applications.This 3-pole contactor features a 9 ampere rating for AC-3 utilization and supports loads up to 4 kW at 400 V. It operates with a 24 V DC control voltage and includes 2 normally open (NO) plus 2 normally closed (NC) auxiliary contacts. The device is built with a size S00 frame and uses spring-loaded terminals for reliable connections. It also has a captive auxiliary switch suitable for SUVA applications.
- Manufacturer: Siemens
- Part Number: 3RT2016-2BB44
- Product Family: SIRIUS
- Poles: 3
- Rated Current: 9 A (AC-3)
- Power Rating: 4 kW at 400 V
- Control Voltage: 24 V DC
- Auxiliary Contacts: 2 NO + 2 NC
- Mounting Size: S00
- Terminal Type: Spring-loaded
- Captive Auxiliary Switch Included
Specifications
- Part Number: 3RT2016-2BB44
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
Product Data
- UPC : 004089295787
- GTIN : 00040892957877
- Weight : 1
