Description

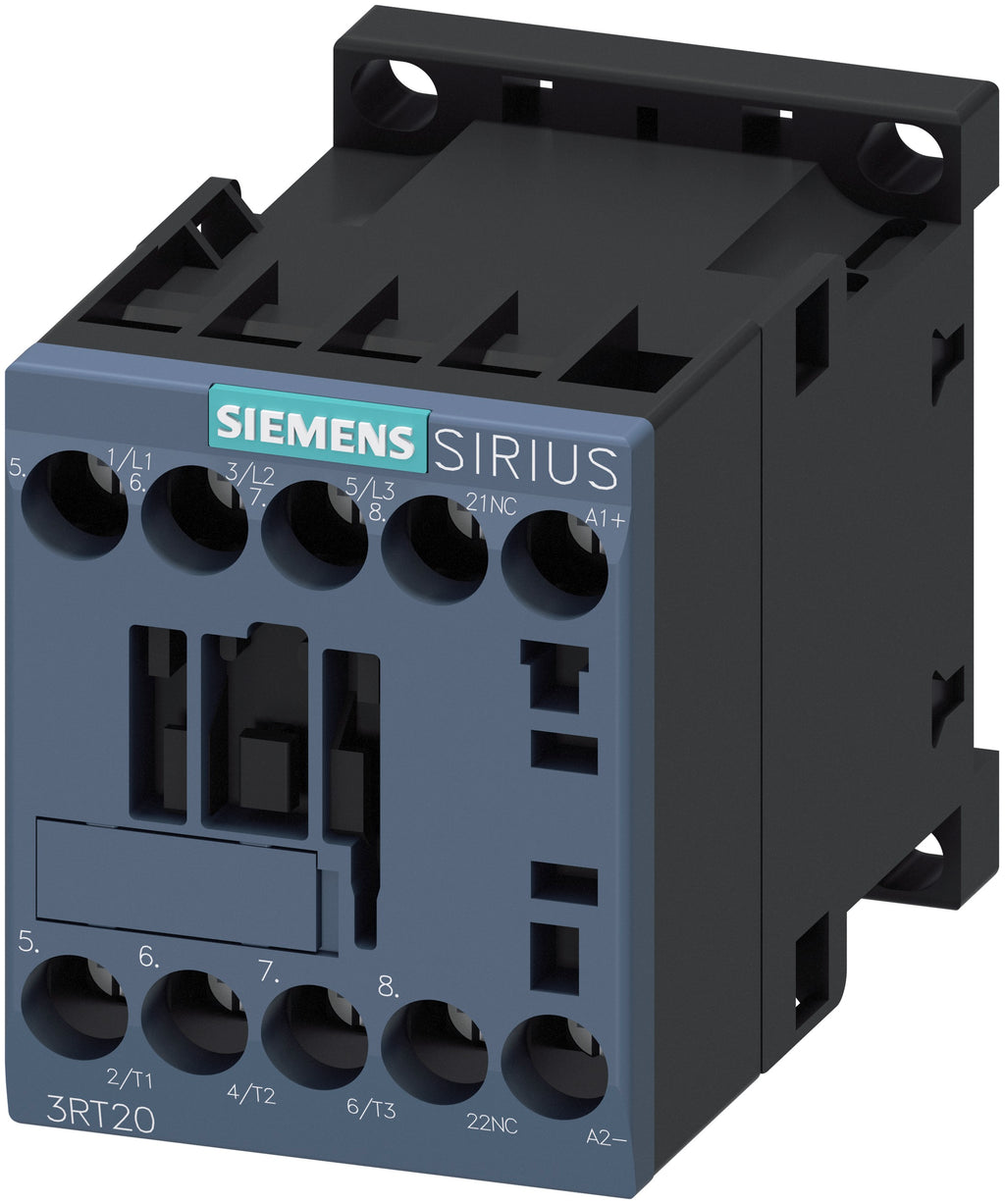

3RT2016-1BB42
3RT2016-1BB42 is a Siemens 3-pole motor contactor designed for controlling electric motors with a 24V DC coil voltage.This Siemens Sirius power contactor features a 9 ampere rating, suitable for AC-3 applications up to 4 kW at 400 V. It includes one normally closed (1NC) auxiliary contact and uses screw terminals for secure wiring. The contactor is sized S00 and mounts on a standard 35 mm DIN rail with screw or snap-on options. It conforms to IEC 60946 standards and is rated for reliable motor control in industrial environments.
- Key Specifications
- Rated current: 9 A
- Voltage rating: up to 400 V AC
- Poles: 3
- Coil voltage: 24 V DC
- Auxiliary contacts: 1 normally closed (1NC)
- Mounting type: 35 mm DIN rail, screw/snap-on
- Frame size: S00
- Enclosure rating: IP20
- Standards: IEC 60946 compliant
- Terminal type: Screw terminals
Specifications
- Part Number: 3RT2016-1BB42
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
- Coil Voltage Maximum : 24
Product Data
- UPC : 66264390779
- GTIN : 00662643907797
- Weight : 0.6424
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
