Description
3RT2016-1AK61

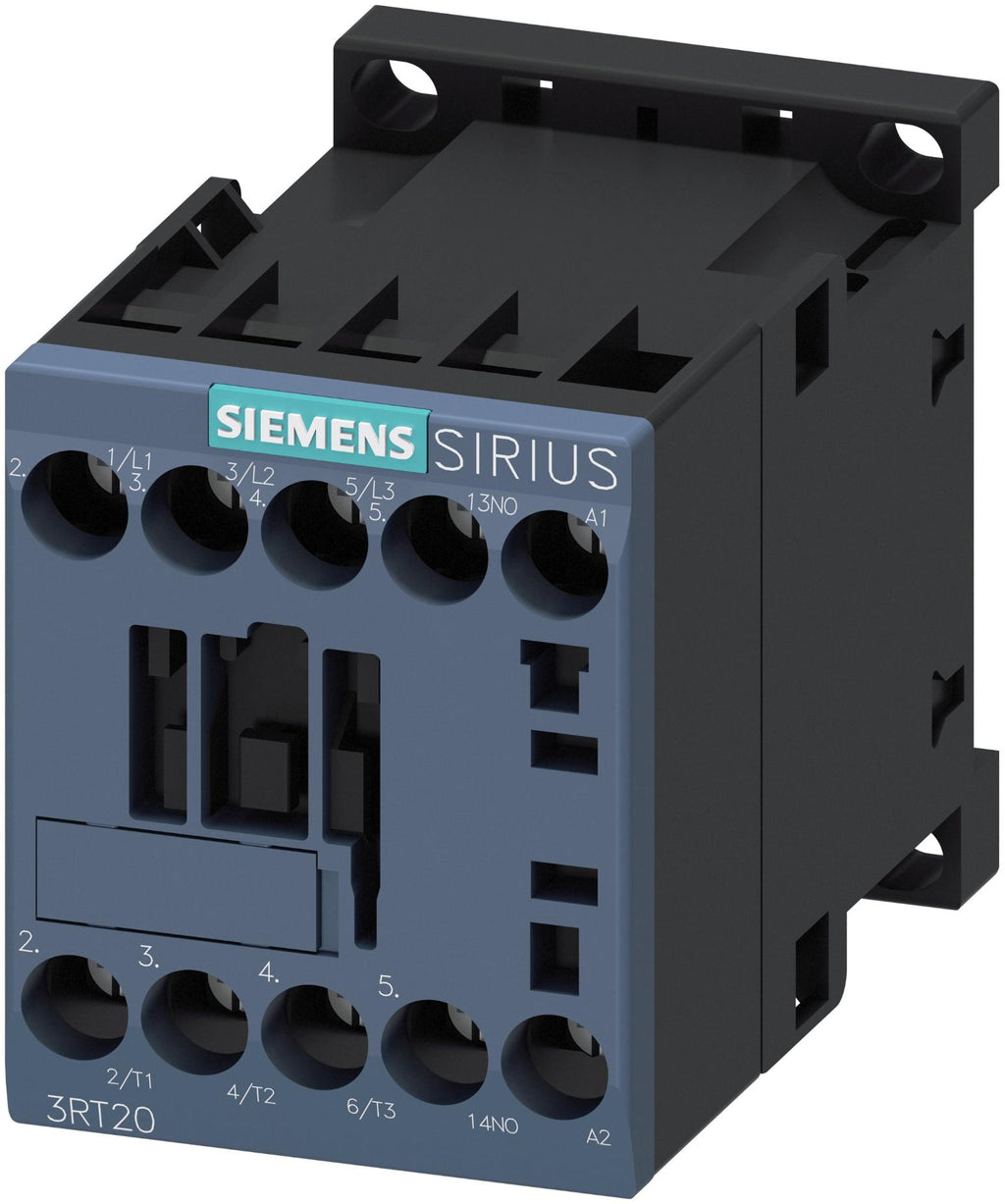

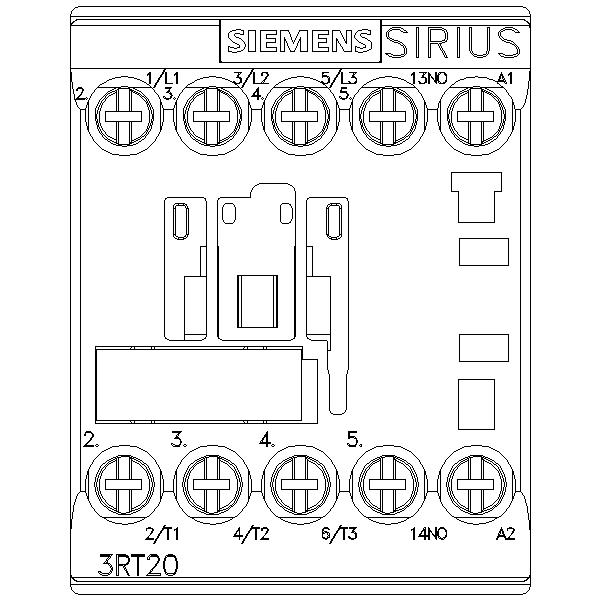

3RT2016-1AK61 is a Siemens Sirius 3-pole IEC power contactor designed for reliable motor control applications. This contactor features a 110/120V AC coil, 9A maximum load current, and is suitable for switching motors up to 3 HP at 230V and 5 HP at 460V. It is built for durability with a robust S00 frame and offers versatile mounting options including DIN rail or screw mounting. The unit includes one normally open (1NO) auxiliary contact for additional control flexibility. Engineered for industrial environments, the 3RT2016-1AK61 contactor delivers high operational reliability with a long electrical life and is compatible with a wide range of Siemens accessories for complete motor starter solutions. Its compact design and screw terminals make installation and maintenance straightforward.
- Manufacturer: Siemens
- Part Number: 3RT2016-1AK61
- Series/Frame: Sirius S00
- Number of Poles: 3
- Maximum Load Current: 9 A
- Coil Voltage: 110/120 V AC
- Frequency: 50/60 Hz
- Mounting Type: DIN Rail or Screw Mount
- Terminal Type: Screw
- Wattage: 4 kW at 400 V
- HP Rating: 3 HP at 230 V, 5 HP at 460 V
- Auxiliary Contacts: 1 NO
Specifications
- Part Number: 3RT2016-1AK61
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
Product Data
- UPC : 662643907681
- GTIN : 00662643907681
- Weight : 0.506
- Certification : Ul Listed Csa Certified Ce Marked
