Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20151AK62

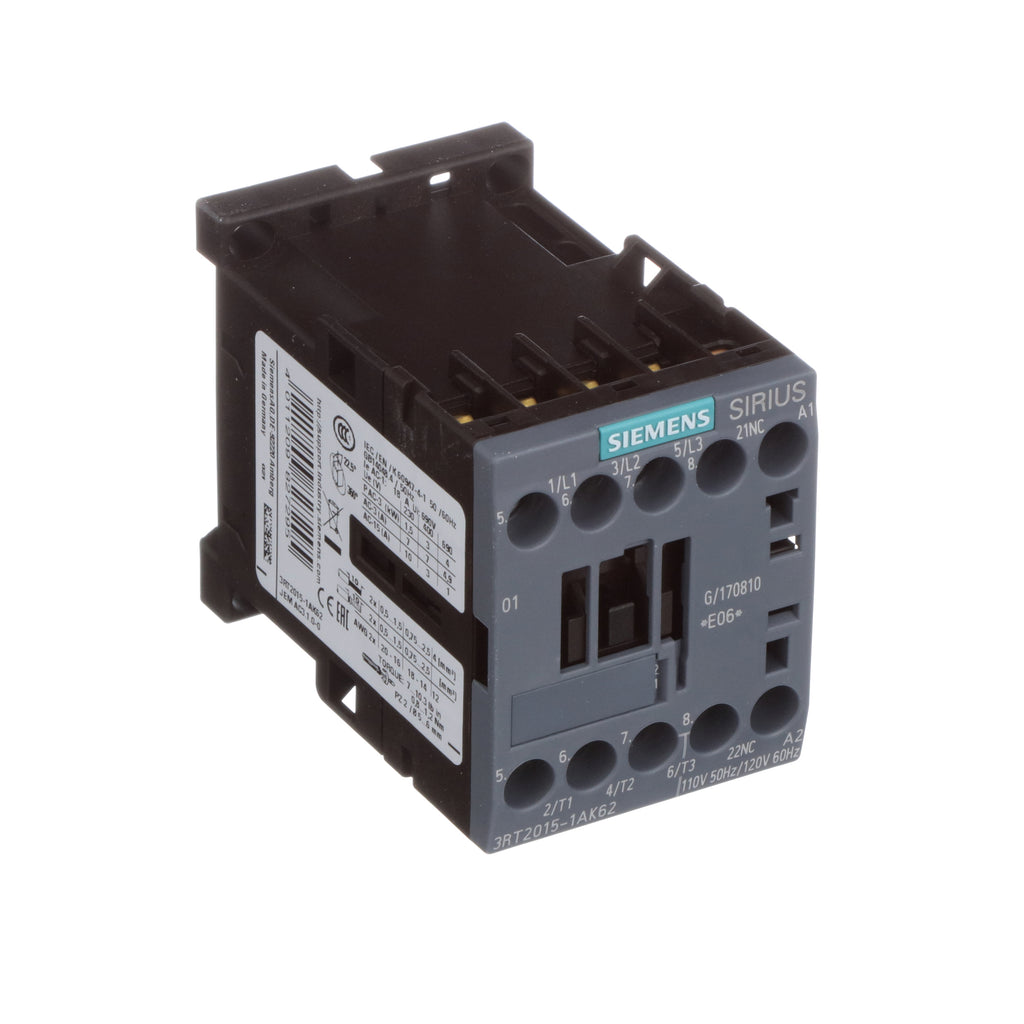

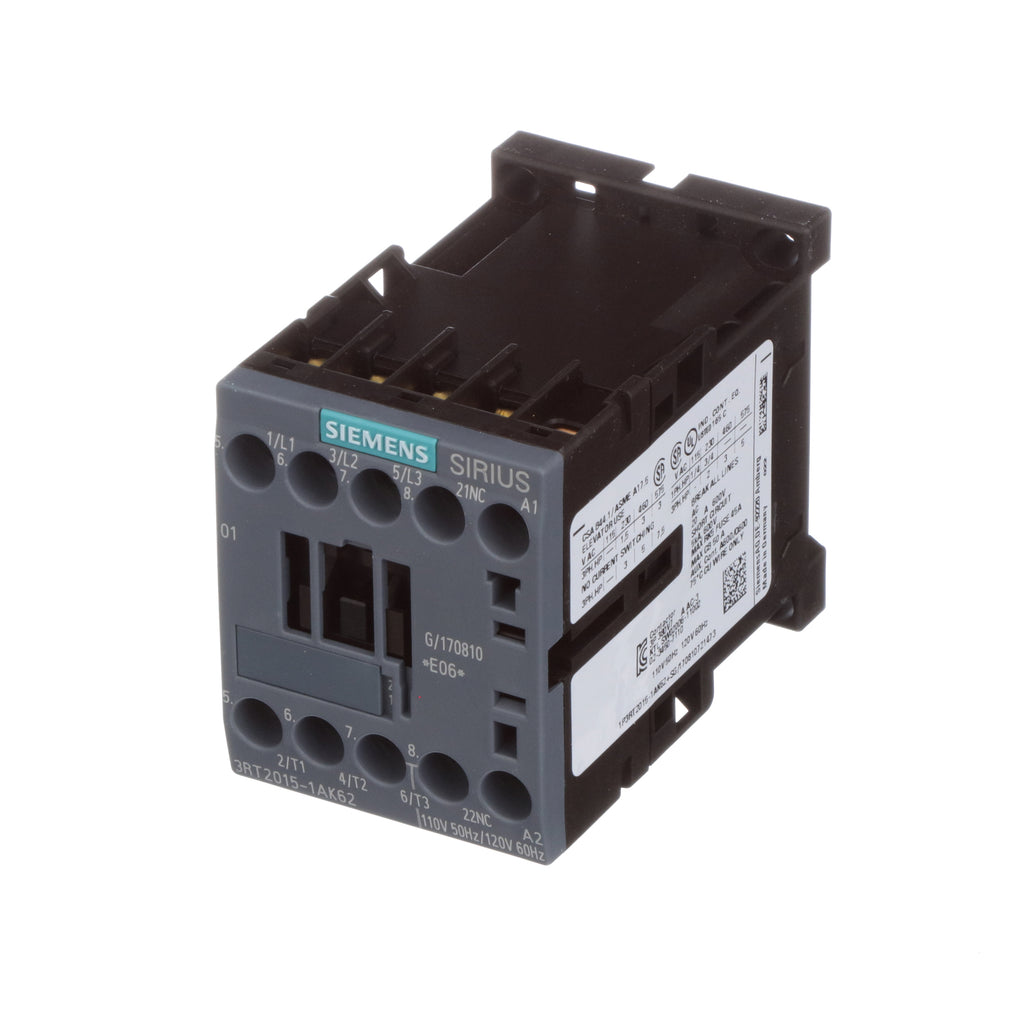

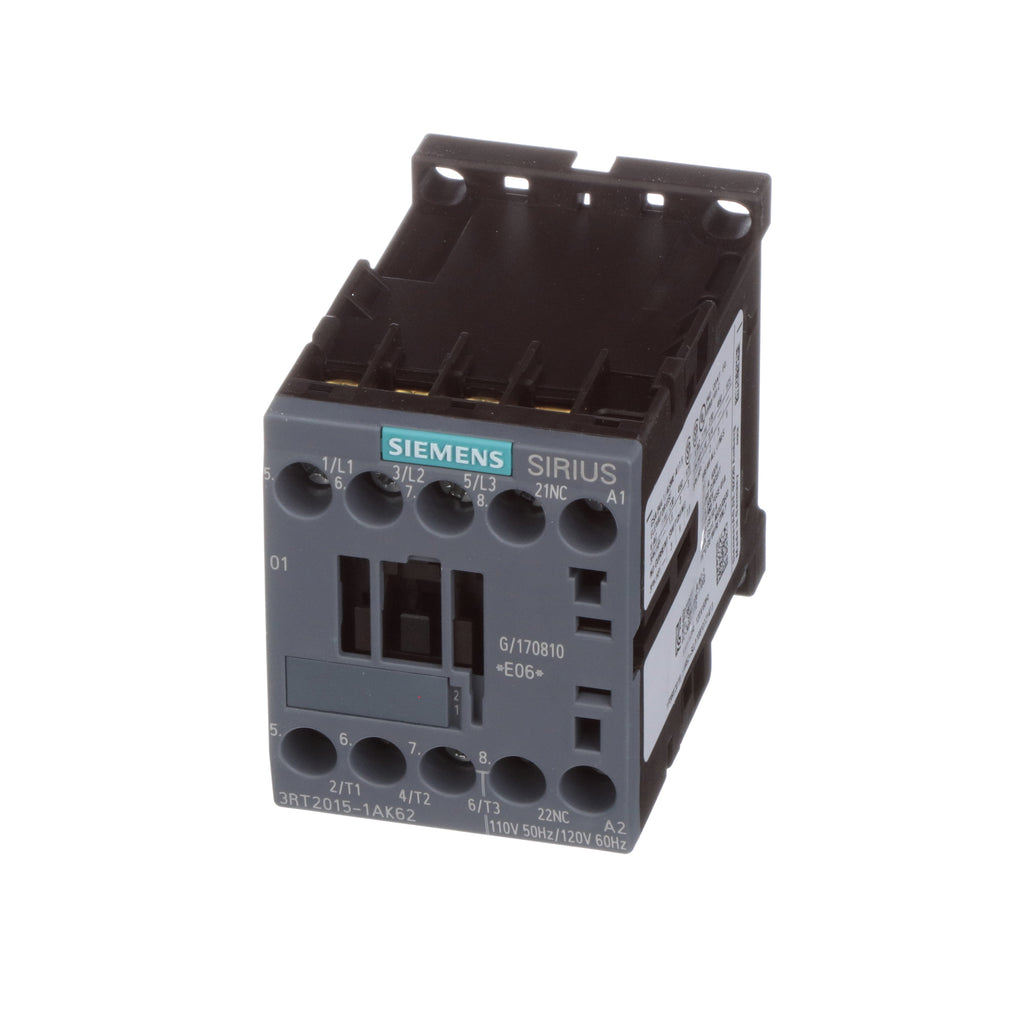

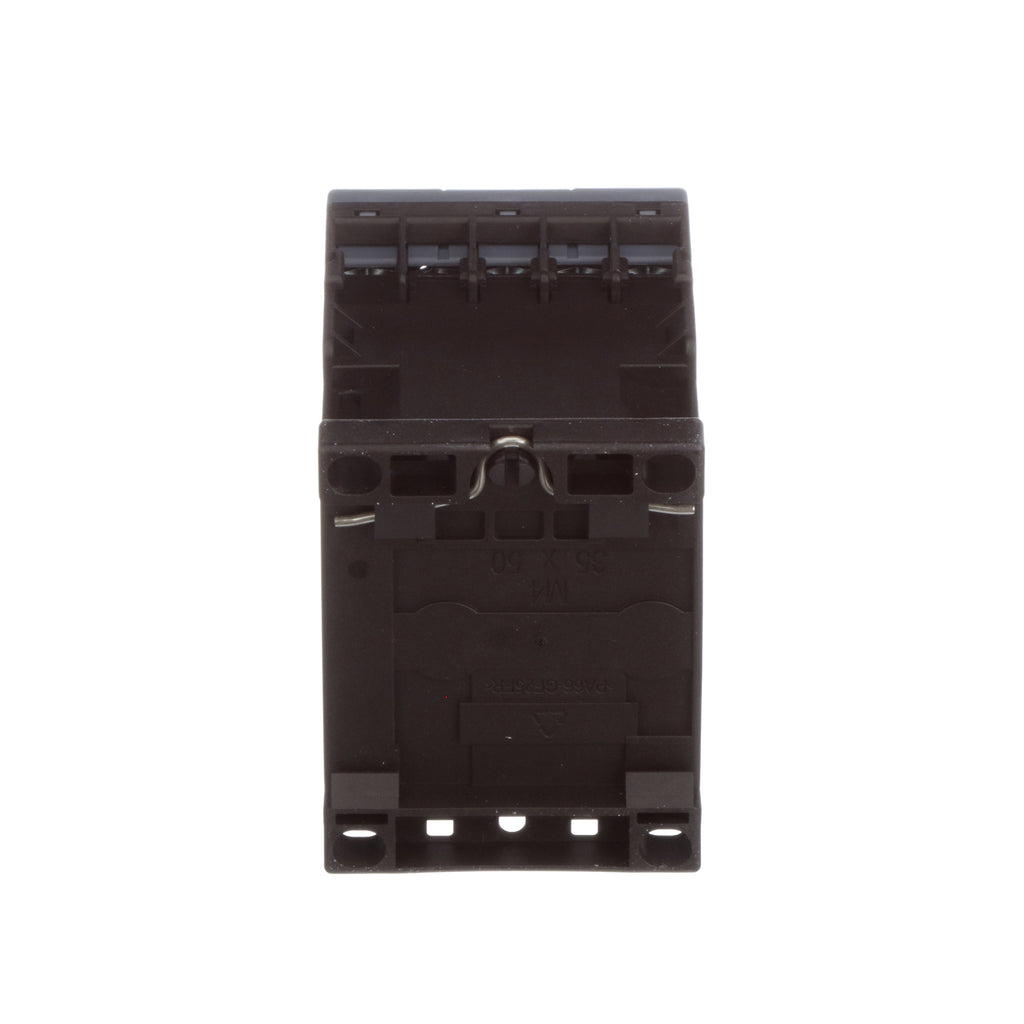

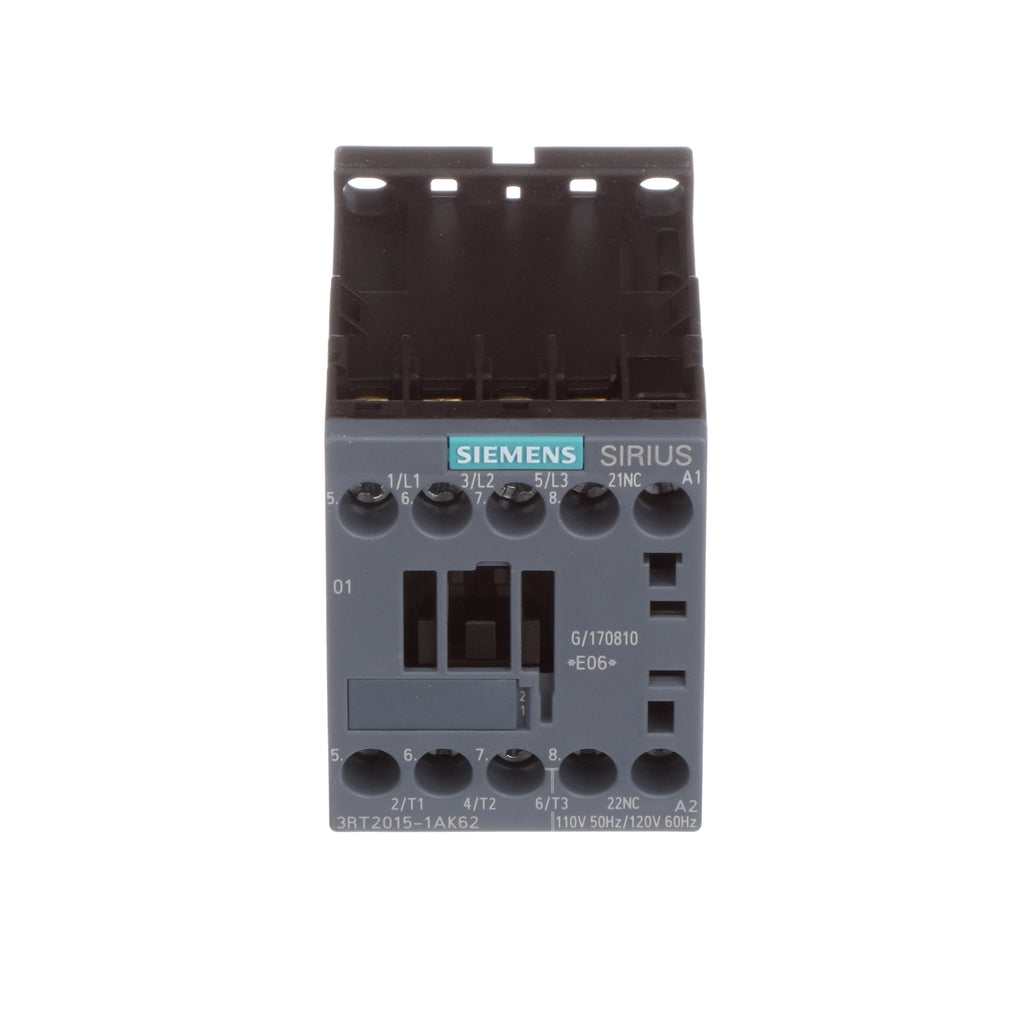

3RT2015-1AK62 is a Siemens SIRIUS 3-pole IEC contactor designed for motor control applications, featuring a 110/120VAC coil and 1NC auxiliary contact.This contactor is rated for AC-3 duty, with a maximum load current of 7A and a power rating of 3kW at 400V. It is built in the S00 frame size and features screw terminal connections for secure wiring. The device is suitable for DIN rail, snap-on, or threaded mounting and offers reliable switching for industrial motor loads.
- Manufacturer: Siemens
- Series: SIRIUS 3RT20
- Frame Size: S00
- Number of Poles: 3
- Maximum Load Current: 7A
- Coil Voltage: 110VAC 50Hz / 120VAC 60Hz
- Power Rating: 3kW at 400V
- Auxiliary Contacts: 1NC
- Mounting Type: DIN Rail, Snap-On, Threaded
- Terminal Type: Screw Terminal
- Operating Frequency: 50/60 Hz
- Operating Temperature: -25 to 60°C
- Enclosure Type: IP20
- Operating Cycles: 30,000,000
- Standards: IEC 60947
Specifications
- Part Number: 3RT20151AK62
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
Product Data
- UPC : 066264390882
- GTIN : 00662643908824
- Country of Origin : Germany
- Dimensions : 2.421 x 1.969 x 3.051 inch
- Weight : 0.511 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
